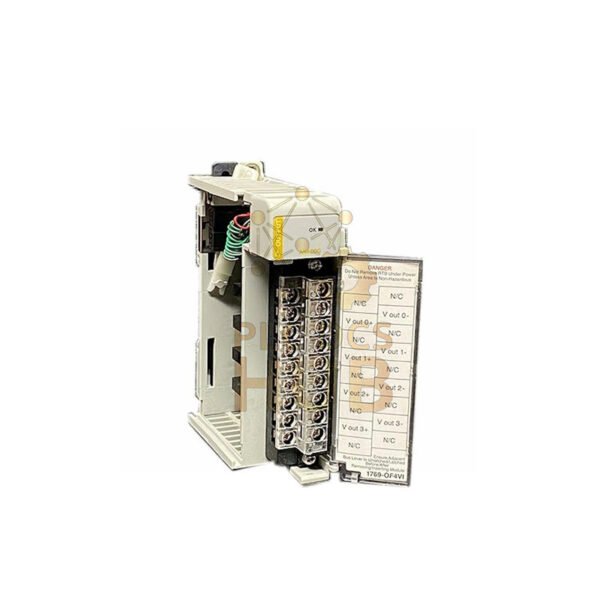

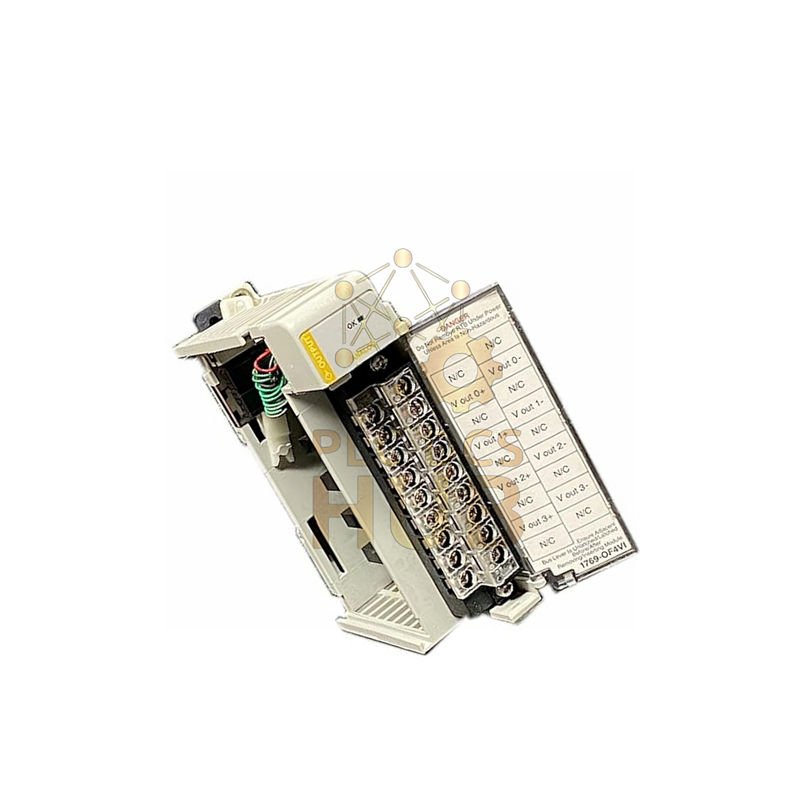

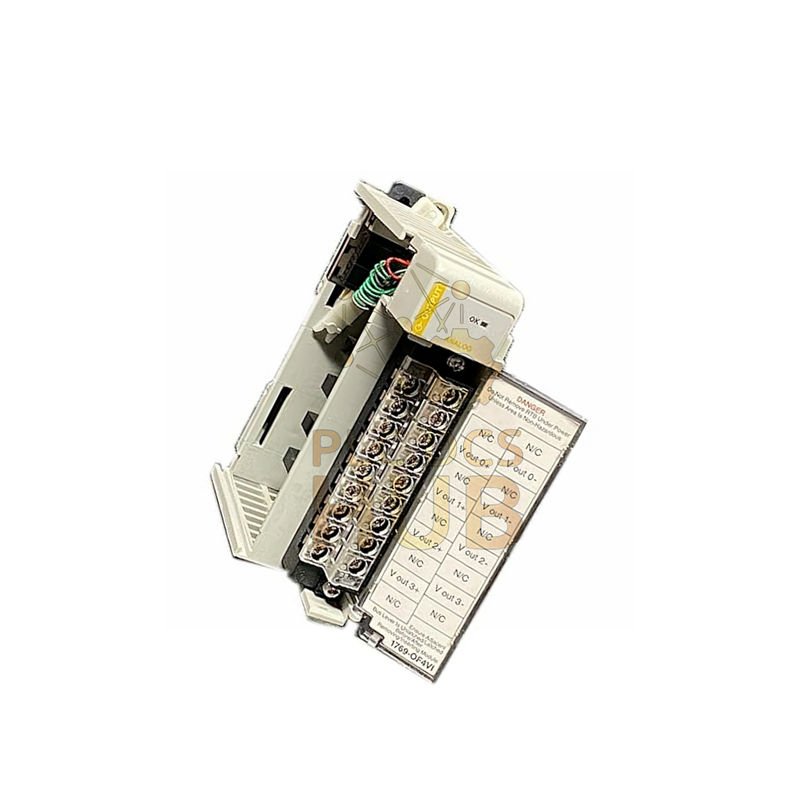

Allen-Bradley 1769-OF4VI CompactLogix Isolated Analog Output Module
The Allen-Bradley 1769-OF4VI provides precision isolated voltage output control for demanding industrial automation applications. This module ensures accurate signal transmission in electrically noisy environments.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OF4VI
- Output Type: 4-channel isolated voltage output module
- Voltage Range: 0-10V DC with 0-10.5V full scale capability
- Resolution: 15-bit (32,768 counts), 330μV/bit
- Accuracy: ±0.5% of full scale at 25°C
- Isolation: Individual channel-to-channel and channel-to-bus isolation
- Update Rate: 120ms maximum conversion rate per channel
- Output Impedance: <0.1Ω for stable voltage output
- Load Capacity: 5mA maximum output current, ≤2kΩ resistive load
- Power Consumption: 165mA @ 5V DC, 2.0W heat dissipation
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Short-Circuit Protection: 42mA maximum short-circuit current
- Response Time: Power-up: <0.4ms, Power-down: <21ms
- Ripple & Noise: ±0.05% from 0 to 50kHz
- Temperature Drift: ±0.0086% per °C
- MTBF Rating: 700,000 hours at 40°C operating temperature
Compatible Systems
- Works seamlessly with 1769 CompactLogix controller systems
- Compatible with MicroLogix 1500 using expansion adapters
- Integrates with DeviceNet networks via 1769-ADN communication adapter
- Connects to EtherNet/IP systems through 1769-AENTR interface
- Supports Studio 5000 programming environment for configuration
Packaging & Shipping
- Factory-sealed package includes one 1769-OF4VI module
- Complete installation and specification documentation included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL available
- 12-month warranty covering manufacturing defects
Related Products Comparison
- 1769-L33ERM: CompactLogix controller with motion control capabilities
- 1769-OW16: 16-point relay output module for switching applications
