Description

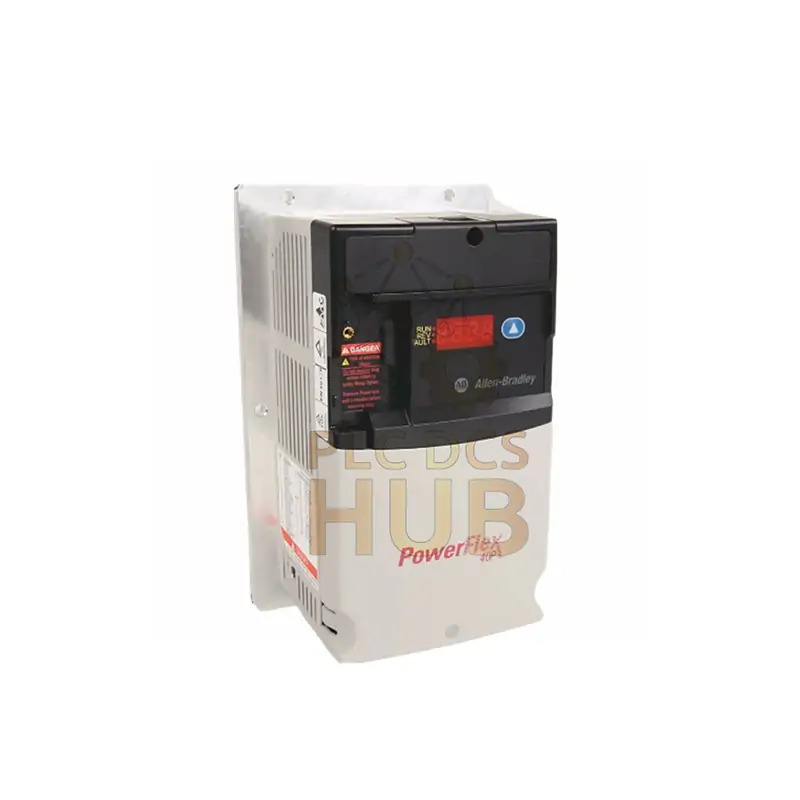

Allen-Bradley 22D-B033H204 PowerFlex Drive – 10HP Industrial Control
Built for tough jobs: The 22D-B033H204 delivers 33A power for 10HP motors with advanced sensorless vector control in a space-saving plate mount design.
Top Reasons to Choose This Drive
- ???? Industrial strength: 33A output (10HP) with 150% overload capacity
- ????️ Smart control: Sensorless vector technology for precise speed/torque
- ???? Space saver: Compact plate mount (75% smaller than enclosed drives)
- ???? Easy setup: Built-in RS485 for network connections
- ⚡ Power protection: Handles brownouts and voltage drops
Technical Specifications
- Model: 22D-B033H204 (Frame C)
- Power: 240V AC 3-phase (208-264V range)
- Output: 33A continuous, 49.5A peak
- Frequency: 0-500Hz adjustable
- Mounting: Plate mount (IP20/NEMA Open)
- Braking: Built-in transistor for dynamic braking
- Communication: RS485 multi-drop ready
- Dimensions: Compact design for tight spaces
Package Includes
- 22D-B033H204 drive unit
- Mounting plate
- Quick-start documentation
Your Protection
We stand behind our products with 12 months of coverage for peace of mind.
Fast Delivery Options
Shipped quickly via FedEx, UPS or DHL with tracking.
Expert Answers
- Can I upgrade to NEMA 1 protection?
Yes, with optional IP30 conduit box. - Does this support encoder feedback?
Yes, for closed-loop control. - What’s the warranty on brake resistors?
Resistors sold separately have own warranty. - Can I daisy-chain multiple drives?
Yes, via RS485 network. - Is programming software free?
PC tools available at extra cost.
Compare With Higher-Capacity Models
- 22D-E9P9H204 – NEMA 4X waterproof 20HP version
- 22D-E9P9N104 – Standard enclosure 20HP model
