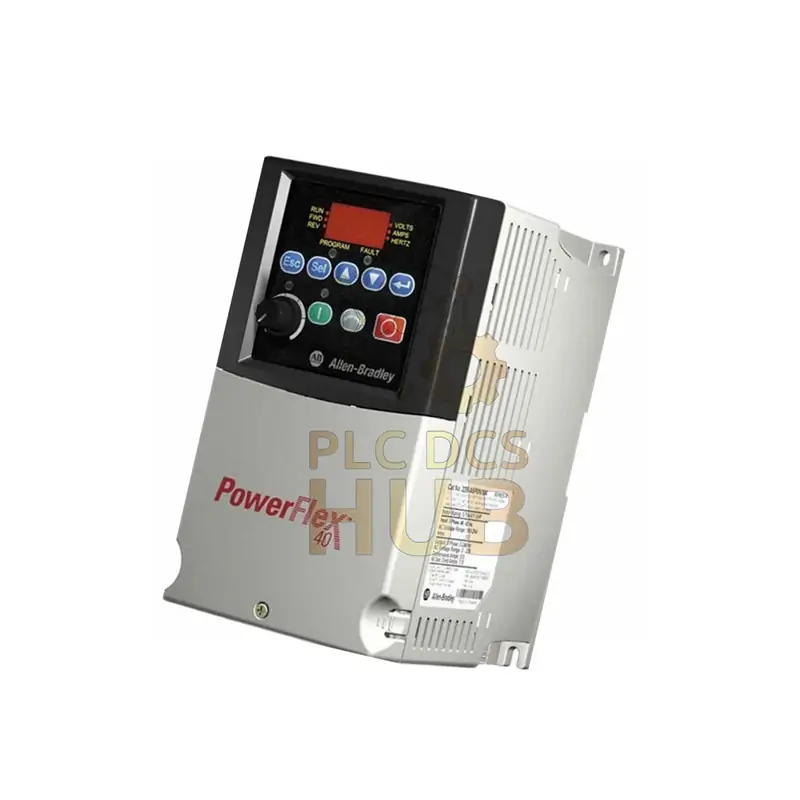

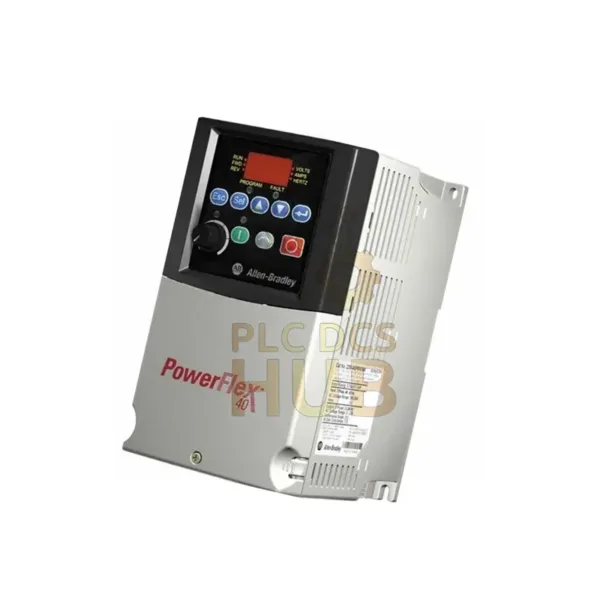

Allen-Bradley PowerFlex 40 Drive – 22B-D2P3H204 (1HP Compact)
The 22B-D2P3H204 packs big power in a small space. Perfect when panel space is tight. Controls motors up to 1HP with 480V 3-phase power.
Quick setup guide: Download Manual Here
Why You’ll Love This Drive
- Space-saving design (no heatsink needed)
- Easy keypad control with simple menus
- Works with 342-528V AC power range
- 2.3A output for 1HP motors
- Built-in RS-485 for remote control
Complete Specifications
| Model | 22B-D2P3H204 |
| Power | 1HP (0.75kW) |
| Voltage | 480V AC 3-phase |
| Current | 2.3A output / 3.2A input |
| Size | Compact IP20 enclosure |
| Protection | 6A fuse required |
| Control | 0-10V analog input |
| Weight | 1.8 kg (4 lbs) |
Common Questions
1. How small is this drive?
About 30% smaller than standard 1HP drives.
2. Can I add a cooling fan?
Not needed – designed to run without one.
3. What fuse should I use?
6A time-delay fuse recommended.
4. Is the keypad removable?
Yes, can be removed after setup.
5. Can it control pump speed?
Yes, perfect for pumps and fans.
What’s in the Box
- 22B-D2P3H204 drive unit
- Mounting plate
- Quick start guide
Order Today
12-month warranty included. Ships same day via FedEx, UPS or DHL.
