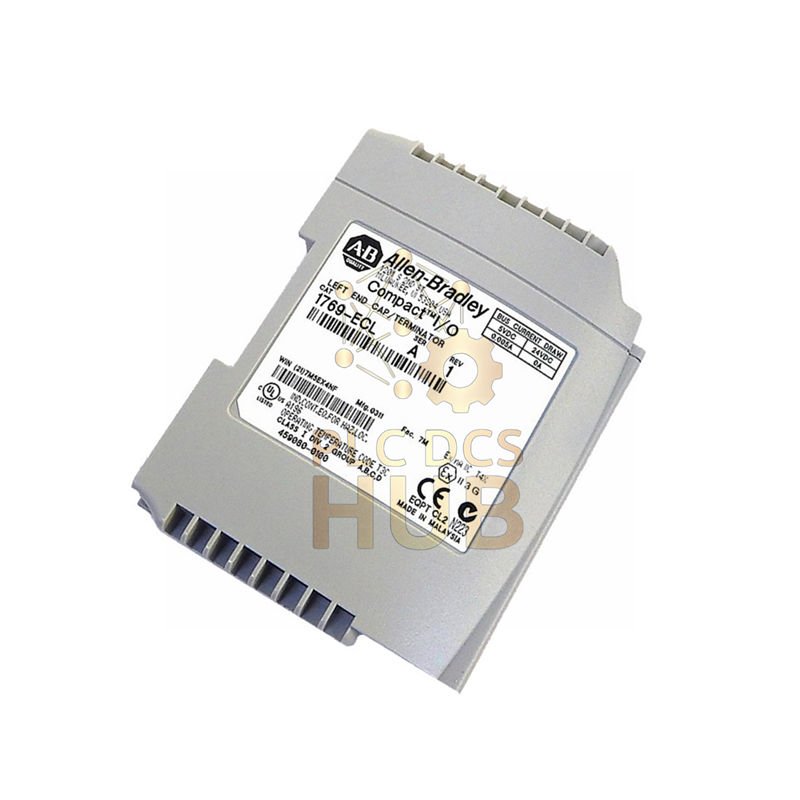

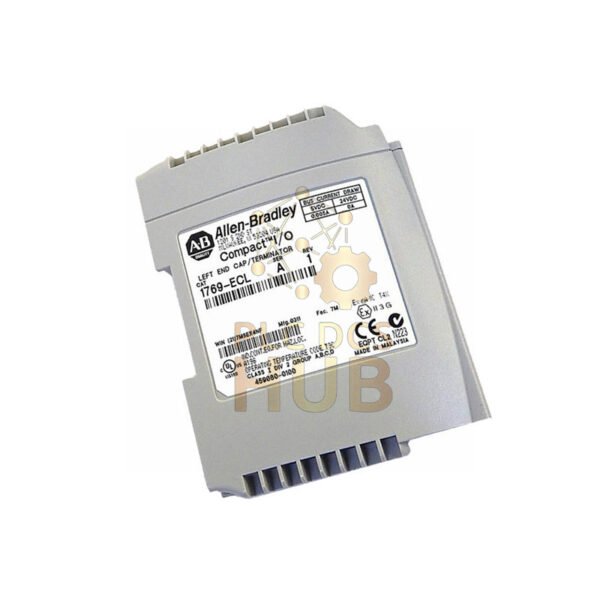

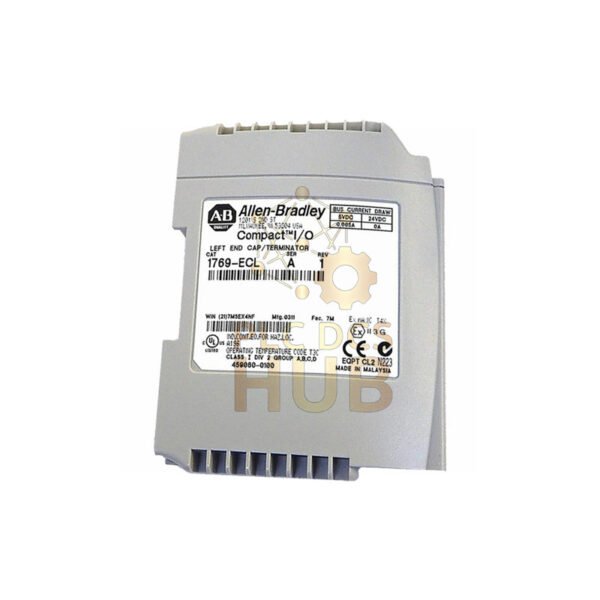

Allen-Bradley 1769-ECL: Essential Left End Cap for CompactLogix Systems
The 1769-ECL from Allen-Bradley/Rockwell Automation provides critical termination for CompactLogix communication buses. This left end cap ensures proper system operation and signal integrity in industrial control applications.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-ECL
- Product Type: Left End Cap/Terminator
- Compatibility: 1769 Compact I/O controllers, MicroLogix 1500 systems
- Bus Current Draw: 5 mA maximum at 5V DC
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Humidity Range: 5-95% non-condensing
- Vibration Resistance: 5g at 10-500 Hz operating
- Shock Resistance: 20g operating, 30-40g non-operating
- Altitude Rating: Up to 2000 meters (6562 feet) operation
- Dimensions: 87 × 15 × 118 mm (3.43 × 0.59 × 4.65 in)
- Weight: 0.13 kg (0.286 lbs)
- Enclosure Type: Open style design
- Emissions Rating: Group 1, Class A
- ESD Immunity: 8 kV air discharge protection
- Temperature Code: T3C (North American standard)
Package Contents
- 1769-ECL Left End Cap/Terminator
- Installation instructions document
- Required mounting components
Frequently Asked Questions
- Where does this end cap install on the system? It mounts on the left end of the 1769 controller communication bus
- Is this compatible with MicroLogix 1500 systems? Yes, it works with both CompactLogix and MicroLogix 1500
- What is the purpose of this termination cap? It ensures proper bus termination for signal integrity
- Can I use this on the right side of the controller? No, this is specifically designed for left end termination
- What shipping methods are available? We ship worldwide via FedEx, UPS, and DHL express services
Warranty: This product includes a 12-month warranty against manufacturing defects.
