Allen-Bradley POINT I/O 1734-IM4 AC Input Module | 4-Channel In Stock

Description

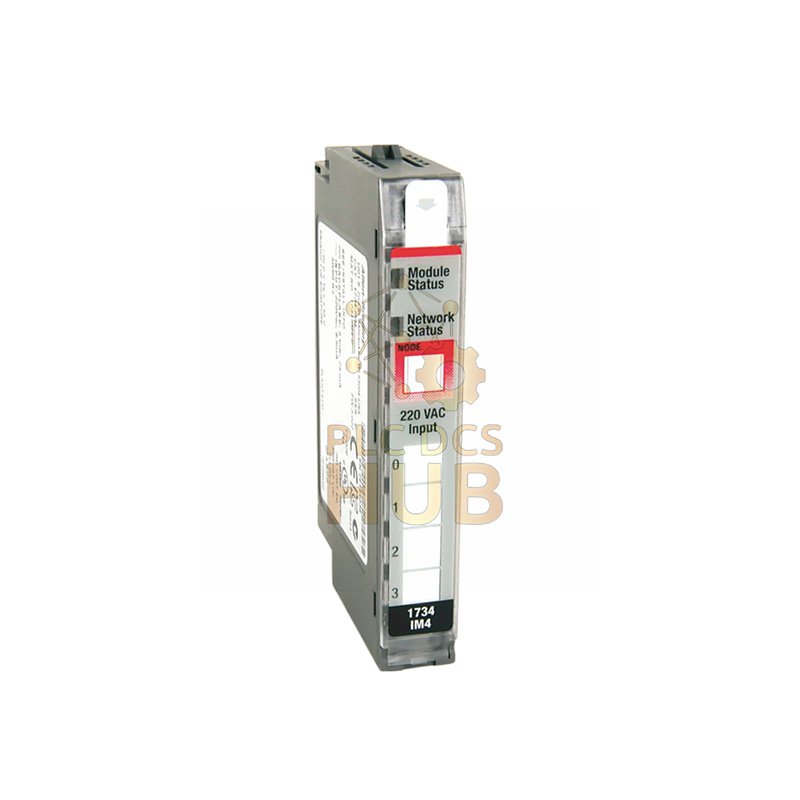

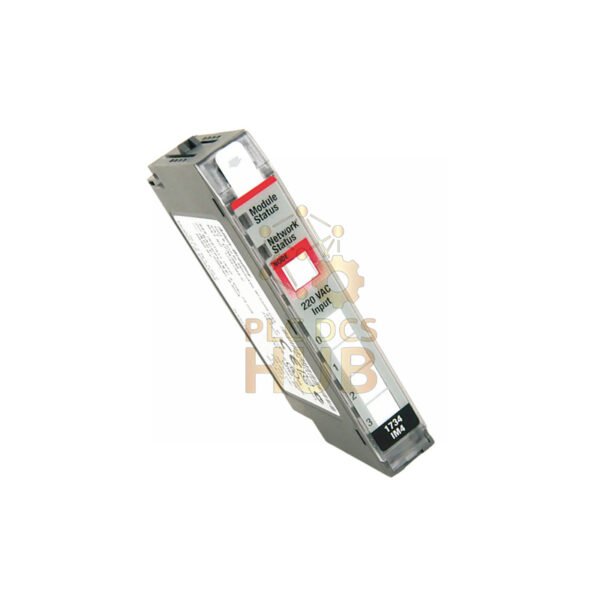

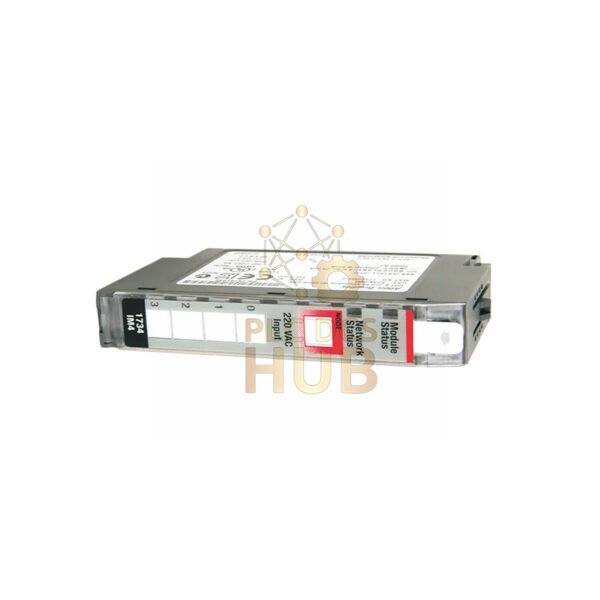

Allen-Bradley 1734-IM4 | High-Voltage AC Input Module

Get a quote today! This robust AC input module includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.

Detailed Technical Specifications

• Brand & Model: Allen-Bradley 1734-IM4
• Series: POINT I/O Digital Module
• Module Type: AC Input Module
• Input Channels: 4 non-isolated sink inputs
• Voltage Rating: 220V AC nominal (159-264V AC range)
• Frequency: 50/60 Hz operation
• On-State Current: 6.2-10.2 mA (depending on voltage)
• Input Impedance: 22.3 kΩ nominal
• Response Time: 20 ms hardware + 1-65 ms programmable filter
• Isolation Voltage: 240V continuous (field to system)
• Power Dissipation: 0.8W maximum @ 264V AC
• POINTBus Current: 75 mA @ 5V DC
• Key Switch Position: 8
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Wire Size: 22-14 AWG solid or stranded copper
• Dimensions: 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in)
• Weight: 30.9 g (1.09 oz)

Installation & Compatibility

The 1734-IM4 mounts on standard 35mm DIN rail. It requires a POINT I/O communication adapter. It works with Allen-Bradley ControlLogix and CompactLogix controllers. Set keyswitch to position 8 during installation.
