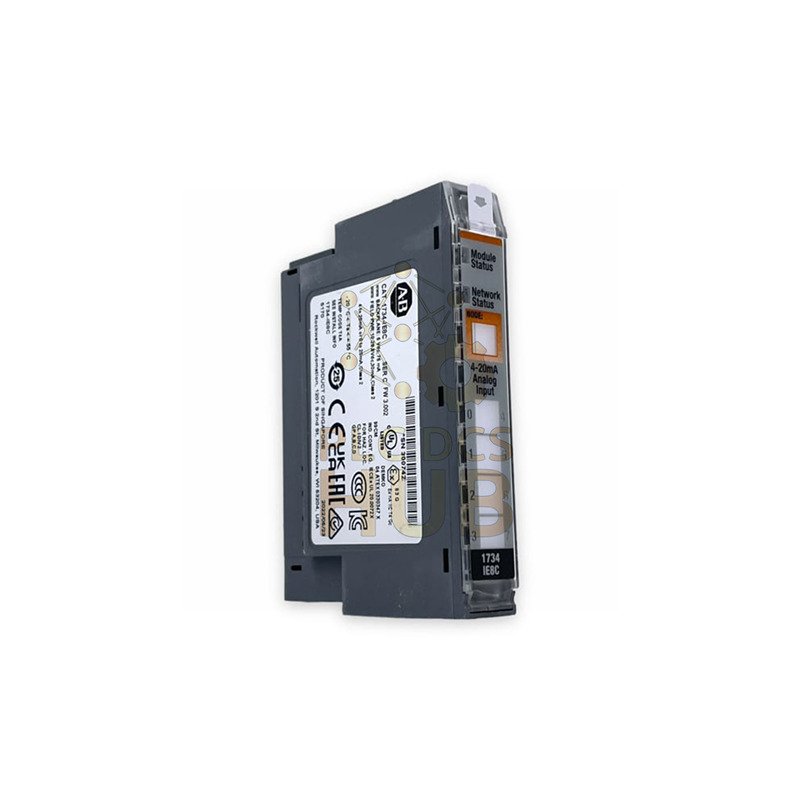

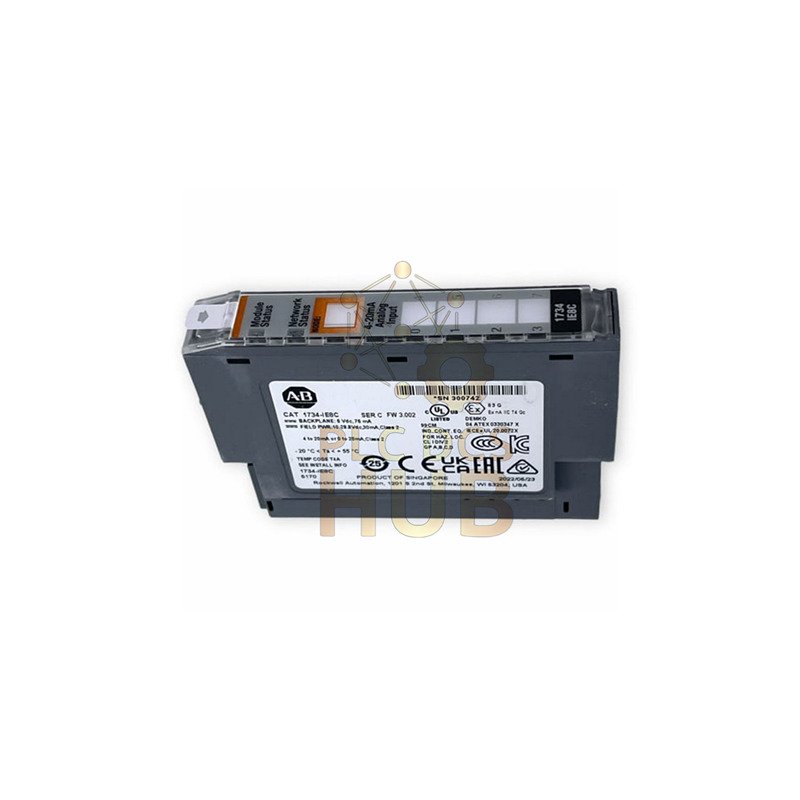

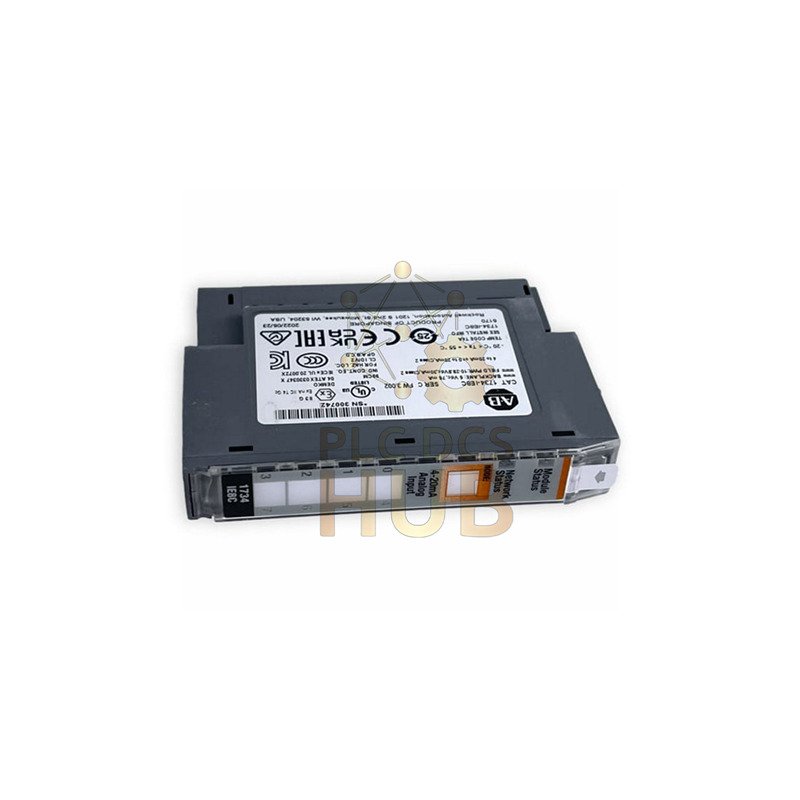

Allen-Bradley 1734-IE8C | 8-Channel Current Input Module
Get a quote today! This high-density analog module includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1734-IE8C
- Series: POINT I/O Analog Module
- Input Type: Current (non-isolated, single-ended)
- Number of Channels: 8
- Signal Ranges: 0-20 mA, 4-20 mA (per channel)
- Resolution: 16-bit (0.32 μA per count)
- Accuracy: ±0.1% of full scale @ 25°C
- Input Impedance: 60 Ohms
- Conversion Type: Delta-Sigma
- Data Format: Signed Integer (-32768 to +32767)
- Power Consumption: 0.6W @ 28.8V DC
- Thermal Dissipation: 2.0 BTU/hour
- Isolation Voltage: 50V continuous
- Terminal Base: Requires 1734-TB3 or 1734-TB3S
Installation & Compatibility
This module mounts on standard 35mm DIN rail. It requires a POINT I/O communication adapter (like 1734-AENT) to connect to your control system. It works with Allen-Bradley Logix controllers including CompactLogix and ControlLogix.
Download Complete Documentation
Get the full installation and configuration guide:
- Detailed wiring diagrams for all 8 channels
- Step-by-step configuration instructions
- Application examples and best practices
- Troubleshooting guide and diagnostic information
