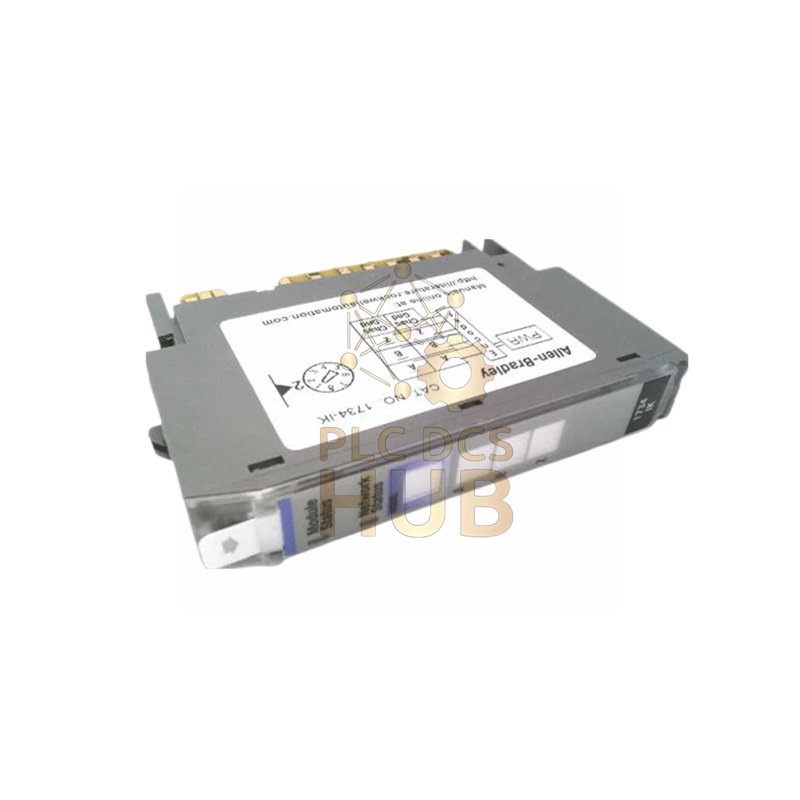

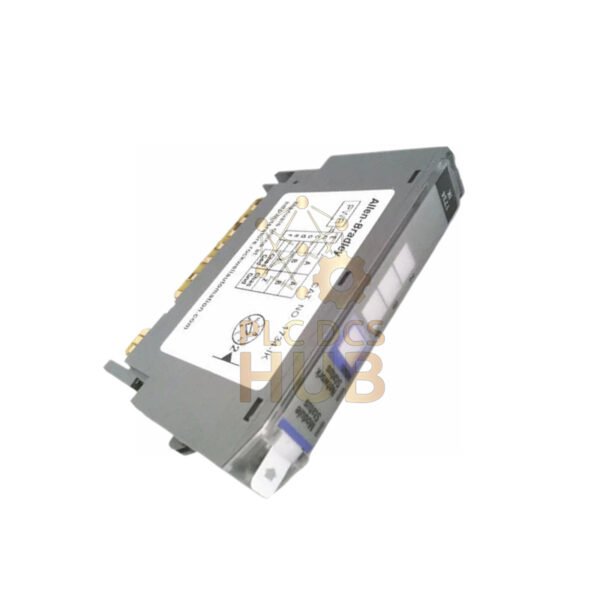

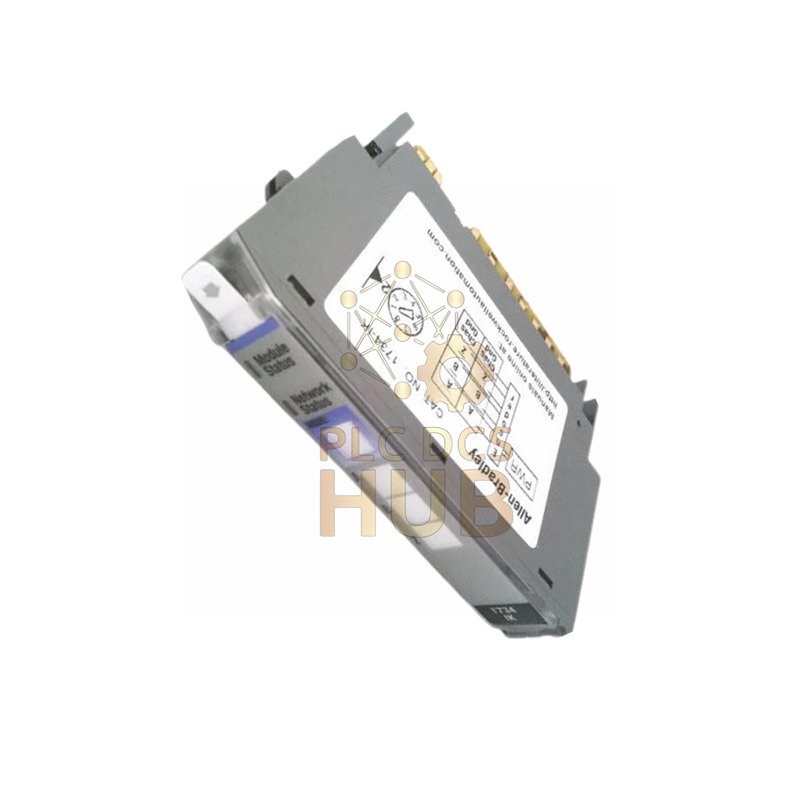

Allen-Bradley 1734-IK | Versatile Encoder Interface Module
Get a quote today! This flexible encoder module includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1734-IK is a robust encoder interface module for industrial applications. It connects incremental encoders to your control system. It handles high-speed counting up to 1 MHz for precise motion tracking.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1734-IK
- Series: POINT I/O Encoder Module
- Module Type: Incremental Encoder Interface
- Input Voltage: 15-24V DC (24V DC nominal)
- Input Current: 6.1 mA @ 15V DC, 10.2 mA @ 24V DC
- Max Frequency: 1 MHz (1,000,000 counts per second)
- Count Range: 24-bit (0 to 16,777,215 counts)
- Input Channels: A, A-return, B, B-return, Z, Z-return
- On-State Current: ≥5 mA
- On-State Voltage: ≤12.5V DC
- Off-State Current: ≤0.250 mA
- Off-State Voltage: ≤1.8V DC
- Power Dissipation: 1.5W at rated load
- Key Switch Position: 2
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S
- Dimensions: 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in)
- Weight: 36g (0.08 lbs)
Installation & Compatibility
The 1734-IK mounts easily on standard 35mm DIN rail. It requires a POINT I/O communication adapter for network connectivity. It works seamlessly with Allen-Bradley ControlLogix and CompactLogix controllers. Use 22-14 AWG wire for all connections.
Frequently Asked Questions
Q1: What types of devices can I connect to this module?
A1: You can connect incremental encoders, pulse generators, and even mechanical limit switches.
Q2: What is the advantage of the wider voltage range?
A2: The 15-24V DC range allows compatibility with a broader variety of industrial sensors and encoders.
Q3: Can this module handle differential encoder signals?
A3: Yes, it supports both differential (A/A-, B/B-, Z/Z-) and single-ended encoder connections.
Q4: How is the count information presented to the controller?
A4: The count is presented as a 24-bit binary number (0-16,777,215) in a 32-bit long word format.
Q5: What do the status indicators show?
A5: Green/red LEDs show module and network status, while yellow LEDs indicate activity on A, B, and Z channels.
