Description

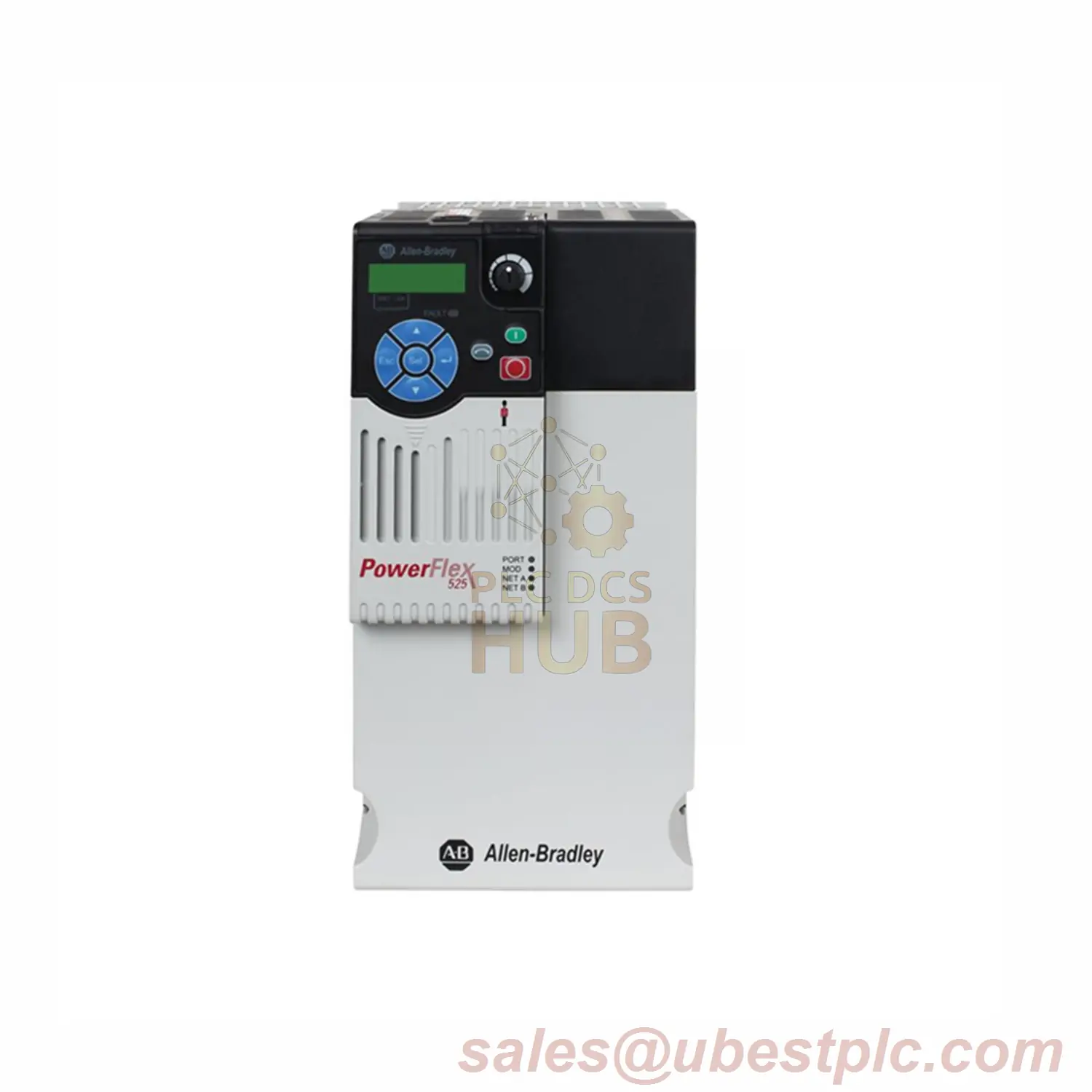

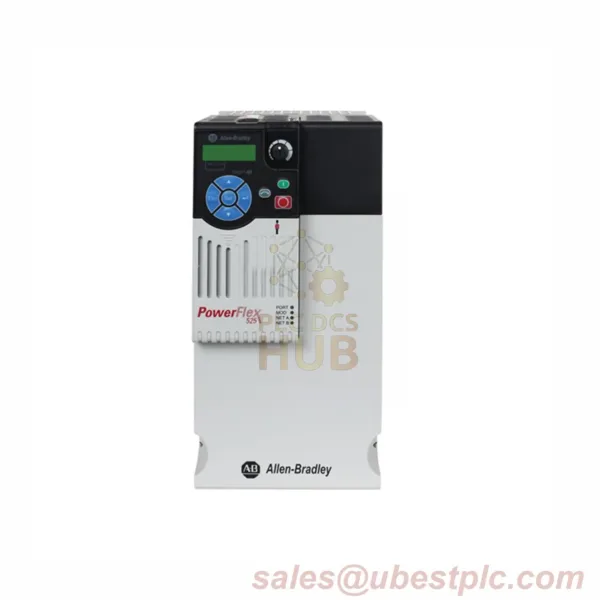

Allen-Bradley 25B-D013N114 PowerFlex 525 Drive
Industrial-grade 5.5kW VFD with built-in EMC filter. The 25B-D013N114 delivers precise motor control for 380-480V AC systems.
Why Choose This Drive?
- 13A output handles 7.5HP motors
- Built-in EtherNet/IP and RS485 ports
- Works with permanent magnet motors
- Includes EMC filter as standard
- Safe-Torque Off (STO) safety feature
Technical Specifications
- Brand: Allen-Bradley
- Model: 25B-D013N114
- Input: 323-528V AC, 3-phase
- Output: 0-460V AC, 13A
- Power: 5.5kW (7.5HP)
- Frequency: 0-500Hz adjustable
- Mounting: Panel or DIN rail
- Size: 220x109x184mm
- Weight: 2.3kg
- Protection: IP20 rating
Control Features
- 7 digital inputs
- 2 analog inputs (0-10V/4-20mA)
- USB programming port
- 4 programmable acceleration curves
Expert FAQs
- Q: Does this work with single-phase motors?
A: No, only 3-phase motors. - Q: Can I add an encoder later?
A: Yes, optional encoder card available. - Q: What’s the operating temperature range?
A: -20°C to +50°C. - Q: Is the EMC filter removable?
A: No, it’s built into this model. - Q: How many I/O points does it have?
A: 7 digital inputs, 4 outputs.
What’s Included
- 25B-D013N114 drive unit
- Installation guide
- Mounting brackets
Warranty
12-month coverage for all parts.
Shipping Options
FedEx, UPS, or DHL express shipping.
Compare With
- 25B-D4P0N114 – Higher power model
- 25B-D6P0N104 – 6.0kW version
