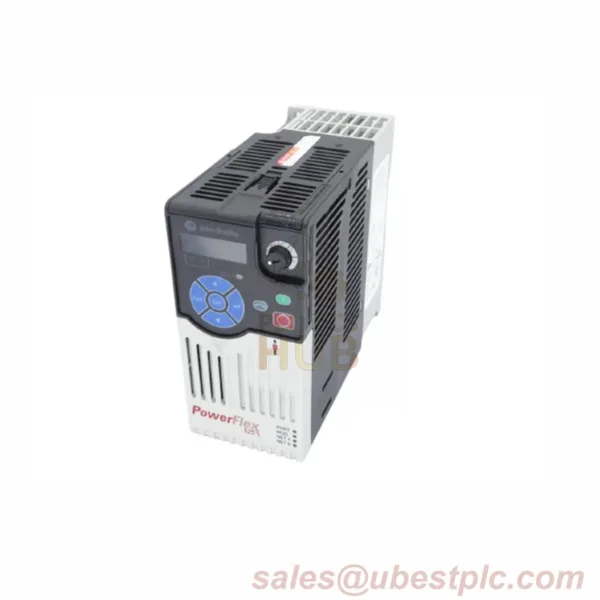

Allen-Bradley PowerFlex525 AC Drive 25B-D4P0N104

Description

Allen-Bradley 25B-D4P0N104 PowerFlex 525 Drive – 2HP Compact VFD

Small Size, Big Performance

The Allen-Bradley 25B-D4P0N104 packs 2HP (1.5kW) of motor control into a compact frame. Perfect for tight spaces with 323-528V AC input. Easy to install and use right out of the box.

Key Benefits

• 2HP (1.5kW) motor control
• Compact Frame A design
• Works with 323-528V AC, 3-phase
• Built-in Ethernet/IP for easy connection
• Simple DIN rail or panel mounting
• Includes LCD keypad for quick setup

Detailed Specifications

• Model: 25B-D4P0N104 (PowerFlex 525)
• Input: 323-528V AC, 3-phase, 5.7A
• Output: 0-460V, 4A, 1.5kW (2HP)
• Frequency: 0-500Hz programmable
• Control: V/Hz, Sensorless Vector
• I/O: 7 DI, 2 DO, 2 AI, 1 AO
• Mounting: DIN rail or panel (IP20)
• Size: 6.77″ x 2.83″ x 5.98″
• Weight: 3.3 lbs (1.5 kg)
• Cooling: Fanless design

Common Questions

1. What’s the smallest motor this can run?
   Controls motors down to fractional HP sizes.
2. Can I mount multiple drives side-by-side?
   Yes, supports zero stacking to save space.
3. Does it work with single-phase power?
   No, requires 3-phase 323-528V AC input.
4. How do I program it?
   Use the built-in keypad or connect via Ethernet/USB.
5. Is braking included?
   Yes, features standard IGBT braking.

Order & Support

• Fast shipping via FedEx, UPS, or DHL
• 12-month warranty included

Need setup help? Download the full PowerFlex 525 manual here.
