Description

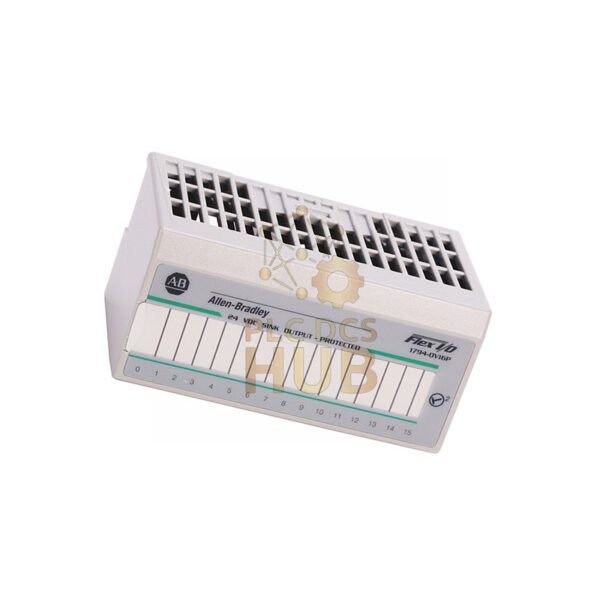

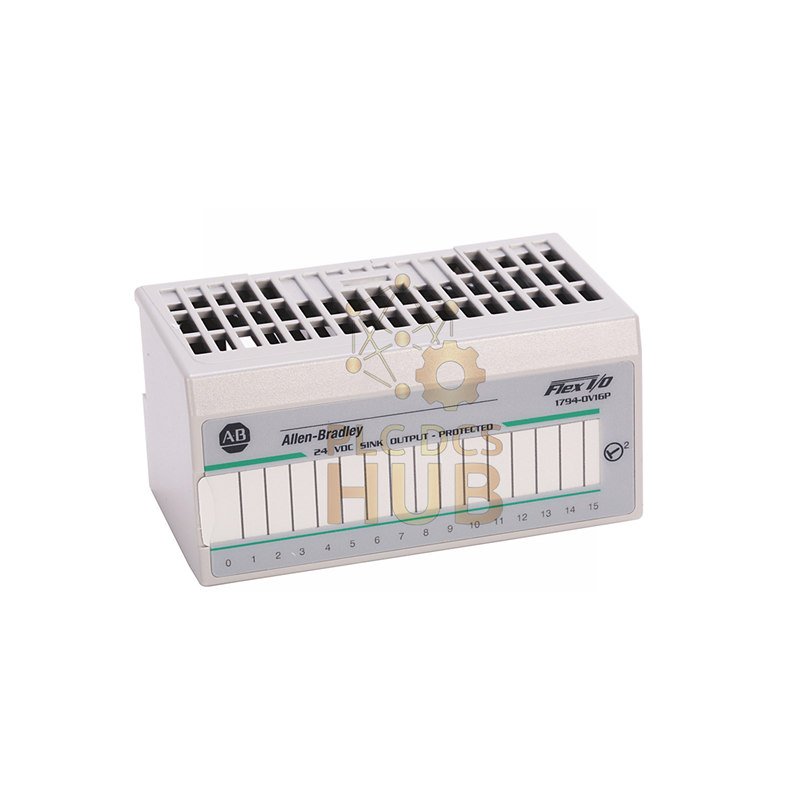

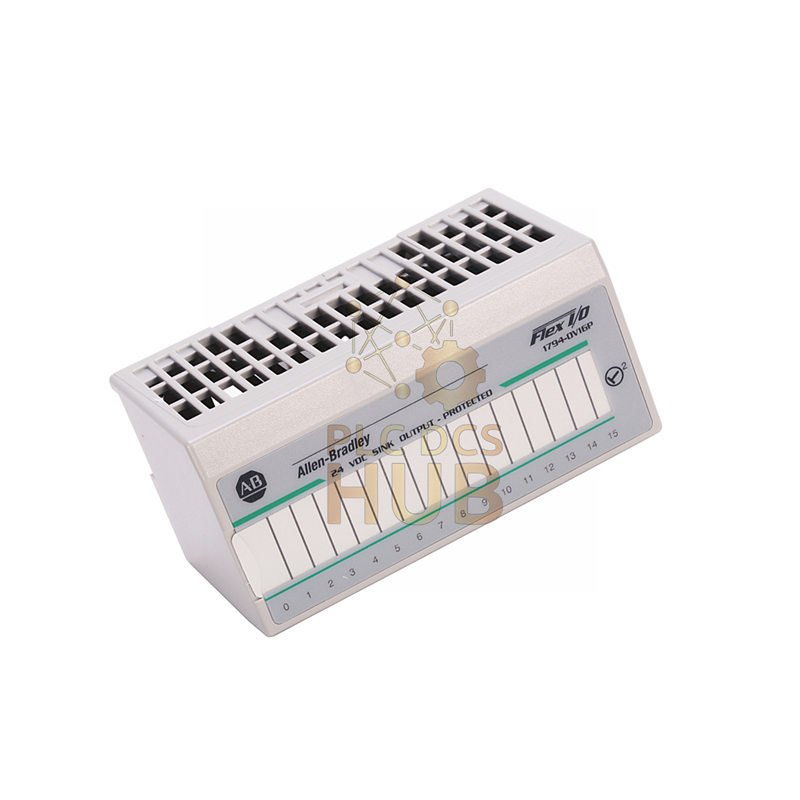

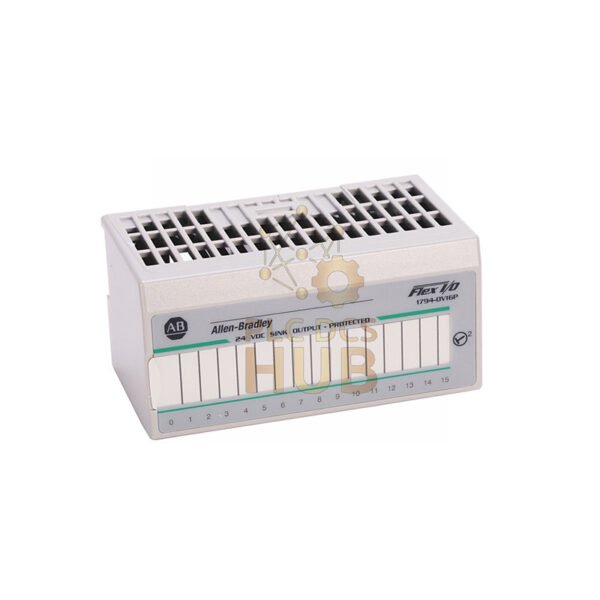

Allen-Bradley 1794-OV16P Flex I/O Digital Sinking Output Module | 16-Channel
The Allen-Bradley 1794-OV16P delivers reliable DC sinking output control for industrial automation systems. This protected output module from Rockwell Automation ensures safe operation in demanding environments.
Technical Specifications & Performance Data
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1794-OV16P
- Output Type: 16 Protected Sinking Outputs
- Rated Voltage: 24V DC Nominal (10-31.2V DC Range)
- Current Capacity: 500mA per Channel, 8A Module Maximum
- Voltage Drop: 0.2V DC Maximum On-state
- Leakage Current: 0.5mA Maximum Off-state
- Switching Speed: 0.5ms Off-to-On, 1ms On-to-Off
- Protection: Electronic fault protection with auto-recovery
- Power Consumption: 4.2W Maximum @ 31.2V DC
- Thermal Dissipation: 14.3 BTU/hour Maximum
- FlexBus Current: 80mA @ 5V DC
Protection Features & Environmental Ratings
- Electronic protection against short-circuit conditions
- Automatic thermal shutdown for over-temperature protection
- Overload protection with auto-recovery after fault clearance
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
- 5-95% non-condensing humidity rating
- Vibration resistance: 5g @ 10-500 Hz operating
- 30g shock tolerance for rugged industrial environments
Packaging & Shipping Information
- Includes one 1794-OV16P digital output module
- Professional protective packaging ensures safe delivery
- Global express shipping via FedEx, UPS, and DHL
- 12-month quality warranty against manufacturing defects
Alternative Module Comparisons
- For digital input applications, consider the 1794-IB16
- The 1785-L26B offers different processor capabilities for complete system integration
