Description

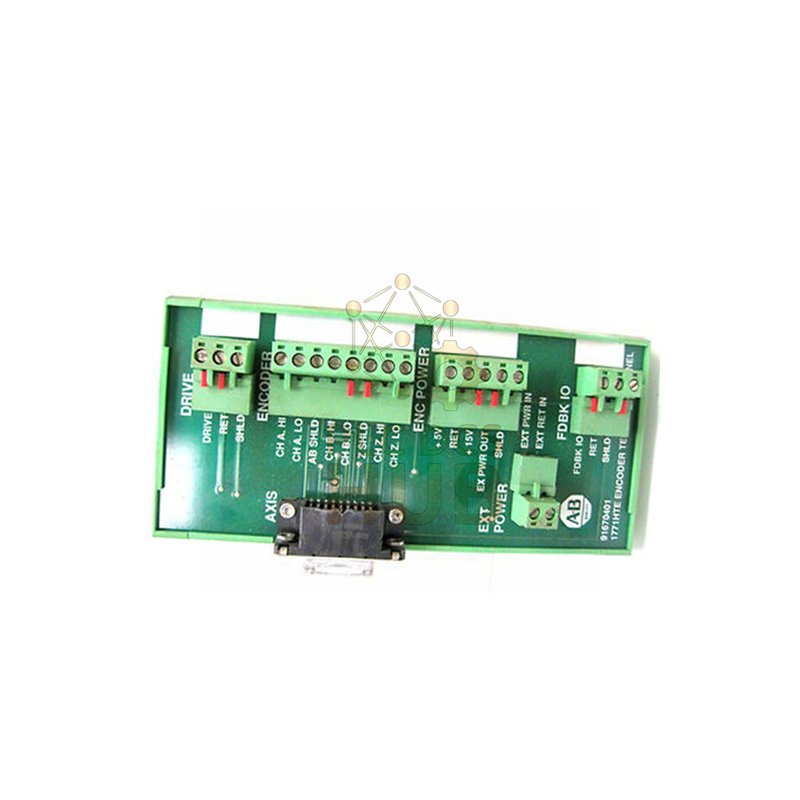

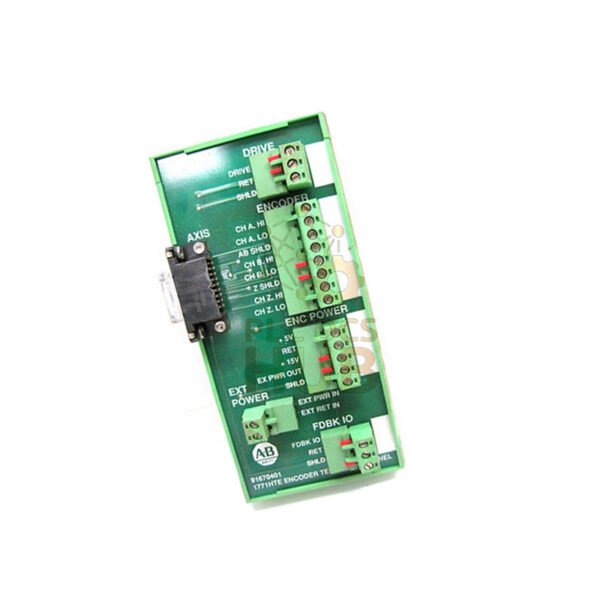

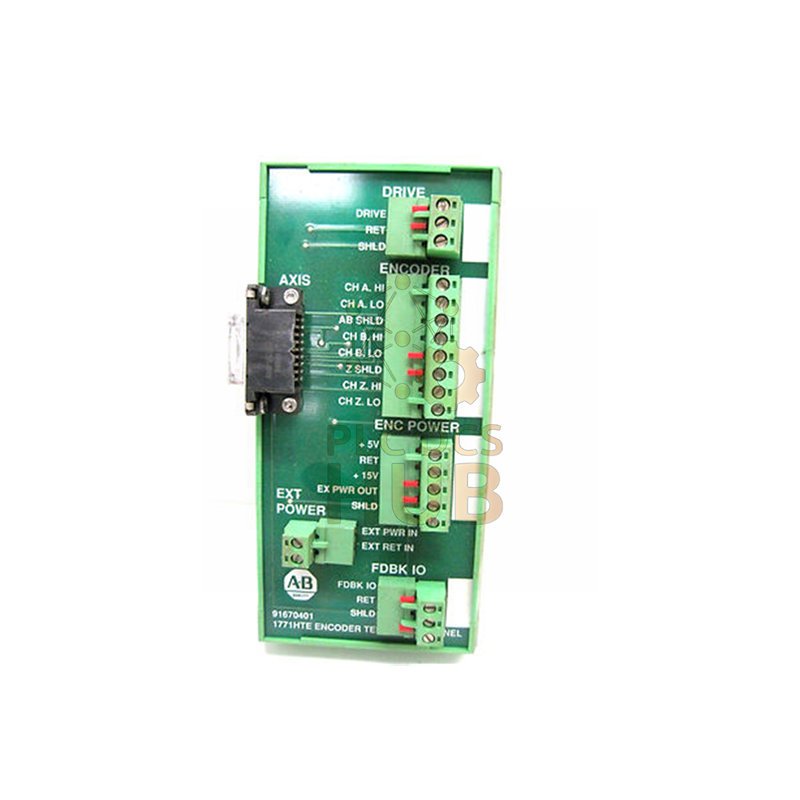

Allen-Bradley 1771-HTE Encoder Termination Module
The Allen-Bradley 1771-HTE connects encoders and resolvers to your PLC-5 system. This compact module ensures clean signal transmission between field devices and controllers. Easy DIN rail mounting makes installation simple and space-efficient.
Technical Specifications
Brand: Allen-Bradley
Model: 1771-HTE
Series: PLC-5
Type: Encoder Termination Module
Mounting: DIN-type rail
Power Supply: 24V DC
Cable Type: 16GA, twisted pair, shielded
Max Cable to Controller: 10 feet (3m)
Max Cable Length: 85 feet
With External Power: 90 feet for encoders/resolvers
Without External Power: 40 feet for +5V encoders
Dimensions: 6.25 x 3.0 inches
Connectors: Pluggable type
Wiring: Through termination panels
Compatibility: PLC-5 systems
Supported Devices
Works with various encoder types:
• +5V DC encoders
• +15V DC encoders
• Resolver feedback devices
• Various industrial encoders
• Motion feedback systems
Warranty & Shipping
We provide a 12-month warranty on this product
We ship worldwide using FedEx, UPS, and DHL
Frequently Asked Questions
- Q: What is the maximum cable length?
A: With external power, it supports up to 90 feet for encoders and resolvers. - Q: What power supply does it need?
A: It requires a 24V DC power supply for operation. - Q: Can I mount it on a standard DIN rail?
A: Yes, it’s designed for DIN-type rail mounting. - Q: What types of encoders work with it?
A: It works with +5V DC, +15V DC encoders, and resolvers. - Q: Is shielded cable required?
A: Yes, use 16-gauge twisted pair shielded cable for best performance.
Compare With Other Products
The 1771-HTE is a termination module, while other 1771 products like the 1771-HS3A Servo Controller or 1771-HS3CR Servo Controller handle motion control functions.
