Description

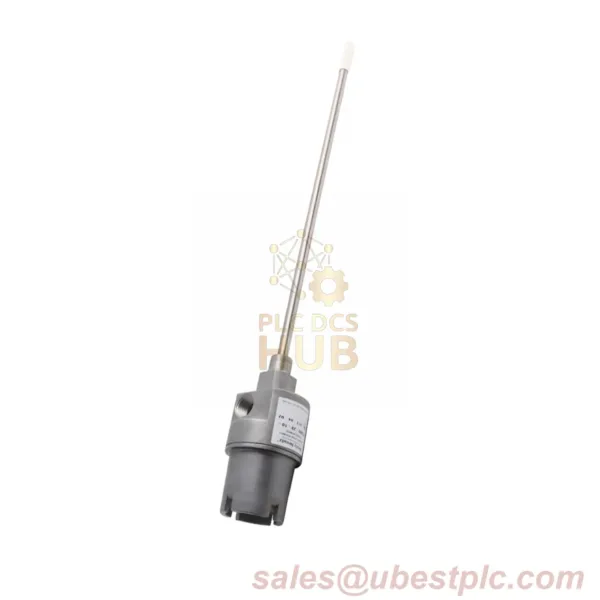

21000-16-10-15-029-03-02: Compact Hazardous Area Monitoring System
The Bently Nevada 21000-16-10-15-029-03-02 features a 2.9″ (029) penetration depth, specifically engineered for tight-clearance installations requiring CSA-certified explosion-proof protection. This configuration excels in API 670-compliant systems where space optimization is critical.
Ordering Code Breakdown
- 16: 3300 XL 8mm High-Temp Probe (-50°C to +150°C)
- 10: 1.0m Teflon-Jacketed Cable
- 15: 38mm Anti-Vibration Standoff
- 029: Shallow 2.9″ Penetration Profile
- 03: Dual Seal NPT Connection System
Enhanced Technical Profile
Physical Characteristics
- Minimum Clearance: 3.2″ (8.1cm) radial
- Resonance Frequency: 85Hz (unsupported)
- Cable Bend Radius: 1.5″ (38mm) minimum
Performance Metrics
- Shock Resistance: 50g @ 11ms duration
- EMI Shielding: 60dB attenuation
- Pressure Rating: 150PSI (10.3 bar)
Industry-Specific Implementations
- Food Processing Chillers – Bearing monitoring in USDA-compliant refrigeration units
- Semiconductor Vacuum Chambers – Vibration analysis in ISO Class 1 cleanrooms
- Wastewater Aeration Systems – Corrosion-resistant monitoring in NACE MR0175 environments
Critical Installation Notes
- Requires ±0.02″ alignment tolerance for short penetrations
- Mandatory use of PTFE-based lubricant during assembly
- Flag label orientation must face service access points
Certifications: CSA Class I Div 1 | ATEX Zone 0 | IECEx
Support: Contact sales@ubestplc.com for penetration calculation matrices
Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
