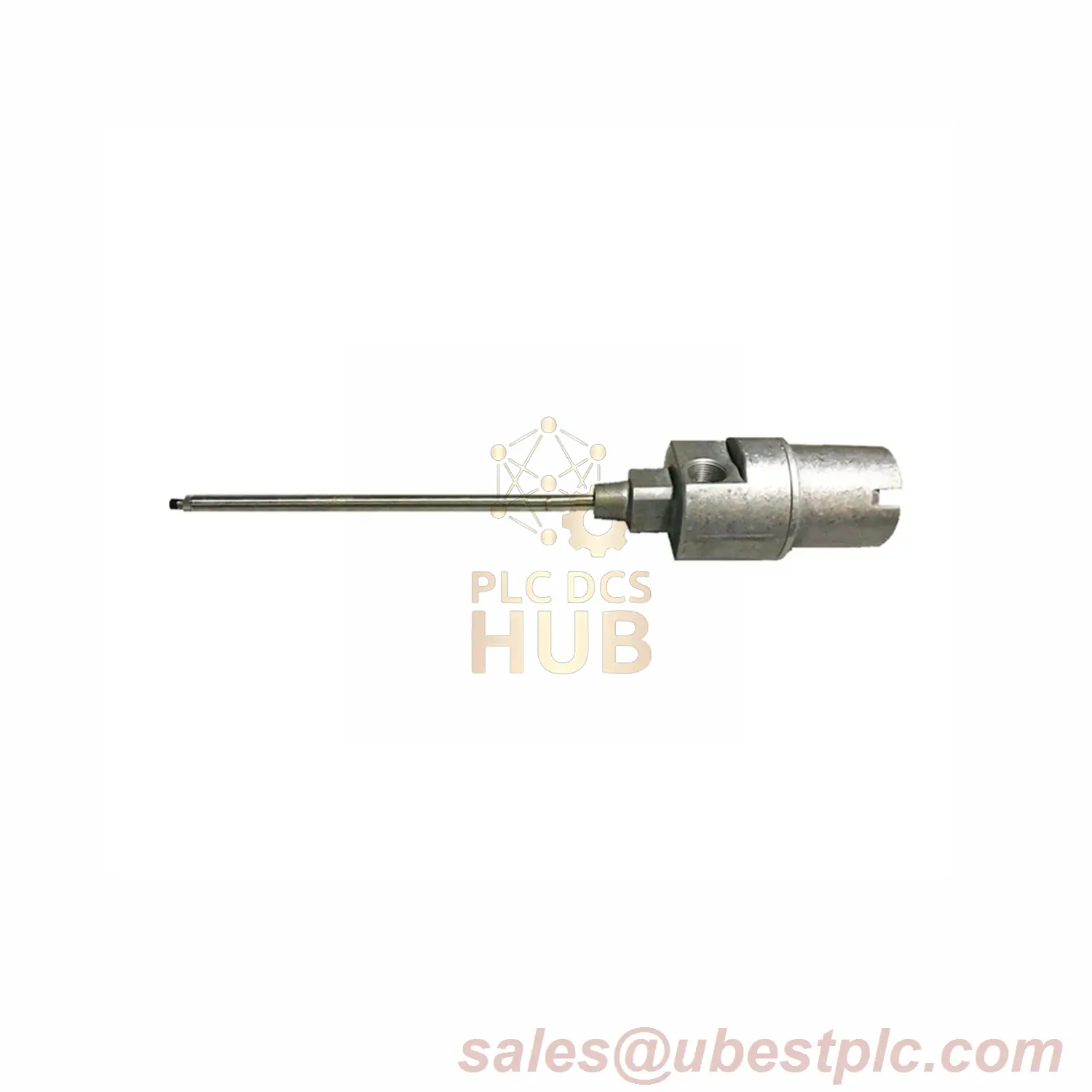

Aluminum Body Proximity Probe Housing Assembly 21000-28-05-45-020-03-02

Description

Industrial Monitoring Solution: 21000-28-05-45-020-03-02

Full Suffix Code Breakdown for 21000-28-05-45-020-03-02

• 28 – Hazardous Area Probe
  • Type: 3300 XL 8mm with ATEX/IECEx certification
  • Approvals: Zone 1/21, Group IIB+H2
• 05 – Short-Run Cable
  • Length: 0.5m (20″) with double-armored shielding
  • Rating: 600V AC/DC, 90°C max
• 45 – Extended Standoff
  • Dimensions: 4.5″ (114mm) 316L stainless steel
  • Surface Treatment: Electropolished to 0.4μm Ra
• 020 – Penetration Depth
  • Measurement: 2.0″ ±0.1″ (51±2.5mm)
  • Installation: Requires 0.35″ counterbore depth
• 03 – Connection Kit
  • Components: 3/4-14 NPT plug, reducer, triple-seal grip
  • Seal Range: 1/8″ to 3/8″ cables
• 02 – Mounting Interface
  • Thread Spec: 3/4-14 NPT tapered
  • Torque Spec: 35-45 lb-ft (47-61 Nm)

Technical Parameters

• Electrical:
  • Output: 4-20mA + HART® 7.3
  • Loop Resistance: 250-1100Ω
• Mechanical:
  • Pressure Rating: 1500 PSI (103 bar)
  • Vibration Limit: 10g peak (5-2000Hz)
• Environmental:
  • IP68 submersible (72hrs @ 5m)
  • Operating Temp: -40°C to +125°C

Industrial Automation Application

Critical component in mining conveyor systems for real-time roller bearing monitoring, maintaining ±0.5% accuracy in high-dust environments with continuous 4g vibrations.

Certifications & Compliance

• CSA C22.2 No. 30-M1986
• IEC 60079-0:2017 Explosive Atmospheres
• API 670 5th Edition Vibration Standard

Contact for Technical Specifications: sales@ubestplc.com

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
