Description

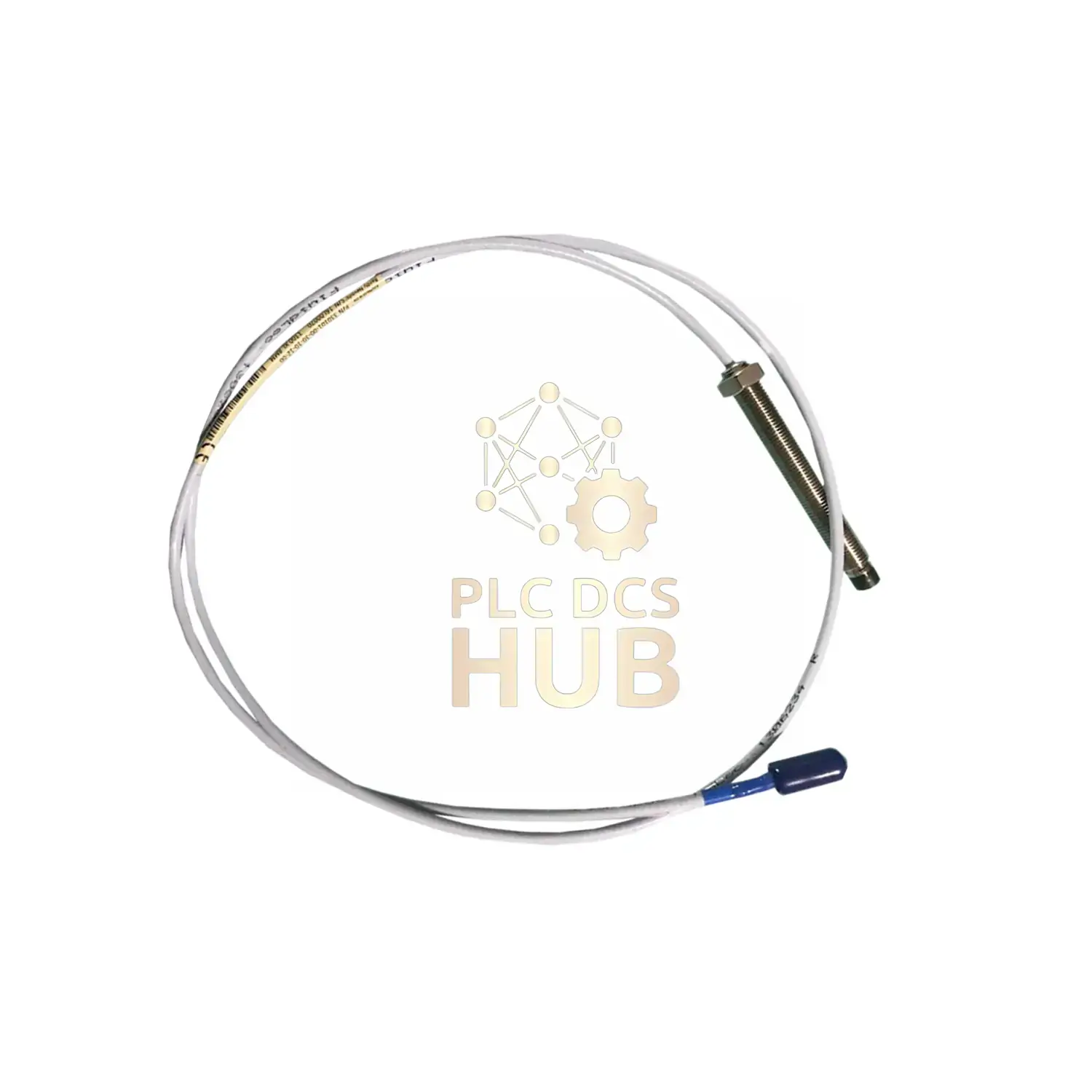

Bently Nevada 3300 XL 11mm Probe: Extended Reach Vibration Monitor
Industrial-grade sensor with 5m cable for flexible installations. Made in USA. 12-month warranty.
Product Code Breakdown
| 330702-00 | 24 | 50 | 01 | 05 |
| Base Model | 2.4″ Case | 5m Cable | Connector Protector | Multi-Approvals |
Key Specifications
- ???? Cable Length: 5.0 meters (16.4 ft)
- ???? Case Size: 2.4 inches
- ⚡ Resistance: 7.2Ω ±0.8 (5m cable)
- ????️ Temp Range: -51°C to +177°C
- ???? Connector: ClickLoc with protector
Installation Notes
- ⚙️ Use with 5m Proximitor Sensor only
- ⚠️ Max torque: 15.2 N·m (133 in·lb)
- ↪️ Min bend radius: 25.4mm (1 inch)
- ❄️ Avoid below -34°C to protect seal
Support & Delivery
- ????️ 12-month warranty
- ???? Ships: FedEx/UPS/DHL worldwide
- ⚖️ Weight: 0.17 kg
Technical FAQs
- Q: Can I cut the cable length?
A: No – cutting voids warranty - Q: What approvals are included?
A: Multiple global certifications (Option 05) - Q: Is calibration needed?
A> Factory calibrated – ready to install - Q: Cable oil resistance?
A: FEP insulation resists oils and chemicals - Q: Vibration limits?
A: Handles 20g vibration @ 2kHz
