Description

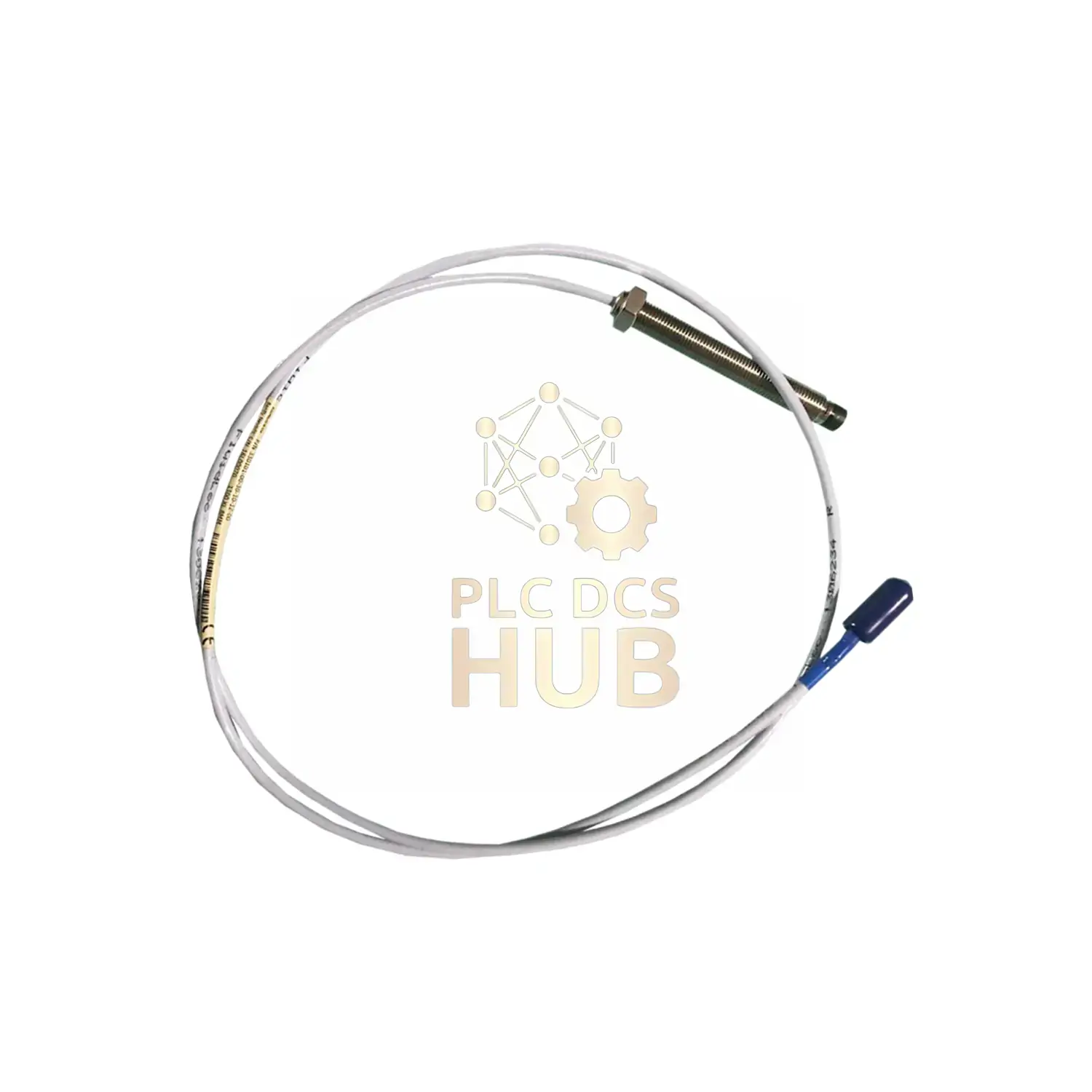

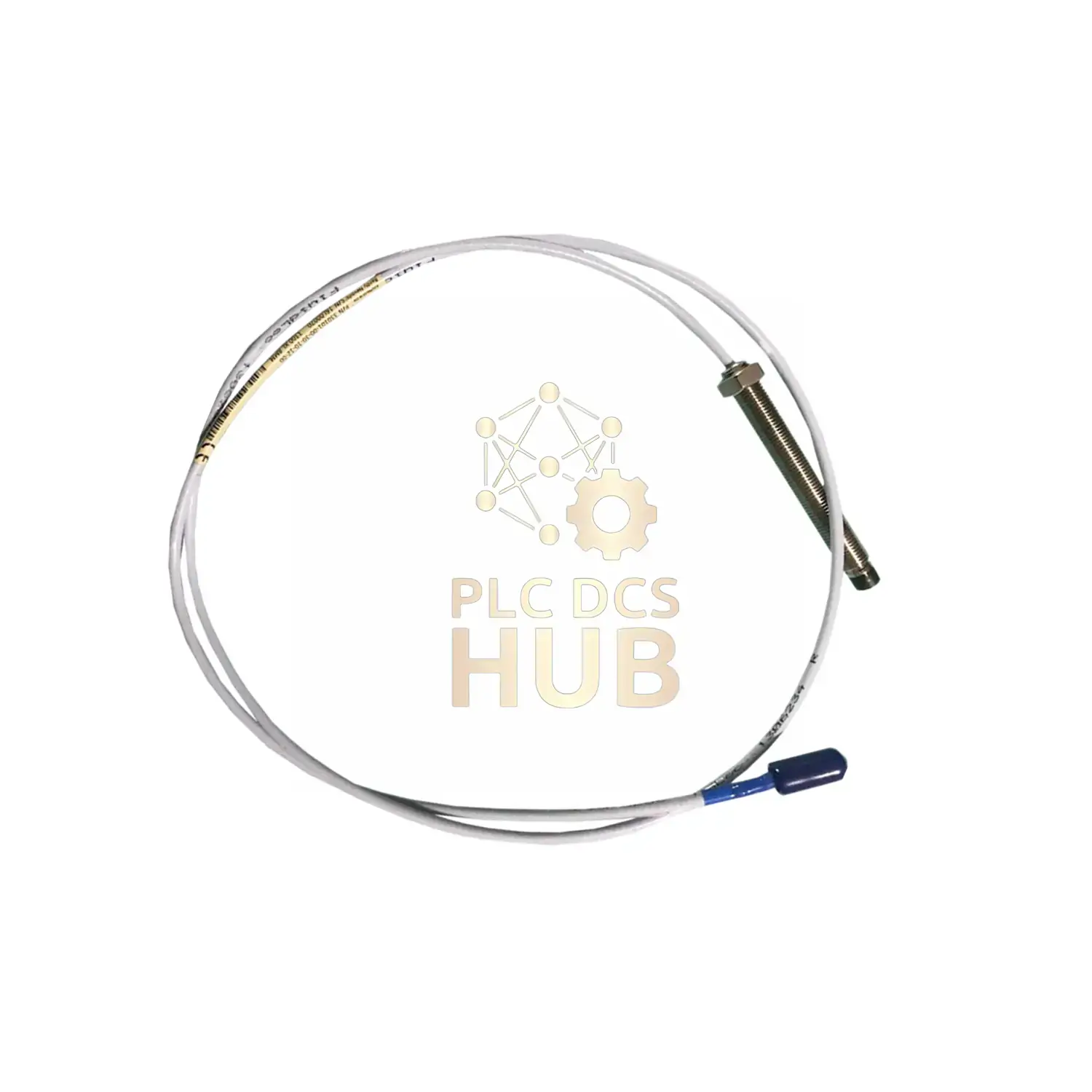

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part No: 330702-00-25-10-02-00
- 00: 0″ unthreaded length
- 25: 2.5″ case length
- 10: 1.0 meter cable
- 02: ClickLoc connector
- 00: No agency approval
- Electrical: 75 Ω triaxial cable, 5.9±0.5 Ω resistance
- Temperature Range: -51°C to +177°C (avoid below -34°C for seal)
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Cable: Armored FEP insulation
Installation & Maintenance
- Torque: 15.2 N•m (recommended), 45.2 N•m (max)
- Bend Radius: 25.4mm minimum
- Connector: Finger-tight installation (0.565 N•m max)
- Sealed with Viton O-ring (not pressure tested)
Compatibility & Certifications
- Works with 3300 XL monitoring systems)
- Standard ClickLoc connector interface
Packaging & Shipping
- Shipping weight: 0.17 kg
- Carriers: FedEx, UPS, DHL worldwide
- Warranty: 12 months
Frequently Asked Questions
- Q: Pressure rating?
A: Not rated – contact us for pressure testing - Q: Cable length options?
A: 1m (standard), 5m or 9m available - Q: Cold operation?
A: Avoid below -34°C to prevent seal damage
