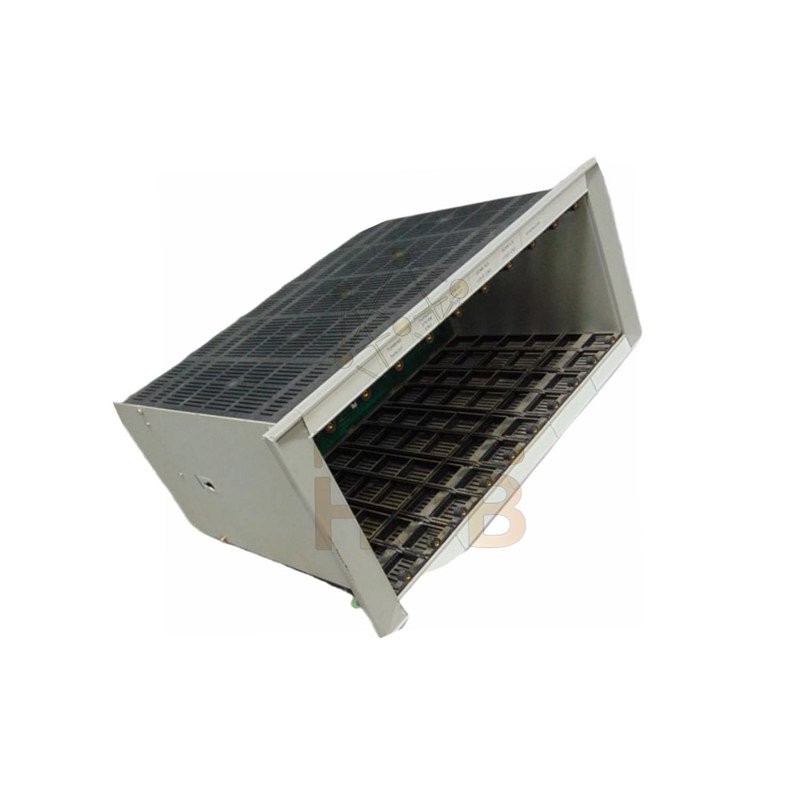

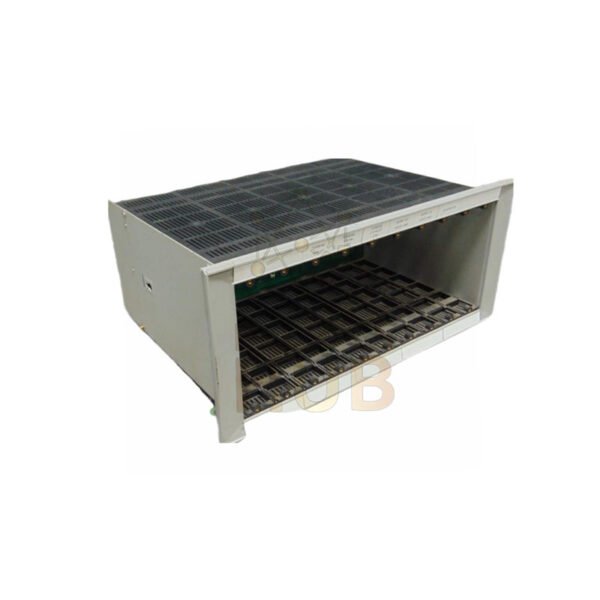

Bently Nevada 12-Slot System Frame 3300/05-25-00-00

Description

Product Summary

• Bently Nevada 3300/05-25-00-00 is a system rack for monitoring modules.
• It supports up to twelve installed cards.
• The rack forms the backbone of a 3300 series system.
• It ensures stable power and mechanical support.
• Core benefit: organized and secure module integration.

Ordering Structure

• Series: 3300 Series
• Model: 3300/05-25-00-00
• Slot Count: 12 positions
• Agency Option: Not required
• Mounting Style: Standard rack mount

Mechanical Characteristics

• Weight: 11.2 kg
• Load Capacity: Designed for full module population.
• Frame Material: Rigid industrial-grade metal.
• Finish: Corrosion-resistant coating.

Rack Dimensions

• Overall Width: 685.8 mm
• Mounting Depth: 614.2 mm
• Total Depth: 624.3 mm
• Optimized for standard control cabinets.

Electrical & System Support

• Integrated backplane for signal routing.
• Stable grounding reference for all modules.
• Supports continuous operation.
• Reduces electrical noise between cards.

Hazardous Area Compliance

• CSA Option: Class I, Div 2 Groups A–D.
• Temperature Class: T4 up to 65°C.
• ATEX Option: II G, EEx nC IIC.
• ATEX Range: -20°C to +60°C.

Environmental Suitability

• Designed for control room environments.
• Handles vibration from nearby machinery.
• Supports long service life.

Installation Guidance

• Install in a rigid cabinet frame.
• Ensure proper airflow clearance.
• Secure rack evenly on all mounting points.
• Verify grounding before system power-up.

Compatibility Overview

• Accepts all standard 3300 series monitors.
• Works with Bently Nevada power supplies.
• Ideal for new or expansion systems.

Product Advantages

• High slot density saves cabinet space.
• Strong structure protects installed cards.
• Certified options for hazardous locations.
• Proven long-term platform.

Warranty & Shipping

• Warranty: 12 months.
• Delivery: FedEx, UPS, DHL.
• Export-safe industrial packaging.

FAQ

• Is this rack required for all 3300 systems?
• Yes. It is the base for mounting and power routing.
• Can I mix different monitor types?
• Yes. Any compatible 3300 module fits.
• Does rack size affect system cooling?
• Yes. Proper spacing improves airflow.
• When should I select hazardous approval?
• Choose it for classified plant areas.
• How do I plan slot usage?
• Reserve spare slots for future expansion.
