Description
Product Introduction

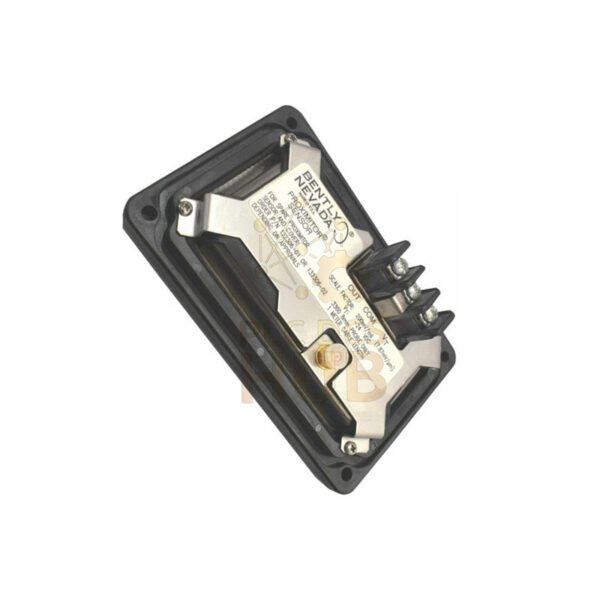

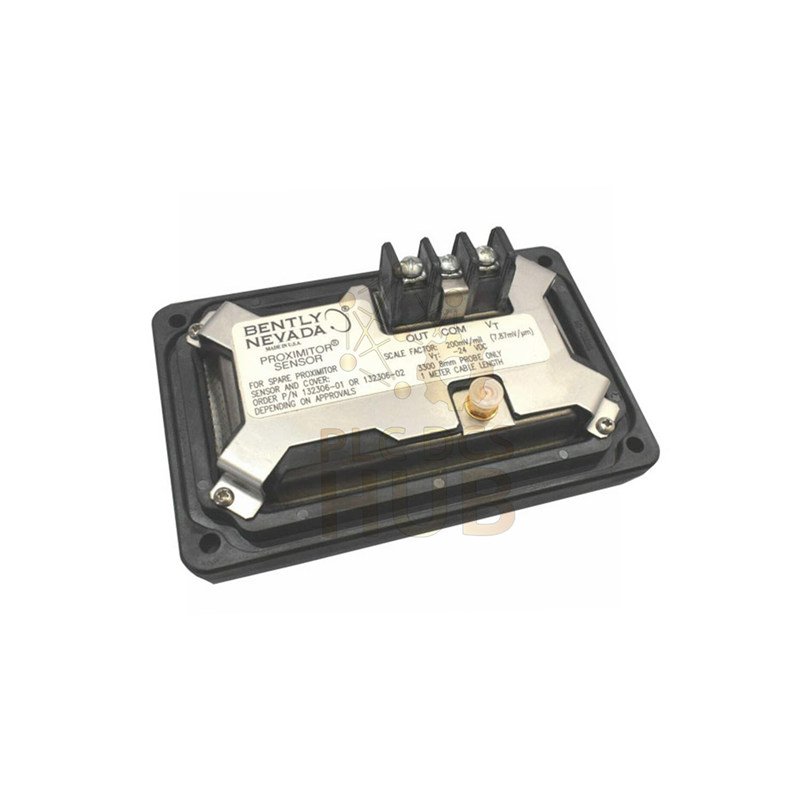

Introducing the Bently Nevada 132306-02 Spare Proximitor Sensor. This ready-to-use unit is essential for machine health monitoring. It delivers precise vibration and position data. Protect your valuable rotating equipment. Ensure smooth operation with this reliable industrial sensor.
Main Features & Advantages
- Complete Kit: Comes as a full sensor assembly with protective housing cover.
- Premium Accuracy: Industry-leading ±0.1% accuracy for trusted measurements.
- Broad Detection Range: Measures gaps from 0.25 mm to 100 mm.
- Ultra-Fast: Responds to changes in under 10 ms.
- Robust Housing: IP65-rated stainless steel protects against harsh conditions.
- Extreme Temperature Ready: Reliable performance from -40°C to +85°C.
- Universal Mounting: Standard 1/2″ UNF thread for easy installation.
- Flexible Output: Switchable between 4-20 mA current and 10-50 V DC voltage signals.
Full Technical Data: Bently Nevada 132306-02
Product Identification
- Manufacturer: Bently Nevada
- Part Type: Spare Proximitor Sensor with Cover
- Exact Model: 132306-02
Electrical Specifications
- Operating Voltage: 24V DC to 30V DC
- Output Options: 4-20 mA (2-wire) or 10-50 V DC (3-wire)
- Frequency Response: 5 Hz to 10 kHz
- Linearity: Excellent linearity across full scale.
- Temperature Drift: Low drift for stable readings.
Performance & Environmental Specs
- Measurement Span: 0.25 to 100 mm (adjustable)
- Rise Time: < 10 ms
- Case Material: 316 Stainless Steel
- Ingress Protection: IP65 (Dust tight, water jet resistant)
- Operating Temp Range: -40°C to +85°C
- Storage Temperature: -50°C to +100°C
- Vibration Limit: 20g peak (10 Hz to 2 kHz)
- Shock Survival: 50g peak (11ms duration)
Physical Specifications
- Dimensions (LxWxH): 120 mm x 40 mm x 40 mm
- Unit Weight: ~300 grams
- Mounting Thread: 1/2″-20 UNF
- Connection Type: Industrial-grade threaded connector.
Warranty & Shipping
All products include a comprehensive 12-month manufacturer warranty. We ship globally via FedEx, UPS, and DHL express services. Tracking details are provided upon dispatch.
Frequently Asked Questions
Technical & Application
What machinery is the 132306-02 sensor best suited for?
Ideal for turbines, compressors, large pumps, and generators. It’s perfect for monitoring shaft vibration, position, and eccentricity.
Can this sensor work with older Bently Nevada monitors?
Yes. The 132306-02 provides compatible 4-20mA/10-50V outputs. It works with most legacy 3300, 3500, and other monitoring systems.
Installation & Troubleshooting
What’s the proper procedure for initial gap setting?
Use a feeler gauge. Set the gap per your machinery manual (often 1.0mm or 1.5mm). Then verify output voltage matches the gap-voltage curve.
My sensor reading drifts with temperature changes. Is this normal?
Some minimal drift is expected. For critical applications, ensure proper thermal stability in the mounting area and use the low-drift specification of the 132306-02.
Purchasing Guidance
I need to replace a sensor. How do I confirm the 132306-02 is correct?
Match the model number on your existing sensor. The 132306-02 is a common spare. Also verify your system requires a 1/2″ UNF threaded proximitor with these output ranges.
