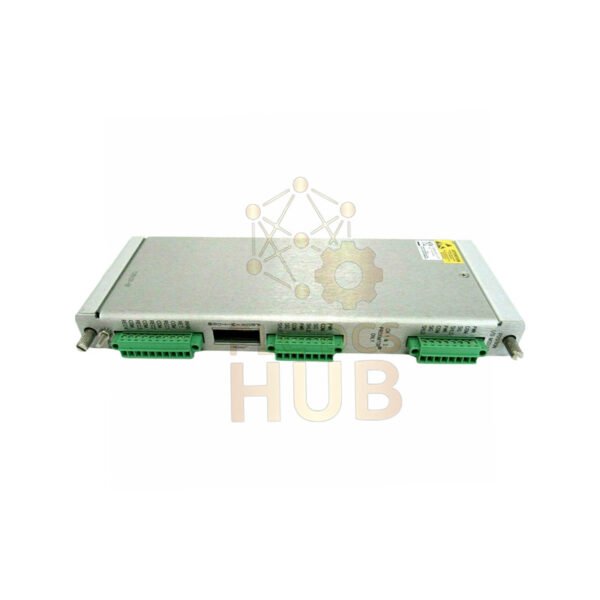

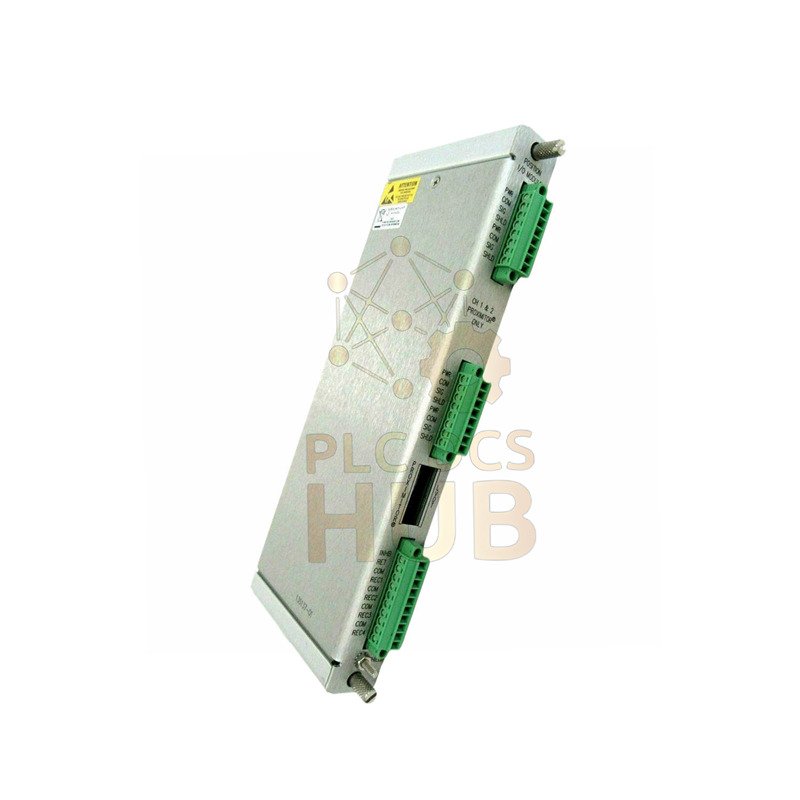

Bently Nevada 135137-01 3500 Series Position I/O Module for Precision Control

Description

Product Insight

• Bently Nevada 135137-01 is a precision Position I/O Module.
• It belongs to the trusted 3500 monitoring platform.
• The module converts position signals into clean control outputs.
• It supports stable machine protection and process control.
• The design focuses on accuracy and long-term reliability.

Signal Handling Structure

• Input Signal Support
  • Proximity sensors
    • Voltage range ±10 VDC
    • Current range ±20 mA
  • Resistive position transducers
    • Voltage range ±10 VDC
    • Current range ±20 mA
  • DC LVDT devices
    • Input range ±10 VDC
• Output Signal Options
  • Analog current output
    • 4 to 20 mA standard
  • Analog voltage output
    • 0 to 10 VDC range

Measurement Performance

• Overall accuracy
  • ±0.1 percent of full scale
• Linearity performance
  • ±0.1 percent of full scale
• Repeatability
  • ±0.05 percent of full scale
• Temperature drift
  • ±0.01 percent of full scale per degree Celsius
• Resolution
  • High resolution for fine position change detection
• Update speed
  • Fast response for real-time monitoring

Electrical Characteristics

• Power supply input
  • 24 VDC nominal
  • Voltage tolerance ±10 percent
• Maximum power draw
  • 2.5 watts
• Designed for low internal heat generation

Mechanical Profile

• Module dimensions
  • Height 241.3 mm
  • Width 24.4 mm
  • Depth 99.1 mm
• Module weight
  • 0.20 kg
• Compact design for high-density racks

Environmental Limits

• Operating temperature range
  • -20°C to 60°C
• Designed for controlled cabinet environments
• Stable performance under continuous operation

Key Product Advantages

• High signal stability over long operating hours.
• Accurate position feedback for protection logic.
• Supports multiple sensor technologies.
• Easy integration within 3500 systems.
• Reduced false alarms due to precise signal handling.

Common Application Areas

• Thrust position monitoring
• Valve position feedback
• Shaft axial movement detection
• Turbine protection systems
• Critical rotating machinery

Installation Recommendations

• Install only in compatible 3500 racks.
• Verify input type before channel assignment.
• Ensure proper grounding for best accuracy.
• Allow airflow around the module.

Package, Warranty, and Shipping

• Package includes one Position I/O Module.
• 12-month warranty from shipment date.
• Worldwide delivery via FedEx, UPS, or DHL.

FAQ

• Is this module suitable for axial position measurement?
  • Yes. It is designed for precise position tracking.
• Can it handle both voltage and current inputs?
  • Yes. It supports multiple analog signal types.
• What matters most when choosing this module?
  • Check sensor type, output needs, and rack version.
• Does temperature affect accuracy?
  • Drift is minimal and well controlled.
• Is this module suitable for long-term operation?
  • Yes. It is built for continuous industrial use.
