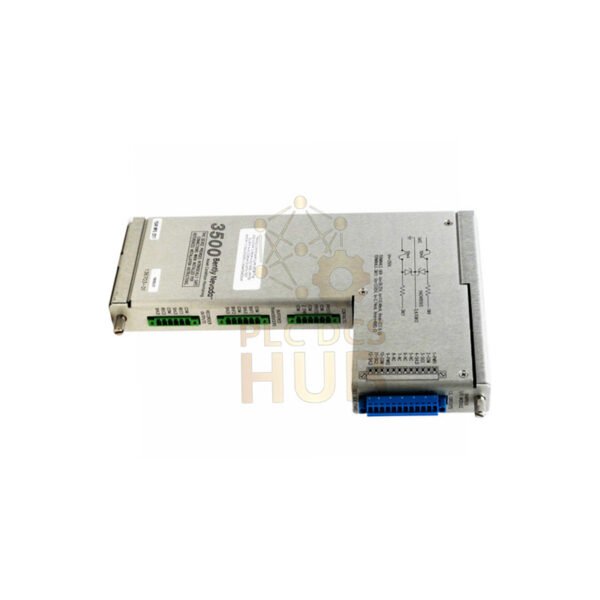

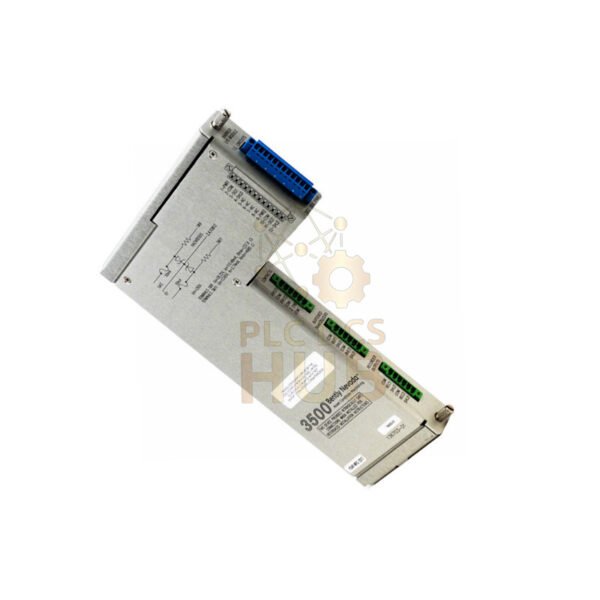

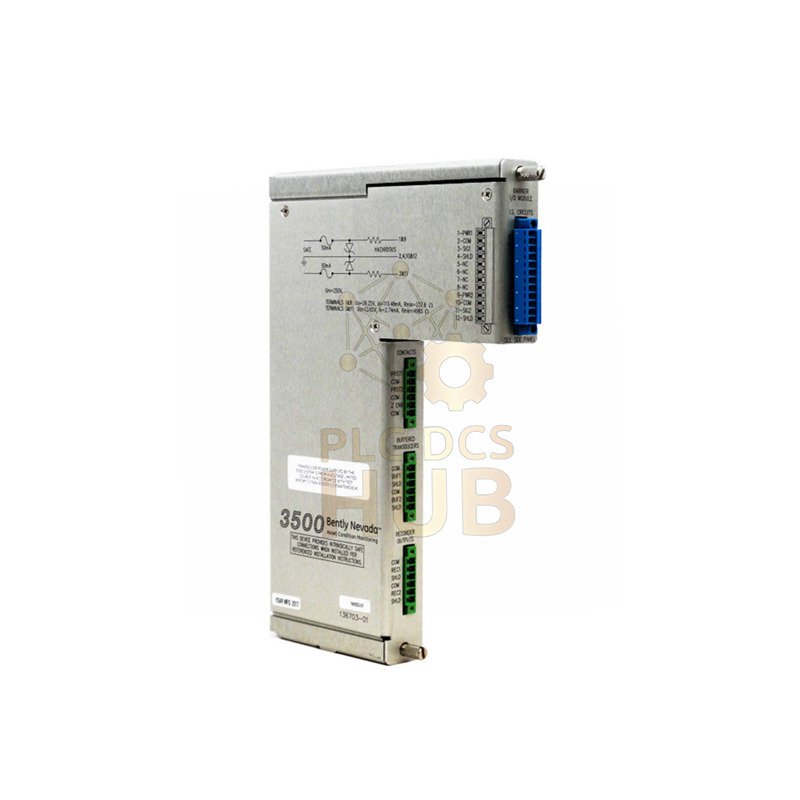

Bently Nevada 136711-02 3500/61 I O Module Reliable Control Interface

Description

Product Overview

• Manufacturer
  • Bently Nevada
• Product Number
  • 136711-02
• Series
  • 3500 Series
• Type
  • 3500/61 I O Module
  • Internal barriers and terminations
• Designed for safe signal routing.
• Optimized for high reliability systems.

Key Benefits

• Built-in barriers reduce wiring errors.
• High bandwidth supports fast signals.
• Compact size saves rack space.
• Easy wiring with screw terminals.

Core Technical Data

• Signal Capability
  • Bandwidth: 30 kHz
  • High resolution analog processing
  • Low signal distortion design
• Power Input
  • Supply voltage: 24 VDC ±10%
  • Typical current: 80 mA
  • Power dissipation: Below 2 W
• Electrical Isolation
  • Internal safety barriers included
  • Improved noise resistance

Mechanical and Environmental

• Physical Design
  • Dimensions: 10.31 x 2.44 x 24.13 cm
  • Weight: About 0.46 kg
  • DIN rail or panel mounting
• Operating Conditions
  • Temperature range: 0°C to 60°C
  • Designed for control cabinets
• Protection Level
  • Environmental rating: IP20
  • Protection against large solid objects

Installation and Handling

• Mount securely on rail or panel.
• Tighten terminals to rated torque.
• Separate signal and power wiring.
• Label channels during installation.

System Compatibility

• Works with Bently Nevada 3500 racks.
• Supports multiple monitoring modules.
• Suitable for system expansion.

Compliance and Standards

• UL certified
• CE compliant
• RoHS compliant

Packaging and Warranty

• One original I O module unit.
• Factory quality inspection.
• Warranty: 12 months.
• Shipping via FedEx, UPS, or DHL.

Typical Applications

• Machinery protection systems.
• Process control monitoring.
• Critical asset supervision.

FAQ

• Does this module reduce field wiring work
• Yes, internal terminations simplify wiring.
• Is this module suitable for noisy plants
• Yes, barriers improve signal stability.
• How do I choose the correct I O module
• Select based on signal type and rack model.
• Can it be used for system upgrades
• Yes, it fits existing 3500 systems.
• What should be checked during maintenance
• Inspect terminals and module seating.
