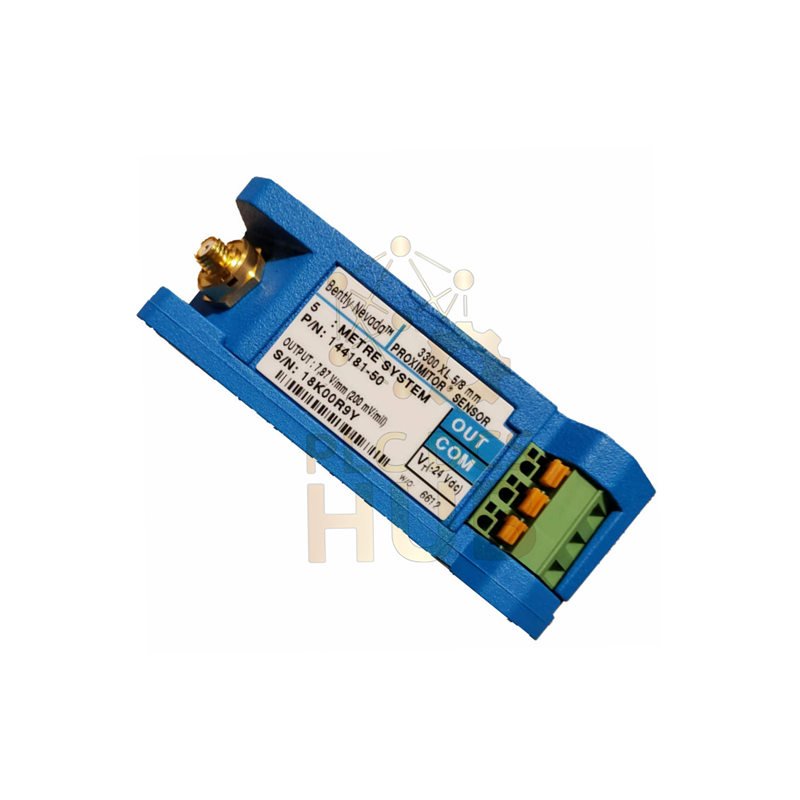

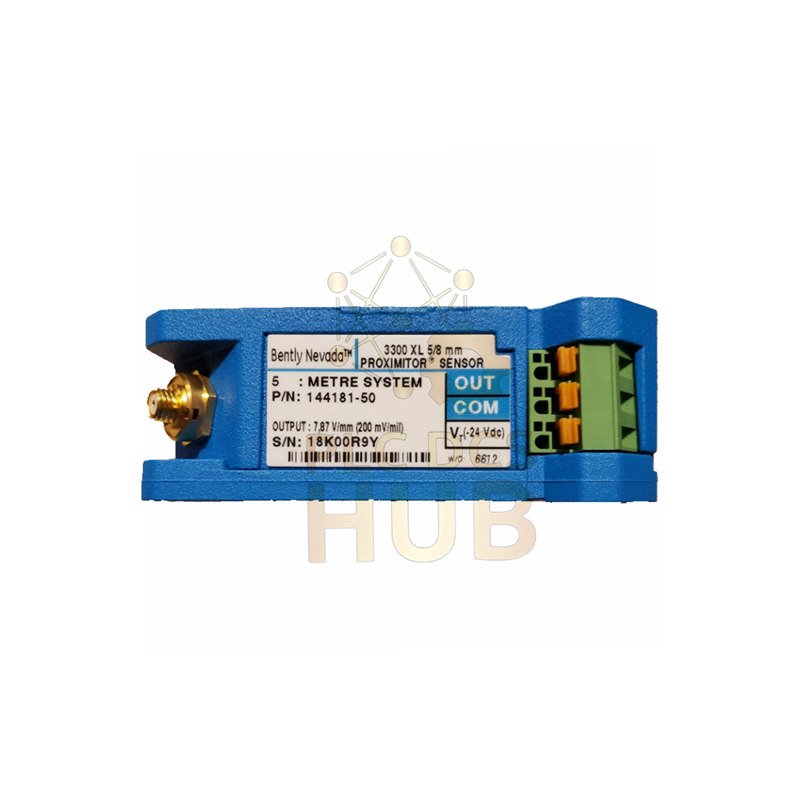

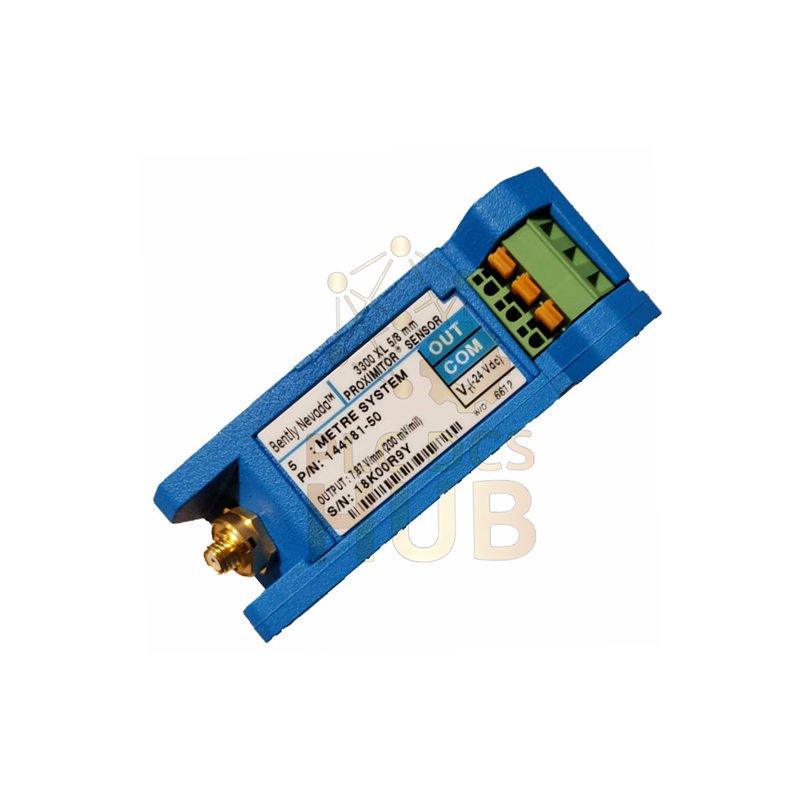

Description
Product Overview
- Manufacturer
- Bently Nevada
- Product Number
- 144181-50
- Series
- 3300 XL
- Type
- Designed for precise shaft position sensing.
- Built for long-term industrial monitoring.
Key Advantages
- High signal stability over time.
- Fast response to small movement.
- Compact design fits tight spaces.
- Made in the USA for quality assurance.
Technical Performance
- Sensing Characteristics
- Sensitivity: 7.87 V per mm
- Measurement resolution: Better than 1 µm
- Linearity error: Within ±1%
- Signal Output
- Output type: DC voltage signal
- Output range: -24 V to 0 V
- Signal noise: Less than 5 mV RMS
- Dynamic Response
- Frequency bandwidth: Up to 10 kHz
- Response delay: Under 2 ms
Environmental and Mechanical
- Operating Conditions
- Temperature range: -40°C to +85°C
- Humidity tolerance: Up to 95% non-condensing
- Mechanical Details
- Mounting thread: 5/8-18 UNF
- Sensor weight: About 0.3 kg
- Housing material: Industrial-grade metal
- Connection
- Standard cable connector
- Shielded design reduces interference
Installation Notes
- Set probe gap within recommended range.
- Align sensor with target surface.
- Avoid cable stress near the connector.
- Verify output voltage before startup.
Compatibility
- Works with 3300 XL probe systems.
- Compatible with Bently Nevada monitors.
- Ideal for retrofit projects.
Packaging and Warranty
- One new Proximitor sensor unit.
- Factory-tested before shipment.
- Warranty: 12 months.
- Shipping via FedEx, UPS, or DHL.
Typical Applications
- Shaft position measurement.
- Rotor movement monitoring.
- Vibration protection systems.
- Critical rotating machines.
FAQ
- Can this sensor work in hot areas
- Yes, it handles high temperature well.
- Is this model suitable for continuous duty
- Yes, it is designed for 24-hour operation.
- How do I select the correct proximitor
- Check probe size and monitor type.
- Does cable length affect accuracy
- Standard lengths keep signal stable.
- What should I inspect during maintenance
- Check mounting tightness and output level.
