Bently Nevada 146054-08-50-02-00 3300 Probe for Vibration Monitoring

Description

Product Description

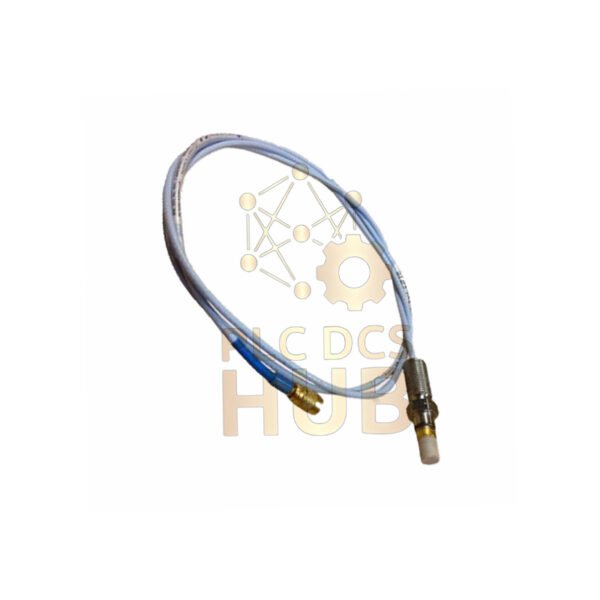

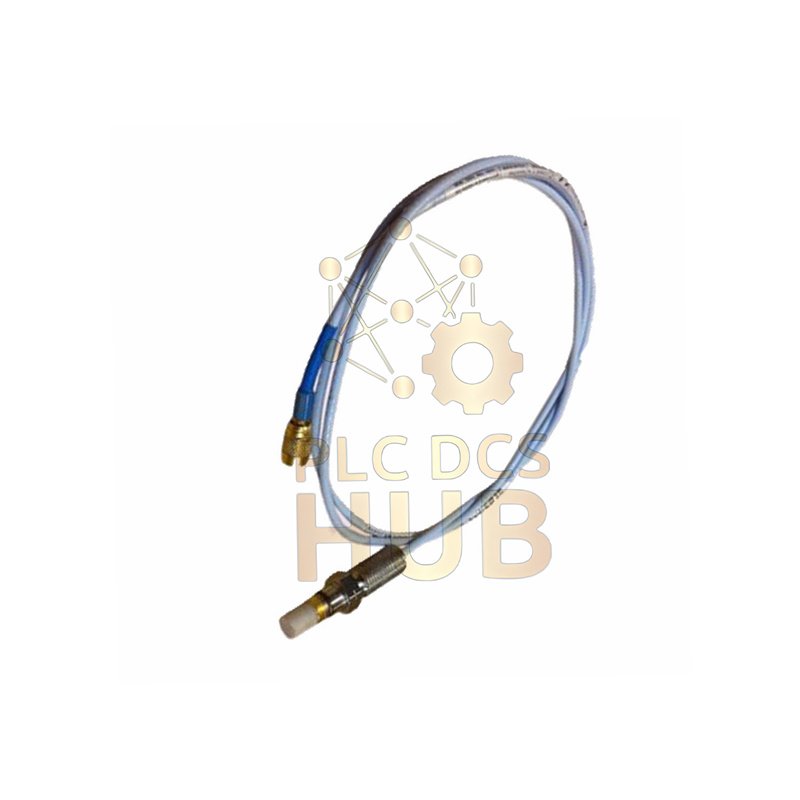

The Bently Nevada 3300 Ceramic Capped Proximity Probe
(Part Number: 146054-08-50-02-00) delivers accurate shaft vibration and position sensing.
It fits heavy industrial machines.
It resists wear with an alumina ceramic tip. And it ships factory sealed with a 12-month warranty.

Technical Data

• Brand: Bently Nevada
• Model: 3300 Ceramic Capped Probe
• Part Number: 146054-08-50-02-00
• Measurement
  • Linear range: 1.52 mm (0.25–1.78 mm).
  • Scale factor: 7.87 V/mm ±6.5%.
  • Nominal resistance: 8.73 ±0.70 ohms.
• Frequency Response
  • Optimized for the 5 mm 3300 system.
  • Stable within +18°C to +27°C.
• Sensitivity & Linearity
  • High linearity across the full gap range.
  • Calibrated for AISI 4140 steel targets.
• Resolution
  • Detects fine shaft movement reliably.
• Temperature Range
  • Operating and storage: −51°C to +177°C.
• Environmental Durability
  • Pressure seal rated to 34 bar nitrogen.
  • Standard cable: 75 Ω FEP coaxial in multiple lengths.
• Interference Resistance
  • Coaxial shielding reduces electromagnetic noise.
  • Designed for stable signals in harsh fields.

Ordering Structure

• 146054-AA-BB-CC-DD
  • A: Case length. Example -08.
  • B: Total probe length. Example -50 (5 m).
  • C: Connector and cable. Example -02 ClickLoc.
  • D: Agency option. Example -00.

Installation Guide

• Use 3/8-24 thread for mounting.
• Max thread engagement: 0.563 in.
• Set probe gap inside the linear zone.
• Route cable away from strong power lines.
• Pair with the 5 m Proximitor Sensor for 5 m probes.

Commissioning & Maintenance

• Measure gap voltage before running the machine.
• Inspect connectors and cable bends regularly.
• Clean the ceramic tip with a soft tool only.
• Recheck calibration after long downtime.

Compatibility

• Compatible with 3300 5 mm Proximitor Sensors.
• Designed for systems with only 3300 XL components.
• Calibrate again for non-AISI 4140 targets.

Certifications & Temperature Class

• EPL classifications supported: Ga, Gc, Dc.
• Temperature classes: T1 to T5 per classification.
• Factory sealing test performed for pressure rating.

Package Contents & Shipping

• 1 x sealed 3300 Ceramic Capped Probe.
• 1 x factory QA record.
• Shipping options: FedEx, UPS, DHL.
• Warranty: 12 months.

Typical Applications

• Steam and gas turbines.
• Compressors and pumps.
• Gearboxes and rolling mills.
• High-load industrial machinery.

Diagnostic Capability

• Detects shaft vibration and imbalance.
• Tracks shaft position and eccentricity.
• Helps spot bearing wear early.
• Supports thermal shift monitoring.

FAQ

• How do I confirm the probe sits in the linear zone?
• Measure gap voltage and compare it to expected values.
• Will temperature changes affect readings?
• Yes. Material expansion changes the gap slightly.
• Can other target metals work?
• Yes, but you must recalibrate for sensitivity differences.
• How should I route the cable?
• Keep the cable away from power conductors and motors.
• What causes long-term drift?
• Oil films, thermal cycling, and mechanical shifts cause drift.
