Description

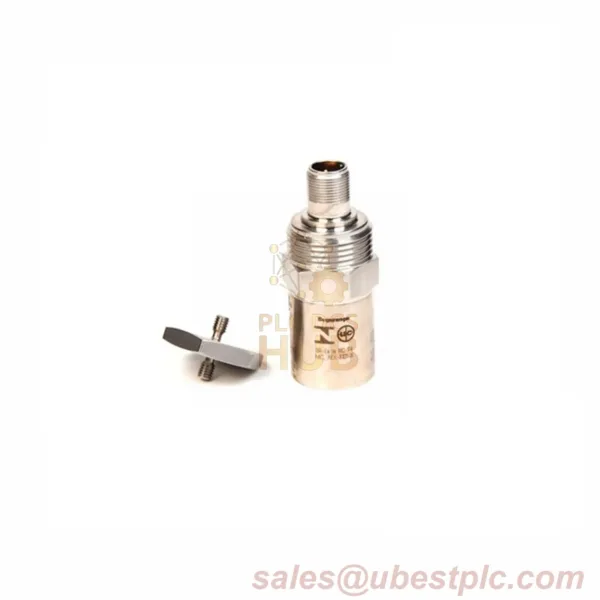

Bently Nevada Velomitor CT Transducer: Hazardous Zone Ready
✅ Critical Specifications
| Model | 190501-01-00-01 |
| Sensitivity | 3.94 mV/mm/s (±5%) |
| Frequency Range | 3Hz–900Hz (±1dB) |
| Certifications | CSA/ATEX/IECEx (Zone 0/1) |
⚡ Performance & Durability for 190501-01-00-01
- ► Shockproof: 5000g peak tolerance
- ► Material: 316L stainless steel housing
- ► Max Cable: 305m (no signal loss)
- ► Operating Temp: -40°C to +85°C
???? Mounting Guide
1. Use included 3/8" 24 stud for secure mounting. 2. Apply torque: 4.5 N·m ±0.6. 3. Orient freely – works in any angle.
???? Certifications
► Class I Div 1 (A/B/C/D Groups)
► ATEX/IECEx Zone 0/1 | T4 Rating
► MIL-C-5015 Connector | IP67 Protection
???? What’s Included?
- — Velomitor CT Transducer Unit
- — 3/8″ 24 Stud Mount
- — COO (on request)
- — 12-Month Warranty
???? Shipping & Support
Global delivery via FedEx/DHL/UPS (3-5 business days).
24/7 Technical Support included.
???? Real-World Uses
- ▶️ Oil & gas pipeline monitoring
- ▶️ Power plant turbine diagnostics
- ▶️ Heavy machinery vibration analysis
❓ FAQ
Q: Is this explosion-proof?
A: Yes – ATEX/IECEx Zone 0/1 certified.
Q: Warranty terms?
A: 12 months coverage from delivery date.
