Bently Nevada 200150-13-05 Trendmaster Pro Accelerometer

Description

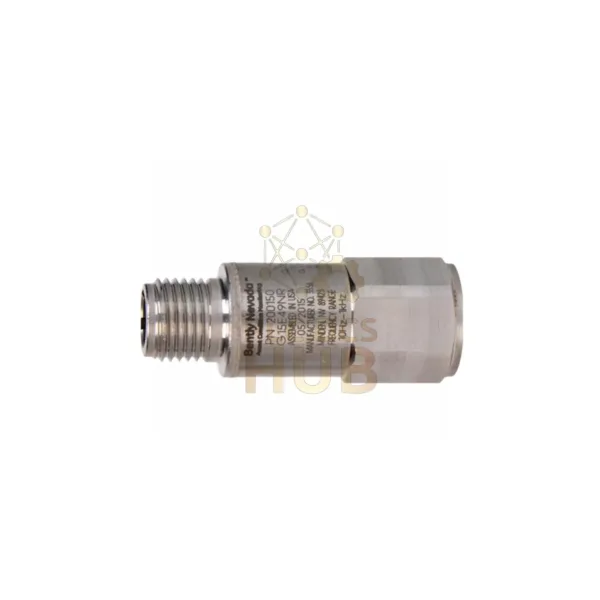

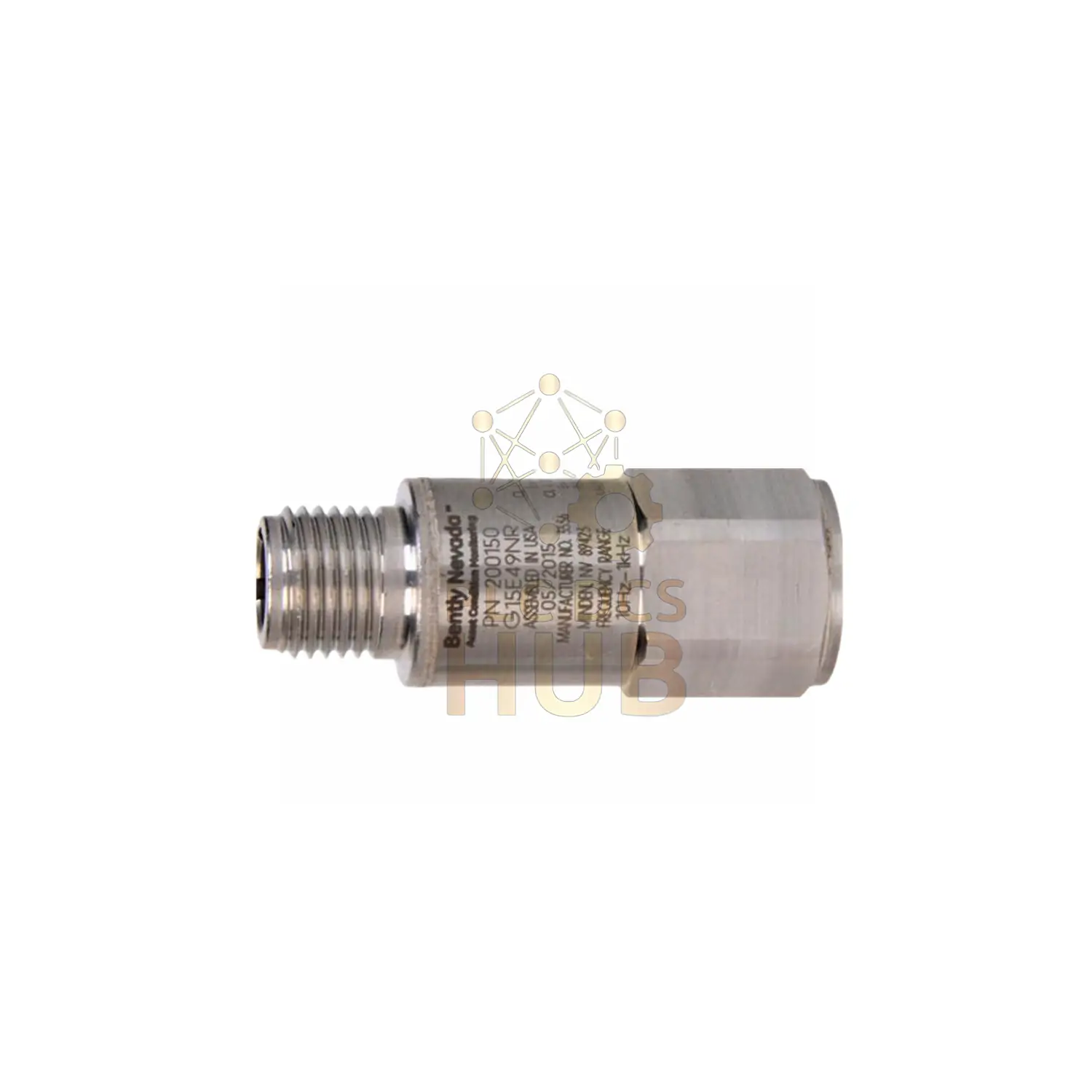

Bently Nevada 200150-13-05 Accelerometer

The Bently Nevada 200150-13-05 accelerometer is a high-performance device suitable for general applications. Manufactured in the U.S.A., it offers exceptional reliability and precision for various industrial needs.

Technical Data

• Brand: Bently Nevada
• Model: 200150-13-05
• Product Series: Trendmaster
• Mounting Stud Option: 3/8-24 to 5/16-18 UNC, 3/4 inch hex stud
• Approvals: CSA, ATEX, IECEx

Core Specifications

• Measurement Range: ±245 m/s² (±25 g)
• Frequency Range: 10 to 1000 Hz (600 to 60,000 cpm)
• Settling Time: ≤300 ms
• Output Signal: +2.5 ± 0.23 Vdc
• Operating Temperature: -40 ºC to +105 ºC (-40 ºF to +221 ºF)
• Electrical Characteristics: Sensitivity @ 80 Hz: 10.2 mV/(m/s²)
• Environmental Conditions: Hermetic sealing, 100% relative humidity

Additional Technical Parameters

• Excitation Voltage: 4.7 to 5.5 Vdc
• Quiescent Current: <800 µA
• Transverse Sensitivity: ≤7%
• Axial Shock Limit: 49,050 m/s² pk (5,000 g pk)
• Weight: 58 g (2.0 oz)
• Size: 17.5 mm x 45.7 mm (11/16 in x 1.8 in)
• Mounting Torque: 2.7 to 6.8 N•m (2 to 5 ft•lbf)
• Sensing Element: Ceramic
• Housing Material: 316L stainless steel

Installation Guide

Ensure proper mounting using a 3/8-24 female thread. Torque specifications should be followed closely for optimal performance.

Diagnosis and Maintenance

Regular maintenance is crucial for accuracy. Keep the accelerometer clean and dry to prevent performance issues.

Packaging List

• Bently Nevada 200150-13-05 Accelerometer
• Installation Manual

Shipping Options

Fast shipping available via FedEx, UPS, and DHL.

FAQ

• Q: What is the expected lifespan of the accelerometer?
• A: Typically, it lasts over 5 years with proper maintenance.
• Q: Can this accelerometer be used in hazardous environments?
• A: Yes, it has multiple approvals for safety in such conditions.
• Q: Is a Certificate of Origin available?
• A: Yes, it can be added upon request.
• Q: What is the maximum operating temperature?
• A: The maximum is +105 ºC (+221 ºF).
