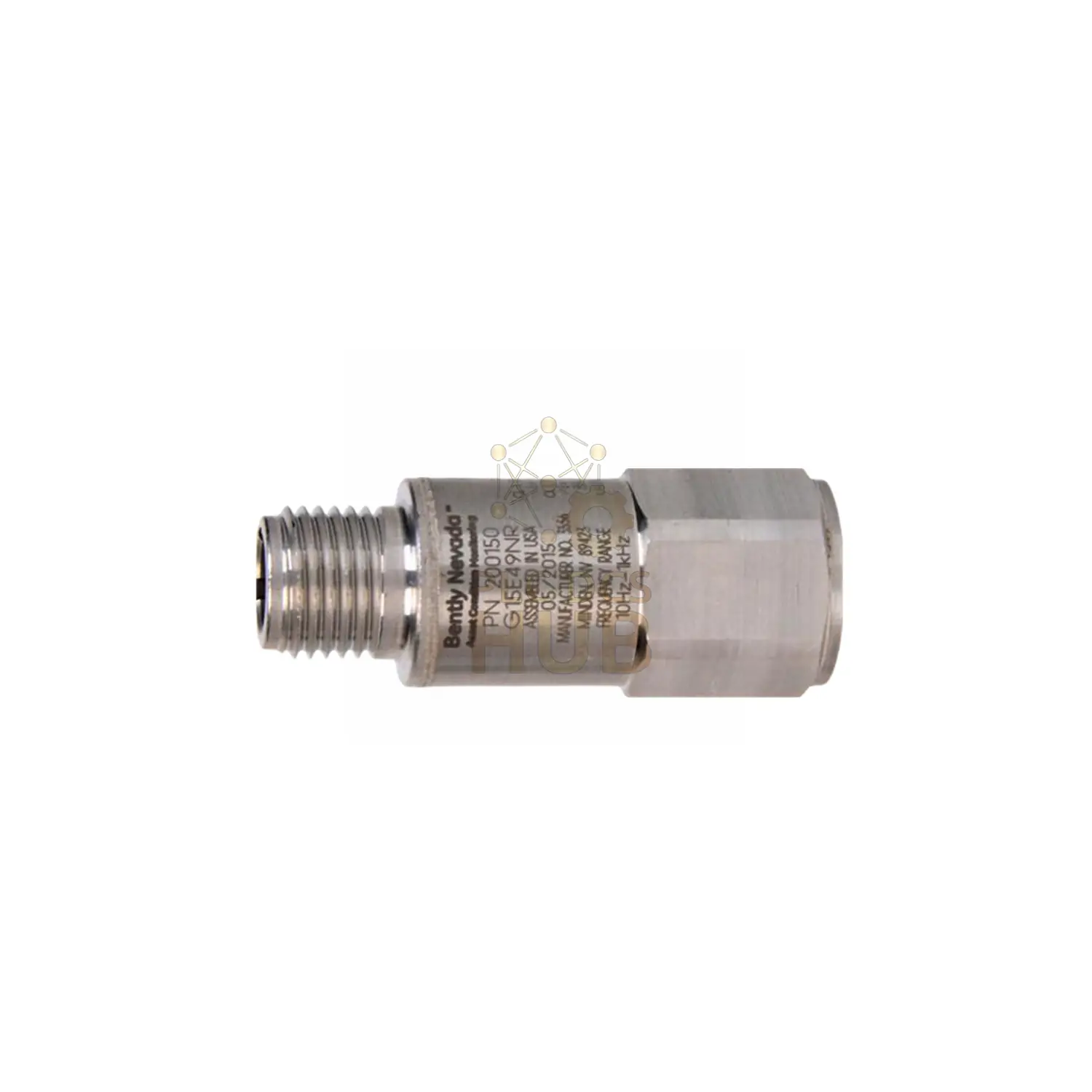

Bently Nevada 200150-18-05 Trendmaster Pro Accelerometer

Description

Bently Nevada Industrial Vibration Sensor: Global Safety Certified

Technical Specifications

• Model: 200150-18-05
• Mounting: 1-3/8″ hex plate stud (18)
• Range: ±245 m/s² (±25g)
• Frequency: 10-1000 Hz
• Temp Range: -40°C to +105°C
• Shock Limit: 49,050 m/s² (5,000g)
• Response Time: <300 ms
• Leak Rate: <5X10⁻⁸ atm•cc/s

Installation Guide

• Apply 2-5 ft-lbf torque to mounting plate
• Allow 24-hour curing for moisture seal
• Use anti-seize compound on threads
• Ground properly in high-static areas

Package Contents

• 1 Accelerometer unit
• M8x1 mounting plate stud
• Protective end caps
• Shipping: FedEx/UPS/DHL (2-5 days)
• Warranty: 12 months

FAQ

Q: Does the M8 stud need adapters?
A: No – direct fit for metric machinery.

Q: Can it survive steam cleaning?
A: Yes – hermetic seal protects internals.

Q: Minimum detectable vibration?
A: 14.7 mm/s² – detects early bearing wear.

Q: Suitable for outdoor use?
A: Yes – operates from -40°C to +105°C.

Q: Power requirements?
A: 4.7-5.5V DC – standard industrial power.
