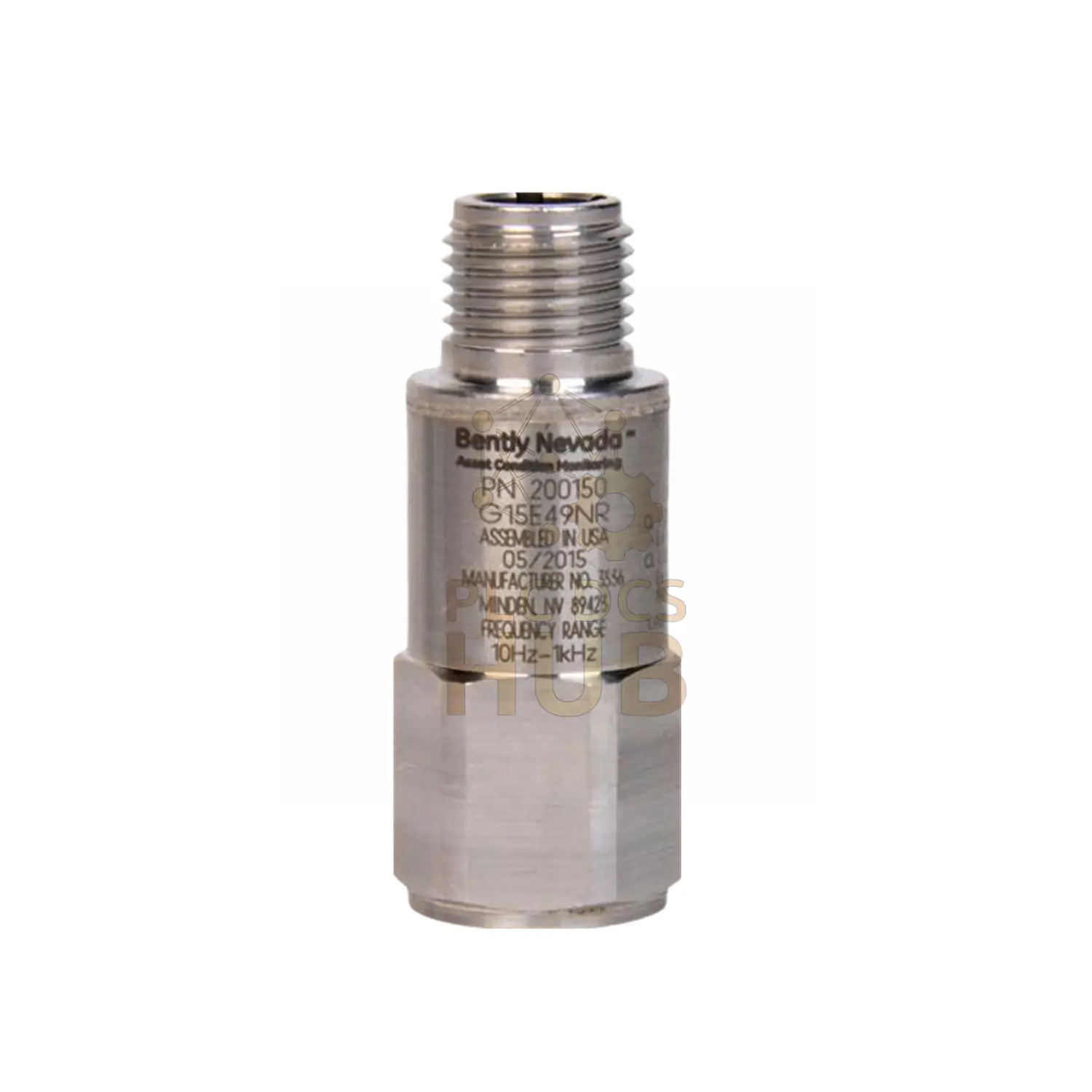

Bently Nevada Magnetic-Mount Accelerometer: Quick-Install Vibration Monitoring
Technical Specifications
- Full Model: 200150-20-05
- Mounting: Magnetic base (option 20)
- Measurement Range: ±245 m/s² (±25g)
- Frequency Response: 10-1000 Hz
- Temp Range: -40°C to +105°C
- Shock Resistance: 49,050 m/s² (5,000g)
- Housing: 316L stainless steel
- Weight: 58g (2.0 oz)
- Magnetic Strength: 18 kg (40 lb) pull force
Installation Benefits
- No tools needed – attaches in seconds
- Works on curved surfaces (min 25mm radius)
- Maintains grip at 105°C temperatures
- Reusable up to 500 installations
Package & Support
- Includes: Accelerometer + magnetic base
- Shipping: FedEx/UPS/DHL (2-3 business days)
- Warranty: 12-month full coverage
- Optional: COO document
FAQ
Q: What surfaces will the magnet stick to?
A: All ferrous metals including steel and cast iron.
Q: Can I use this in explosive areas?
A: Yes – ATEX/IECEx certified for Zone 0 hazardous locations.
Q: Minimum surface temperature for magnetic hold?
A: Maintains grip down to -40°C (-40°F).
Q: How accurate is temporary mounting?
A> Within ±3% of stud-mounted accuracy when on flat surfaces.
Q: Power consumption?
A: <800 µA – works with most portable analyzers.
