Description

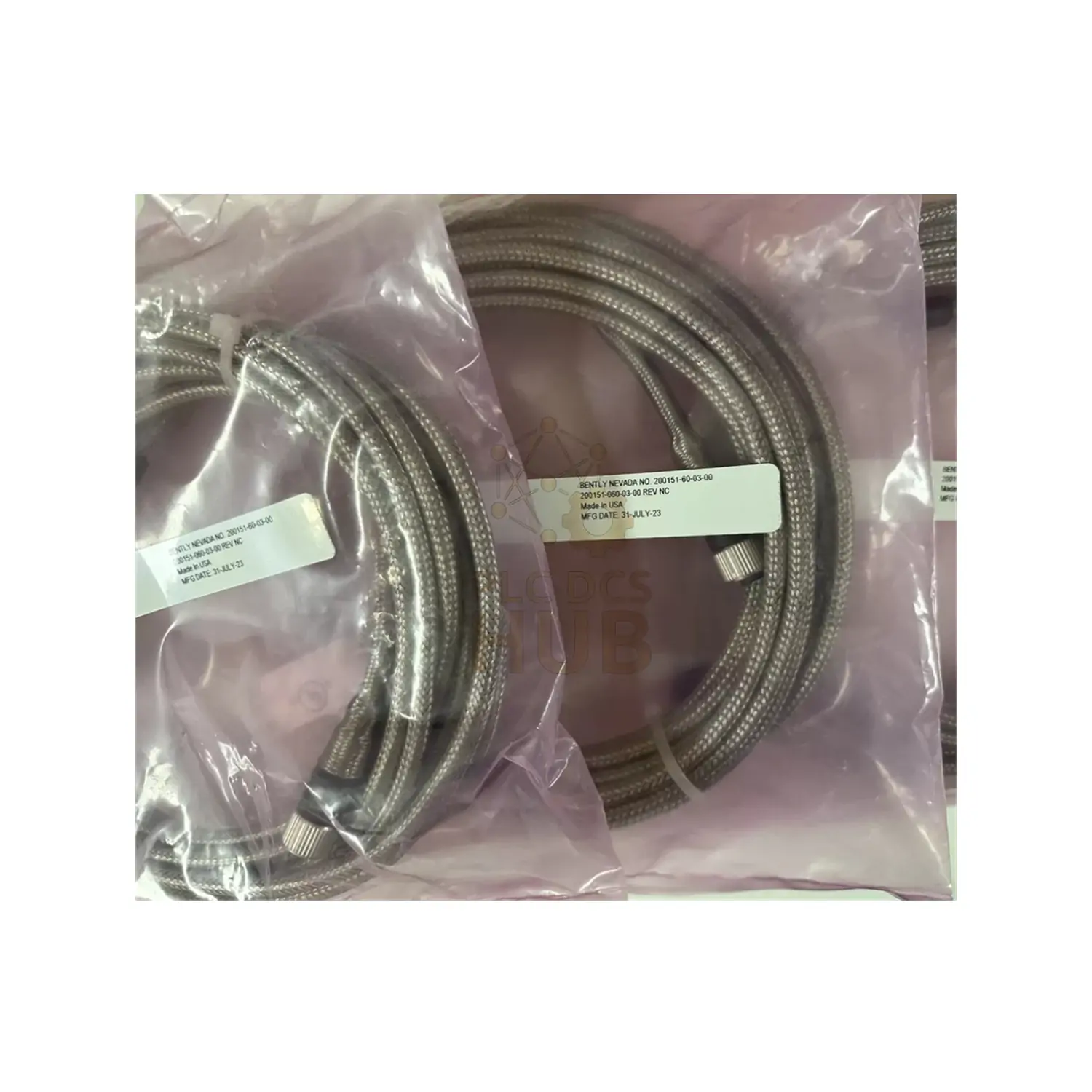

Bently Nevada 200151-20-03-10 Armored Accelerometer Cable
Industrial-grade vibration monitoring cable with stainless steel armor for extreme environments. Ensures signal integrity in high-interference areas like offshore platforms and mining operations. Compatible with Bently Nevada condition monitoring systems.
Complete Specifications
| Full Model ID | 200151-20-03-10 |
| Suffix Breakdown | -20 (2.0m) | -03 (Armored) | -10 (Enhanced Nuts) |
| Conductors | 4x 22 AWG + drain wire |
| Shielding | Braided copper (85% coverage) |
| Parameter | Value |
|---|---|
| Operating Temp | -20°C to +100°C (Flexible use) |
| Storage Temp | -55°C to +121°C |
| Min Bend Radius | 63.5mm (4x cable diameter) |
| Jacket Material | Blue PVC with steel armor |
| Seal Cure Time | 24 hours (with DC4 compound) |
Armored Cable Installation
- Ground armor at one end only for EMI protection
- Maintain minimum 63.5mm bend radius during routing
- Use conduit in areas with sharp edges
Extreme Environment Performance
- Withstands 500kg crush load (armored version)
- Resists UV degradation for outdoor use
- Oil/Chemical resistant jacket material
Technical FAQs
Q: What’s the weight difference with armor?
A: Armored version weighs 320g/m vs 180g/m unarmored.
Q: Can armor be grounded at both ends?
A: No, ground only at monitoring end to prevent ground loops.
Q: Does armor affect flexibility?
A: Yes, minimum bend radius increases to 100mm under -10°C.
Q: Compatible with hazardous areas?
A: Yes when used with IS barriers (ATEX/IECEx compliant).
Q: Difference between -02 and -03 suffixes?
A: -02 = Unarmored, -03 = Stainless steel armored.
