Description
Empty Certified Housing for Custom Installations

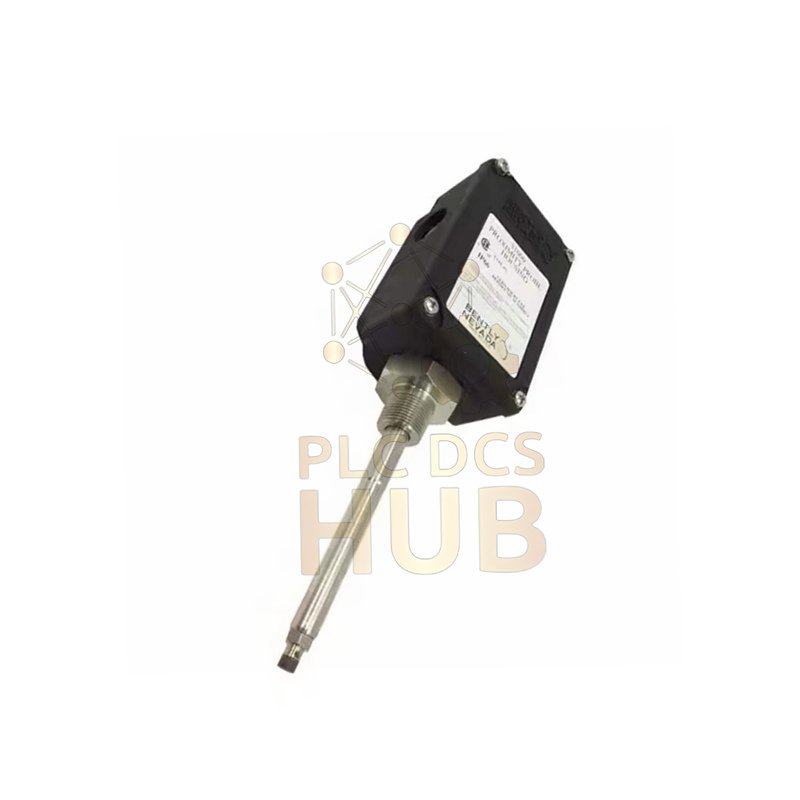

The Bently Nevada 31000-00-00-00-059-03-02 is an empty 31000 Proximity Probe Housing shell. It provides maximum flexibility. You install your own probe. This housing is perfect for upgrades or specific sensor needs.
Part Number Configuration
- Base Model 31000: Proximity Probe Housings Series
- Suffix 00: Probe Not Included
- Suffix 00: Probe Cable Not Included
- Suffix 00: No Standoff Adapter
- Suffix 059: Probe Penetration = 5.9 inches
- Suffix 03: Comprehensive Fittings Kit
- Suffix 02: Mounting Thread = 3/4-14 NPT
Key Features and Benefits
- Build Your Own System: Use with your preferred Bently Nevada 8mm probe.
- Superior Protection: IP66 and CSA Type 4X rating for dust, water, and corrosion.
- Complete Seal Kit: Includes cable seal grips for three different cable sizes.
- Hazardous Area Ready: Conductive housing dissipates static electricity safely.
- Rugged Construction: Impact tested to survive tough industrial environments.
Complete Technical Specifications
- Manufacturer Part: 31000-00-00-00-059-03-02
- Housing Material: Conductive, Glass-Filled Polyphenylene Sulfide (PPS)
- Internal Sleeve: AISI 304 Stainless Steel with Chain
- External Hardware: AISI 303 Stainless Steel
- Seal Material: Neoprene O-ring
- Mounting Thread: 3/4-14 NPT
- Probe Penetration: 5.9 inches
- Included Fittings: Two plugs, one 3/4-14 NPT fitting, one reducer, cable seal grips with grommets
- Protection Ratings: CSA Type 4X, IP66 (Dust-tight, Powerful Water Jet)
- Impact Strength: BASEEFA certified for 4 Joule impacts at high/low temperatures
- Load Strength: Supports 912 N (205 lb) static load
- Retaining Nut Torque: 29.4 N·m (260 in-lb) recommended
- Temperature Range: -51°C to +105°C (-60°F to +221°F)
- Weight: 1.2 kg (2.6 lb) typical
- Origin: Made in USA
What’s Included in the Kit
- One empty PPS housing with cover and internal stainless sleeve.
- Neoprene O-ring for sleeve-to-housing seal.
- Two pipe plugs, one 3/4-14 NPT fitting.
- One 3/4-14 to 1/2-14 NPT stainless steel reducer.
- Cable seal grip with grommets for 1/8″ to 3/8″ cables.
Purchase Information
- This is a new, original Bently Nevada part in factory packaging.
- It is covered by a 12-month warranty against defects.
- We ship worldwide quickly via FedEx, UPS, and DHL express services.
Frequently Asked Questions
Product Understanding
- Does this housing come with a probe?
- No. The suffix codes “00” indicate no probe or cable is included. You supply a compatible 3300 XL 8mm probe separately.
- What is the “cable seal grip” for?
- It creates a watertight seal where your probe’s cable enters the housing. The kit includes grommets for different cable diameters.
Selection & Application
- When should I buy an empty housing instead of a complete kit?
- Choose an empty housing if you already have a probe, need a specific probe model, or are doing a system upgrade.
- Can this housing withstand high pressure?
- No. It is rated for environmental protection (water, dust) but is not designed to contain internal or external pressure.
Expert Guidance
- What probe is compatible with this housing?
- You need a Bently Nevada 3300 XL series 8mm diameter proximity probe with the appropriate length for the 5.9″ sleeve.
