Description
Universal Housing for Your Own Probe

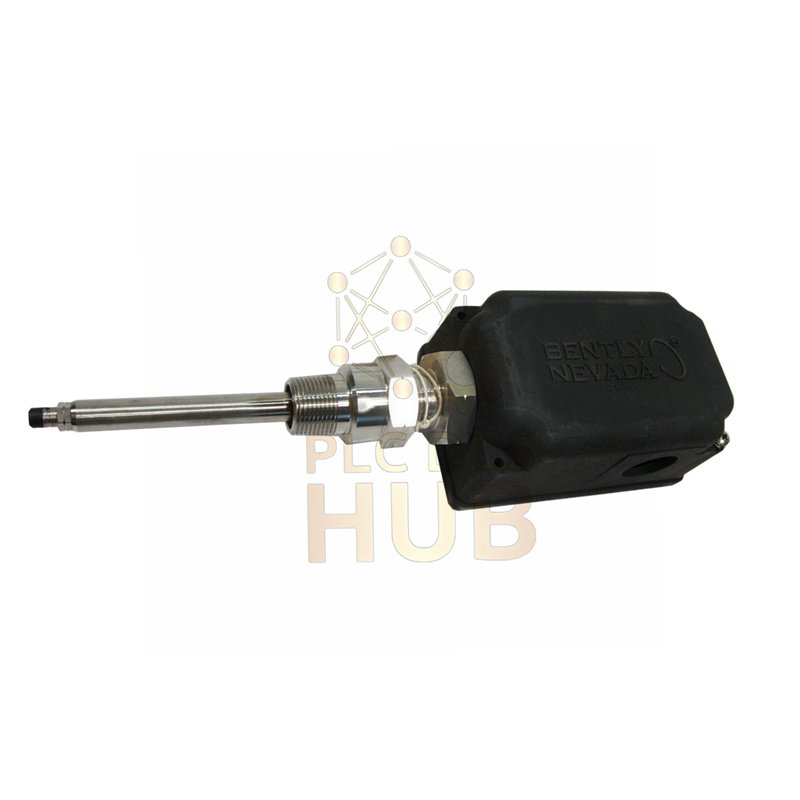

This is the Bently Nevada 31000 Proximity Probe Housing Assembly, part 31000-00-00-00-070-03-02. It is an empty, versatile housing. Perfect if you already have a 3300 XL 8 mm probe. This kit includes all necessary fittings and a cable seal. Build a custom, protected sensor point for your unique application.
Product Specifications & Options
- Core Product Info
- Brand: Bently Nevada
- Model Number: 31000-00-00-00-070-03-02
- Function: Protective Housing Only (No Probe)
- Decoding the Part Number
- First -00 : Probe not included. Use your own.
- Second -00 : No internal probe cable supplied.
- Third -00 : No standoff adapter in this kit.
- -070 : Maximum probe penetration is 7.0 inches.
- -03 : Includes fitting kit and a versatile cable seal grip.
- -02 : Housing base thread is 3/4-14 NPT.
- Durable Construction
- Main Body: Tough, conductive PPS plastic.
- Sleeve & Chain: AISI 304 stainless steel.
- Exterior Hardware: AISI 303 stainless steel screws.
- Primary Seal: Neoprene O-ring for weatherproofing.
- Installation Torque: Apply 29.4 N·m to the retaining nut.
- Product Weight: About 1.2 kg.
- Environmental Ratings
- Operating Temp: -51°C to +105°C.
- Enclosure Protection: Rated NEMA 4X and IP66.
- Impact Rating: Certified to withstand 4 Joule impacts.
- Load Bearing: Housing structure supports over 200 lbs.
- Safety Standard: Meets CENELEC for hazardous areas.
- Order & Support Information
- Shipping Options: We ship worldwide with FedEx, UPS, DHL.
- Warranty Coverage: All parts have a 12-month warranty.
- Technical Help: Click to chat with our support team on WhatsApp.
Frequently Asked Questions
Product Contents & Use
Q: What exactly do I receive with this order?
A: You get the empty housing body, stainless steel sleeve, fitting kit (-03), and cable seal grip. No probe or cable is included.
Q: What is the cable seal grip used for?
A: It creates a watertight seal where your probe’s cable exits the housing. It includes grommets for cables from 1/8″ to 3/8″ diameter.
Compatibility & Selection
Q: What probe can I install in this housing?
A> It is designed for standard Bently Nevada 3300 XL 8 mm proximity probes. Ensure your probe’s length fits the 7.0″ penetration.
Q: Why would I buy this instead of a complete kit?
A: This is cost-effective. Use it if you have spare probes, need a specific cable length, or are replacing just a damaged housing.
Installation Tip
Q: How do I use the included fittings?
A: The reducer adapts the 3/4″ NPT port to 1/2″ NPT. The plugs seal unused ports. The cable seal grip installs in one port for the cable.
