Description
Product Summary

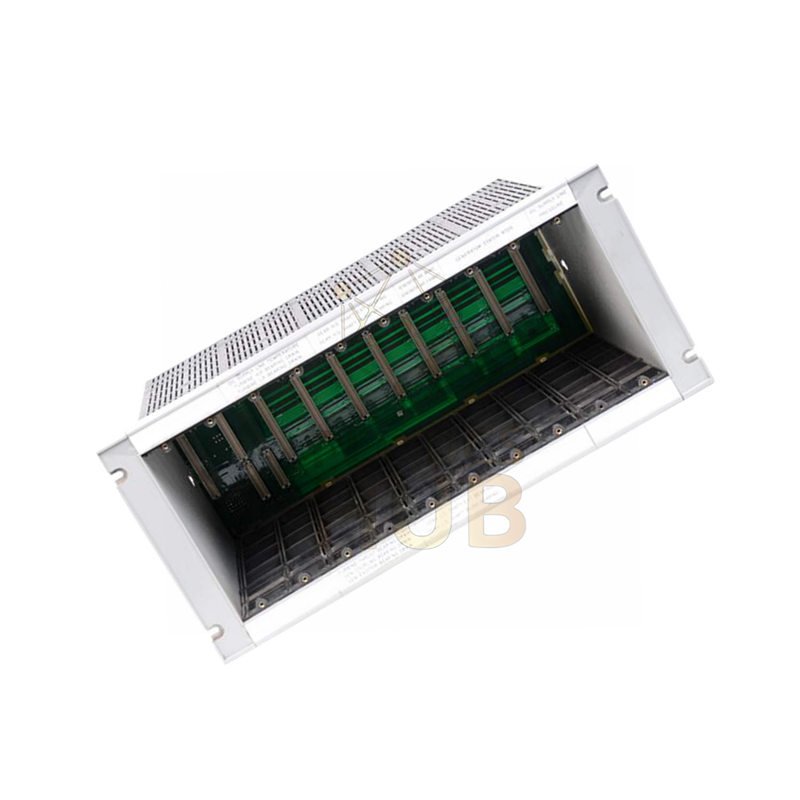

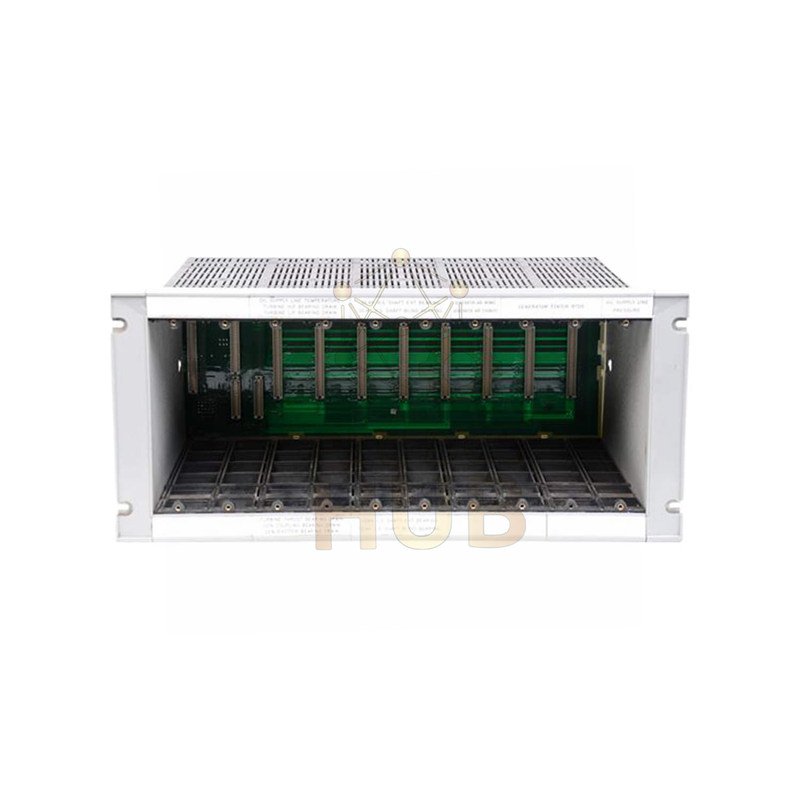

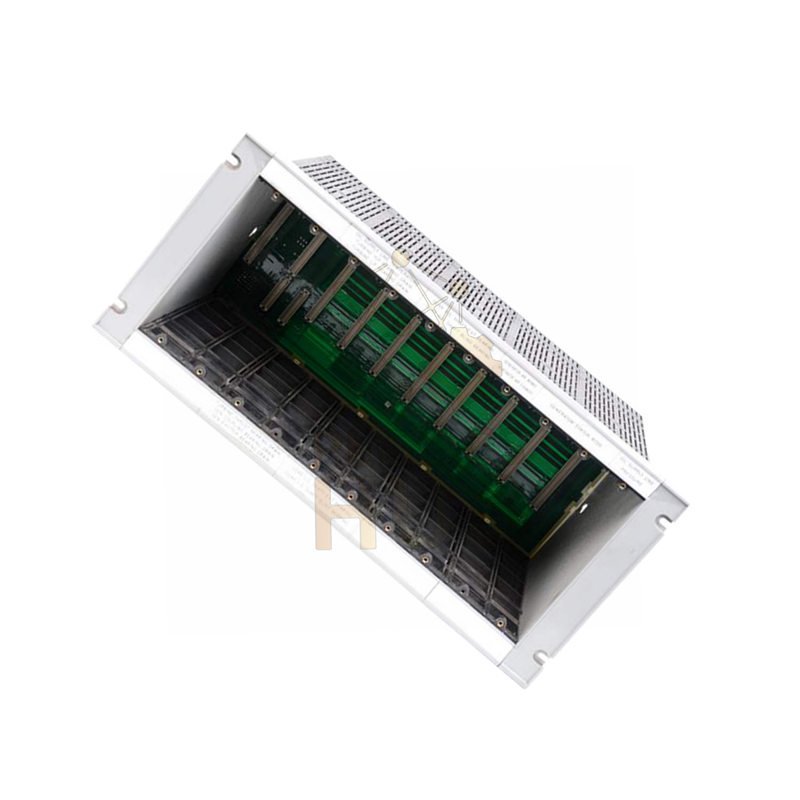

- Brand: Bently Nevada
- Model: 3300/05-24-00-00
- Series: 3300 Series
- Type: 10 Slot System Rack
- Main chassis for 3300 monitoring modules.
- Provides power, structure, and signal routing.
- Built for continuous industrial operation.
Rack Configuration Details
- Slot Count: 10 positions
- Ordering Code: Position 24 = 10 slot
- Mounting: Standard frame mount
- Agency Option: Not required
- Supports mixed monitor module layouts.
Mechanical Specifications
- Weight: 27 lbs (12.2 kg)
- Width A: 23.00 inches
- Width B: 20.18 inches
- Width C: 20.58 inches
- Rigid metal frame improves system stability.
Environmental & Reliability
- Designed for harsh industrial plants.
- Stable under vibration and thermal stress.
- Supports long service life.
Hazardous Area Approvals
- CSA Option 01: Class I Div 2 Groups A–D
- Temperature Class: T4 up to 65°C
- CSA Certificate: 150368-1002151
- ATEX Option 02: II G EEx nC IIC
- ATEX Range: -20°C to +60°C
- ATEX Certificate: BN26744C-55A
System Advantages
- Centralizes monitoring modules.
- Simplifies wiring and maintenance.
- Improves overall system reliability.
- Easy expansion within 3300 platform.
Typical Applications
- Turbine monitoring systems.
- Compressor protection racks.
- Power generation units.
- Oil and gas rotating equipment.
Package & Warranty
- 1 × 3300/05-24-00-00 Rack.
- Secure industrial packaging.
- Warranty: 12 months.
Shipping Options
- FedEx global express.
- UPS international service.
- DHL worldwide delivery.
FAQ
- What is the main role of this rack?
- It holds and powers all 3300 monitoring modules.
- How many modules can it support?
- Up to ten standard 3300 series modules.
- Is hazardous approval always required?
- No. It depends on site safety rules.
- What is a common field installation tip?
- Leave space for airflow and cable routing.
- How do I choose the right rack size?
- Count current modules and future expansion.
