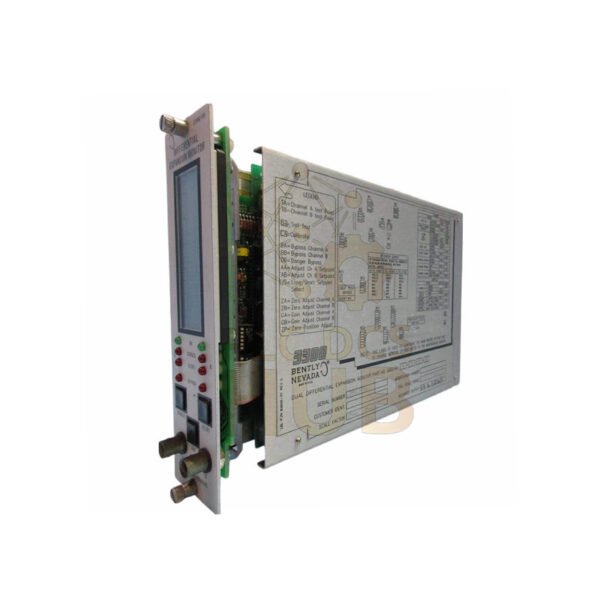

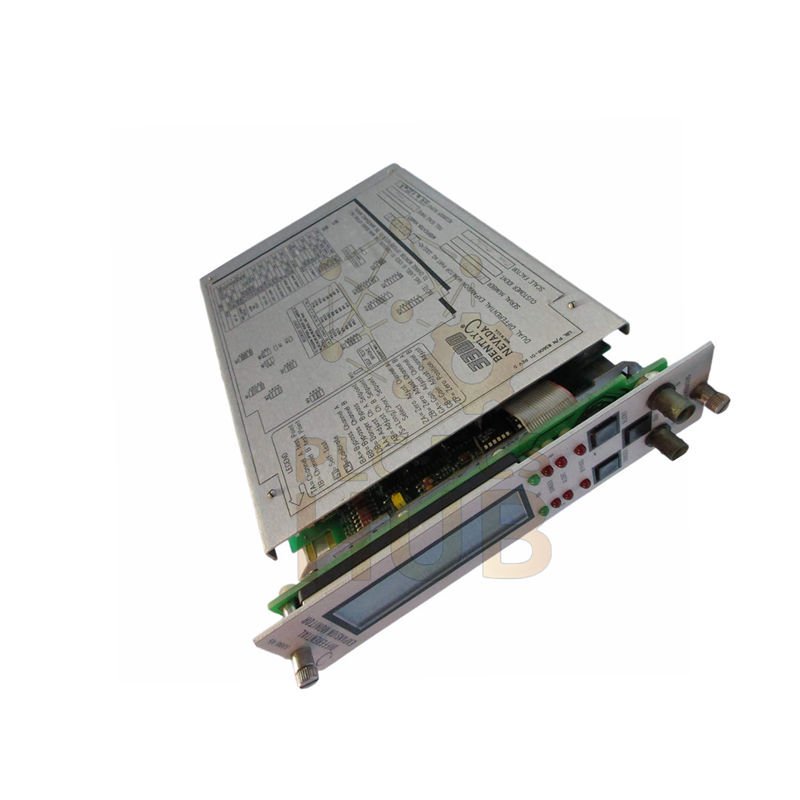

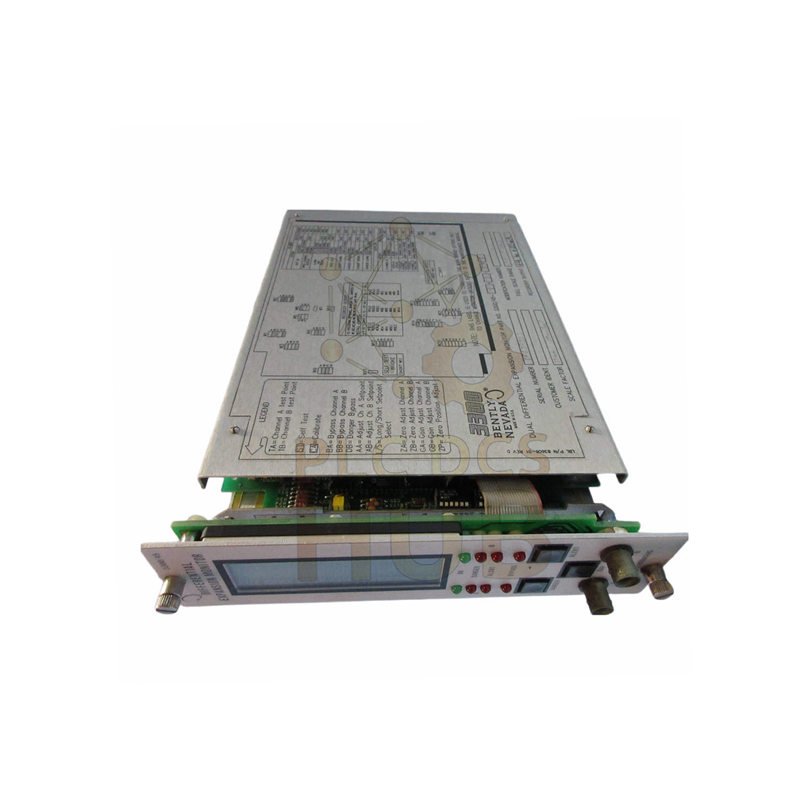

Bently Nevada 3300/45-03-02-00-00 | Dual Channel Differential Expansion Monitor

Description

Product Overview: Precision Differential Expansion Monitoring

Track critical rotor-to-casing movement with accuracy. The Bently Nevada 3300/45-03-02-00-00 monitor ensures machine safety. It detects small changes before they become big problems. This dual-channel system offers reliable, continuous protection for turbines and compressors.

Core Technical Specifications

• Identification
  • Manufacturer: Bently Nevada
  • Series: 3300 Series
  • Model: 3300/45-03-02-00-00
  • Type: Dual Differential Expansion Monitor
• Power & Signals
  • Supply Voltage: 24-30V DC
  • Analog Outputs: Dual 4-20 mA Signals
  • Voltage Output: 0-10 VDC Option
  • Output Impedance: < 500 Ohms
• Measurement Performance
  • Range: 0 to 10.0 mm
  • Resolution: 0.01 mm
  • Accuracy: ±0.1% Full Scale
  • Linearity: Better than 0.5%
  • Response Time: < 5 ms
• Environmental Durability
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -50°C to +100°C
  • Vibration Resistance: Up to 5 Grms
  • Protection Rating: IP66 Enclosure
• Electrical Connections
  • Input Power: 2-Pin Removable Terminal
  • Signal Outputs: 4-Pin Removable Terminal
  • Sensor Input: LEMO-style Connectors

Key Features & Benefits

• Dual Channel Design: Monitor two points simultaneously for complete coverage.
• High Accuracy: ±0.1% full scale accuracy catches minute changes.
• Rugged Construction: Built for harsh plant environments from -40°C to +85°C.
• Easy Integration: Standard 4-20mA output works with any control system.
• Fast Response: Under 5 ms response time for real-time protection.
• Simple Setup: Clear terminals and connectors reduce installation time.

Warranty & Shipping

• All products include a 12-month warranty against defects.
• We ship globally via FedEx, UPS, and DHL express services.
• Tracking number is provided immediately after dispatch.

Frequently Asked Questions

• What does “differential expansion” mean?
• It measures the growth difference between a rotor and its casing during machine start-up or shutdown.
• Why are two channels important?
• Two channels let you monitor both ends of a rotor. This gives a complete picture of machine health.
• How does high accuracy help my operation?
• Early detection of small changes allows planned maintenance. This prevents unexpected downtime and costly damage.
• Can this unit operate in very cold locations?
• Yes. Its rated from -40°C. In very cold sites, ensure signal cables are rated for low temperature to prevent stiffening.
• How do I choose the right monitor for my machine?
• First, know your expected expansion range. This 0-10mm model suits many turbines. Always check machine OEM specifications for required range and accuracy.
