Description
Product Overview

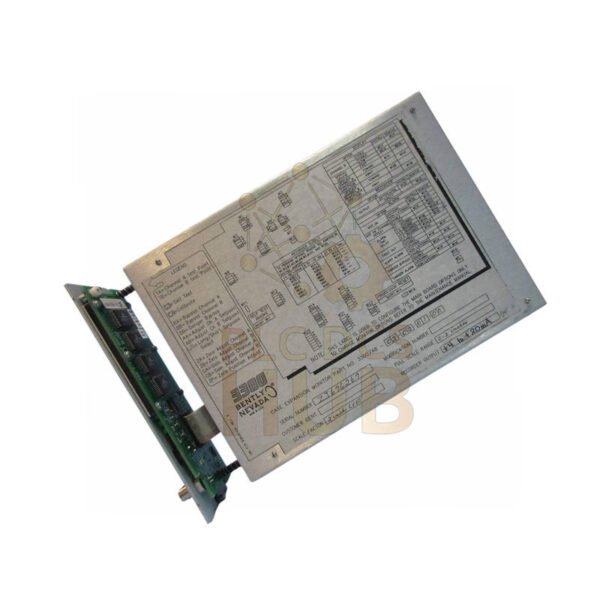

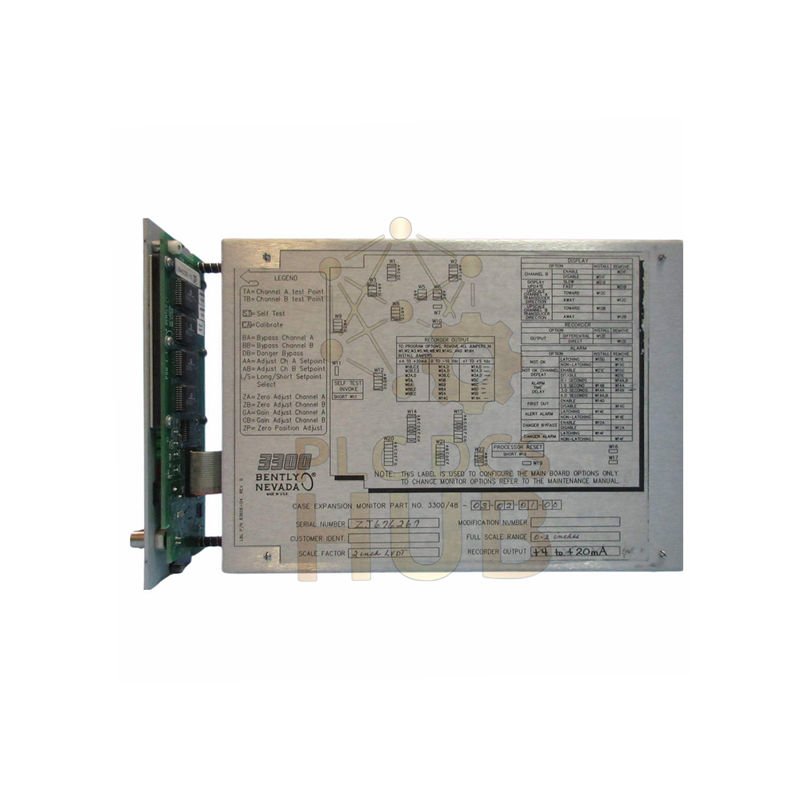

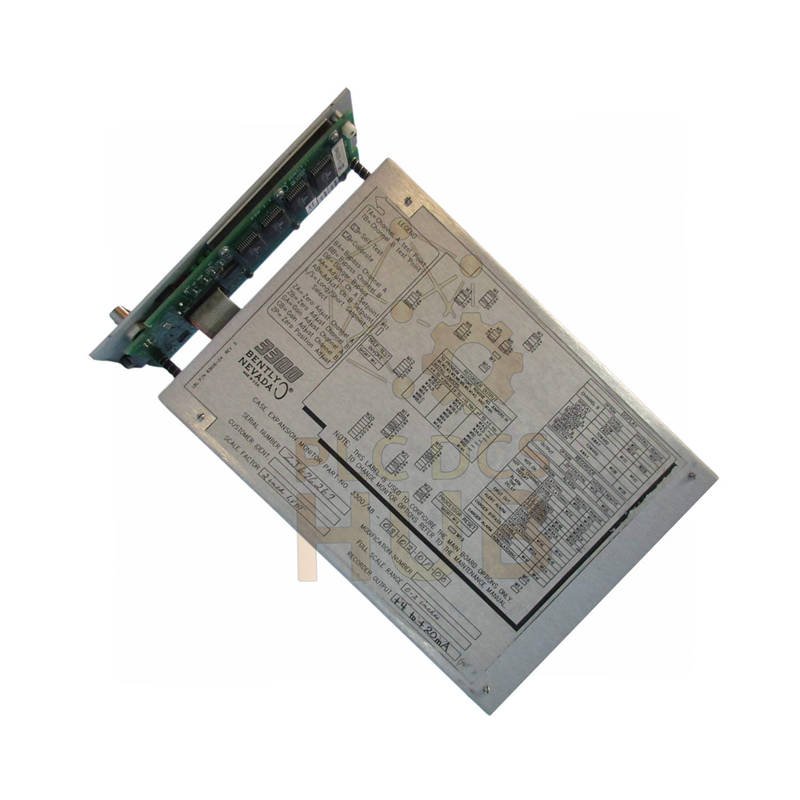

Monitor machine case expansion accurately with the Bently Nevada 3300/48-03-02-01-00. This reliable sensor provides continuous protection. Its robust design ensures performance in tough industrial conditions. The two-wire setup makes installation simple and cost-effective.
Key Features & Benefits
- Precise Monitoring: Tracks case expansion within ±0.5 inches (±12.7 mm).
- Robust Protection: IP67 rating defends against dust and water ingress.
- Easy Installation: Flange mount and two-wire connection save time and effort.
- Wide Compatibility: Works with most PLCs and control systems using 4-20mA signal.
- Fast Response: 0-100 Hz frequency captures rapid machine changes.
Complete Technical Specifications
- Brand & Model
- Brand: Bently Nevada
- Series: 3300 Series
- Model: 3300/48-03-02-01-00
- Core Performance
- Measurement Range: ±0.5 in (±12.7 mm)
- Frequency Response: 0-100 Hz
- Output Signal: 4-20 mA, Two-Wire
- Power Supply: 10-30 VDC
- Detailed Parameters
- Sensitivity: High, detects minute changes
- Linearity: Excellent signal accuracy
- Resolution: Fine for detailed monitoring
- Temperature Range: -20°C to 80°C
- Build & Environment
- Environmental Rating: IP67 (Dust and Water Tight)
- Anti-Interference: Built-in noise resistance
- Mounting: Standard flange with bolt pattern
- Connection: Industrial-grade terminals
Installation Guide
- Mount on a clean, flat surface using provided bolts.
- Connect the two wires observing correct polarity.
- Ensure power supply is within 10-30 VDC range.
- Verify all seals are tight for IP67 protection.
Commissioning & Maintenance
- Calibrate during initial setup for best accuracy.
- Check 4-20mA output with a meter periodically.
- Clean sensor body to prevent debris buildup.
- Inspect mounting hardware annually for security.
- No routine lubrication or complex upkeep needed.
System Compatibility
- Compatible with standard PLC and DCS inputs.
- Works with most machinery protection systems.
- Fits standard industrial power supplies.
Certifications & Standards
- Designed to meet global industrial standards.
- IP67 certification validated.
Package Includes
- One 3300/48-03-02-01-00 Vibration Sensor.
- Complete mounting hardware kit.
- Detailed user manual and data sheet.
Warranty & Shipping Info
- 12-Month Warranty: Full coverage on defects.
- Global Shipping: Via FedEx, UPS, or DHL.
- Real-time tracking provided for all orders.
Typical Application Scenarios
- Gas and Steam Turbine Case Expansion.
- Critical Pump and Compressor Monitoring.
- Generator and Large Motor Protection.
- Industrial Machinery Predictive Maintenance.
Advanced Diagnostic Capability
- Early fault detection through trend analysis.
- Continuous 4-20mA signal allows real-time monitoring.
- Integrates with diagnostic software for health reports.
Frequently Asked Questions
- What is the main use of this sensor?
- It monitors case growth on large rotating machines like turbines.
- Is calibration difficult?
- No, initial calibration is straightforward and well-documented.
- Can it withstand outdoor plant conditions?
- Yes, the IP67 rating makes it suitable for harsh environments.
- Based on field experience, what is a common installation tip?
- Ensure the mounting surface is clean and flat for best accuracy. Vibration from loose mounts can cause false readings.
- How do I choose between sensor models?
- Match the measurement range and output signal to your system requirements. This model is ideal for standard case expansion.
How to Choose This Product
- Select for case expansion monitoring needs.
- Confirm your system uses 4-20mA input signals.
- Choose for easy flange mount installation.
- Ideal for environments requiring IP67 protection.
- Perfect for predictive maintenance programs.
