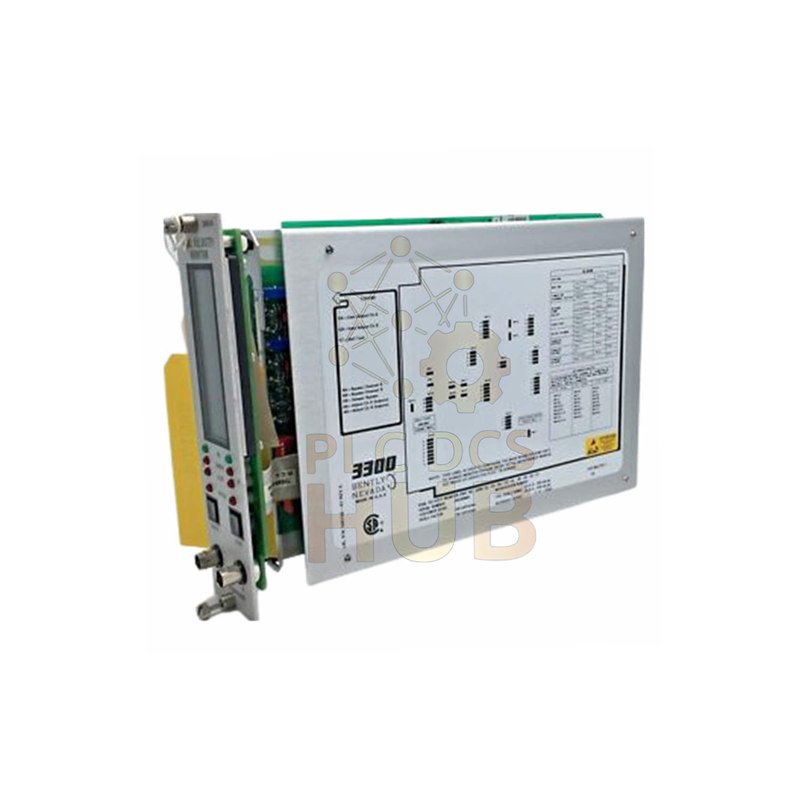

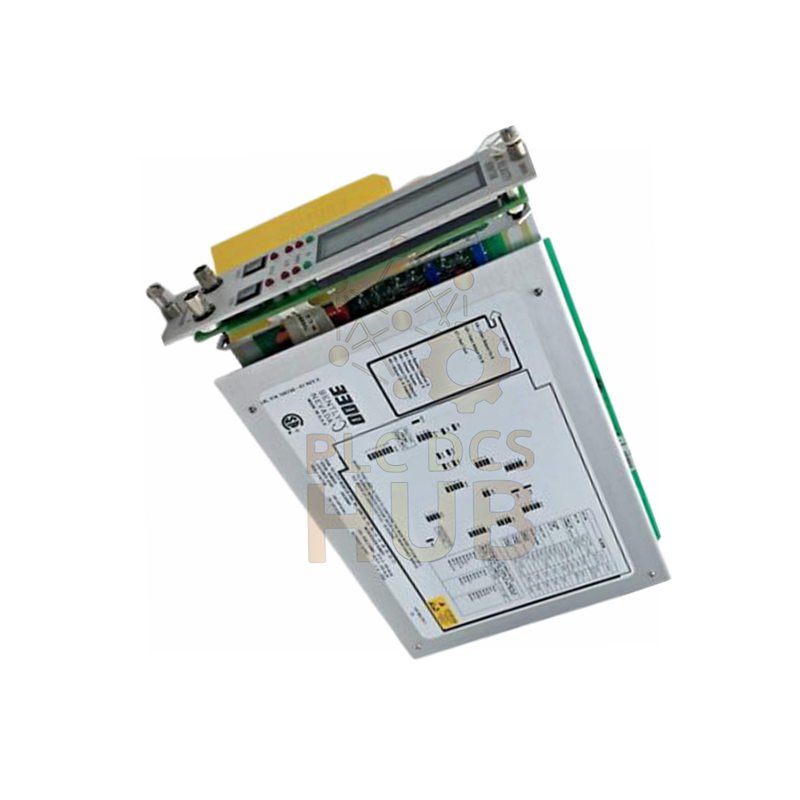

Bently Nevada 3300/50-02-02-00-00 Tachometer Monitor | Speed Module

Description

Product Overview

• Brand: Bently Nevada
• Model: 3300/50-02-02-00-00
• Series: 3300 Series
• Industrial tachometer monitor for accurate RPM measurement.
• Designed for machinery protection and condition monitoring.
• Stable analog output for PLC and DCS systems.

Key Technical Specifications

• Speed Range: 0–9999 RPM
• Accuracy: ±1 RPM
• Output: 4–20 mA current loop
• Load Resistance: Max 250 ohms
• Response Time: < 1 second
• Filter: Programmable low-pass 1–1000 Hz
• Power Supply: 24 VDC ±10%

Mechanical & Environmental

• Size: 2.0 × 13.0 × 9.0 inches
• Weight: 1.2 kg
• Operating Temp: -40°C to +85°C
• Storage Temp: -50°C to +100°C
• Humidity: Up to 95% RH non-condensing

Installation & Use

• DIN rail mounting for fast installation.
• Front access simplifies setup.
• No routine calibration required.

Compatibility

• Compatible with speed and proximity sensors.
• Works with Bently Nevada 3300 racks.
• Direct connection to PLC and DCS analog inputs.

Applications & Diagnostics

• Turbines, compressors, pumps, and motors.
• Detects overspeed and unstable rotation.
• Supports predictive maintenance.

Package & Warranty

• 1 × Bently Nevada 3300/50 Tachometer Monitor.
• Industrial protective packaging.
• Warranty: 12 months.

Shipping

• FedEx worldwide express.
• UPS international delivery.
• DHL global shipping.

FAQ

• Is this unit suitable for continuous operation?
• Yes. It supports long-term industrial use.
• Can it replace older 3300 tachometer modules?
• Yes. It offers direct functional compatibility.
• How do I select the right tachometer?
• Check RPM range, output type, and temperature limits.
