Description

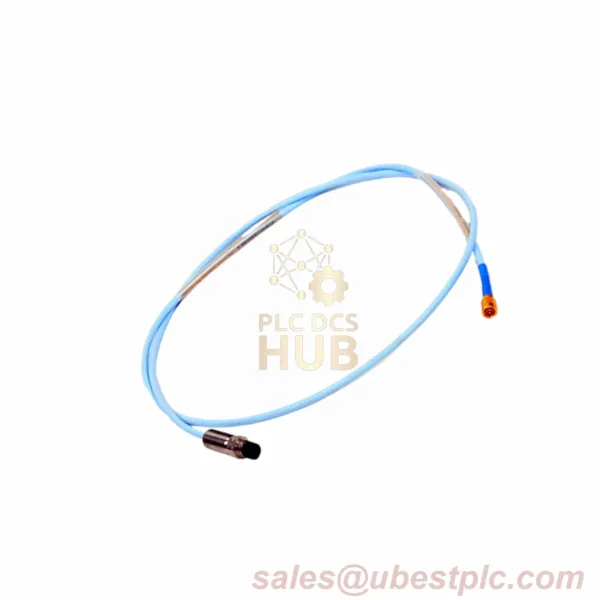

330901-00-12-05-01-05 | 3300 NSv Proximity Probe
High-performance industrial sensor designed for precision measurement in extreme conditions. 1-year warranty included.
Core Specifications
- Thread: 1/4-28 UNF (Max engagement 0.375″)
- Length: 0.5m (20″) unarmored cable
- Resistance: 4.0Ω ±0.5 (Center to outer conductor)
- Weight: 14-150g (0.5-5.3oz)
Technical Details
- Torque: Max 7.3N•m (65in•lb) | Recommended 5.1N•m (45in•lb)
- Temp Range: -52°C to +177°C (Operational & Storage)
- Seal: Viton O-ring (Not pressure-tested)
- Cable: 75Ω FEP coaxial (0.5/1/5/7m options)
Compliance & Support
- Certifications: ATEX, IECEx, CSA, UKCA
- Warranty: 12 months from shipment date
- Material: AISI304 SST case | PPS tip
Critical Note: Exposure below -34°C (-30°F) may compromise pressure seals. Not submersible.
