Description
Bently Nevada 3300 NSv Proximity Probe: Precision Monitoring for Industrial Machinery
Product Description

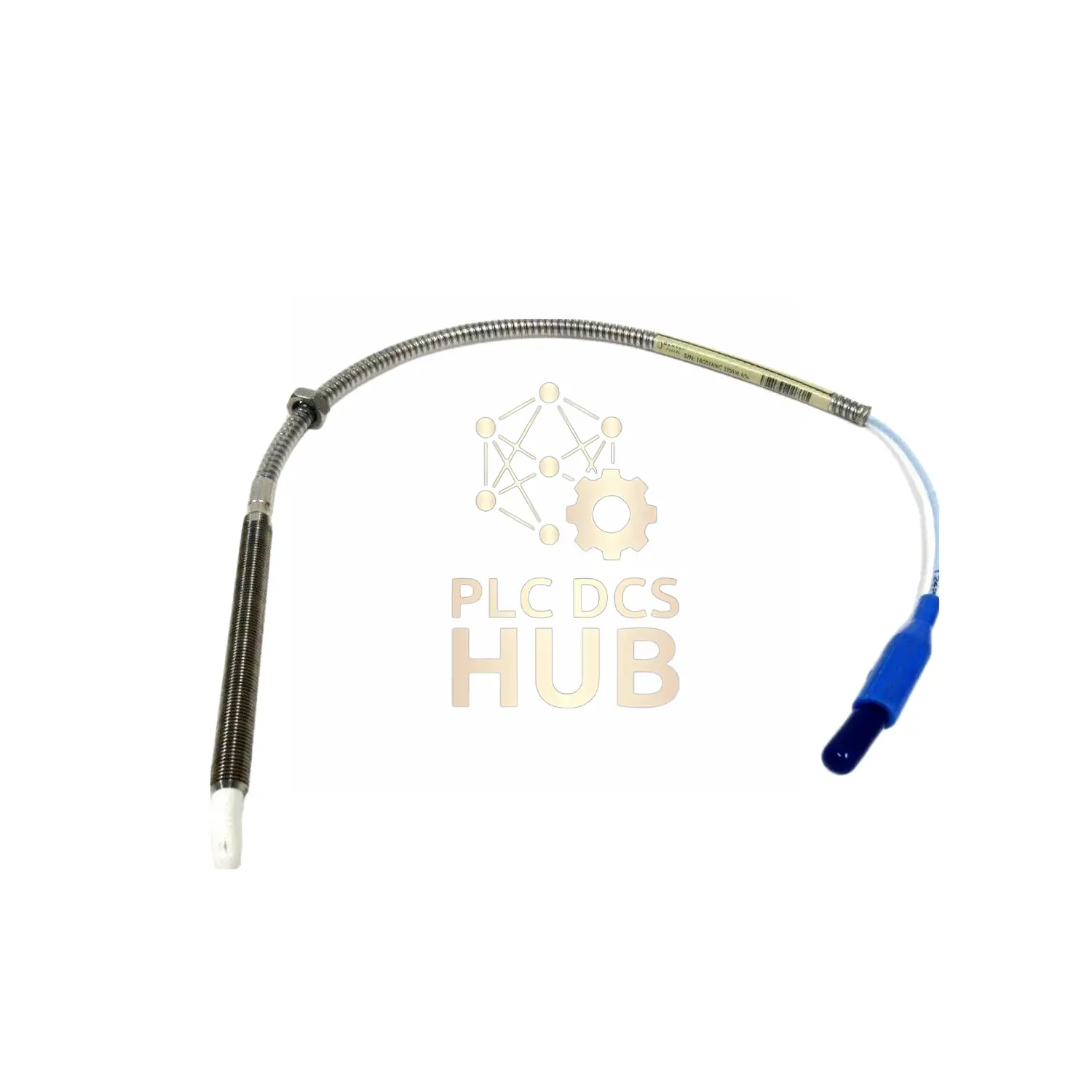

Brand-new Bently Nevada 330904-00-15-50-02-05 proximity probe with factory sealing. Features M8X1 threading, 150mm case length, and 5.0m armored cable with ClickLoc connector. Engineered for chemical resistance and backward compatibility with 3300 RAM systems. Ideal for critical shaft monitoring in compressors, turbines, and rotating equipment.
Key Technical Data
- Brand: Bently Nevada
- Model: 330904-00-15-50-02-05 (M8X1 thread, 00mm unthreaded, 150mm case, 5.0m cable, ClickLoc, Multi-Approvals)
- Linear Range: 1.5mm (60 mils) | Gap Setting: 1.0mm (40 mils)
- Accuracy: ±0.06mm DSL | Scale Factor: 7.87 V/mm (±12.5%)
- Temp Range: -52°C to +177°C | Frequency Response: 0-10 kHz
- Output Signal: -1 to -13 Vdc linear voltage
- Probe Resistance: 5.3Ω ±0.7 | Cable: 75Ω coaxial FEP
Installation Guide
- Torque: 5.1 N·m (45 in·lb) recommended | Max: 7.3 N·m (65 in·lb)
- Thread Engagement: Max 12mm for M8X1
- Bend Radius: >25.4mm (1.0 in)
- Wiring: Use shielded triad cable (max 305m)
Certifications
Multiple agency approvals (Option 05) for global compliance.
Package & Warranty
- New unit in factory packaging
- 12-month manufacturer warranty
- Shipping: FedEx, UPS, DHL worldwide
FAQ
Q: Minimum target size?
A: 8.9mm diameter (13mm recommended).
Q: Pressure rating?
A: Viton O-ring seal (contact for pressure testing).
Q: Cable replacement?
A: Compatible with 3300-series extension cables.
