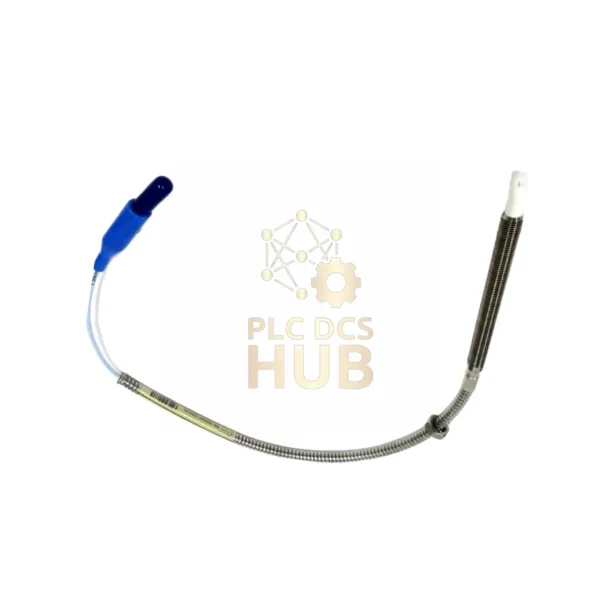

Bently Nevada 7m FluidLoc Proximity Probe with Armored Housing
New factory-sealed industrial sensor with extended 7-meter chemical-resistant cable. Designed for challenging installations requiring long-reach capability.
Complete Part Number Breakdown
- 330904: Base probe model
- 00: 0mm unthreaded section
- 15: 150mm stainless steel case
- 70: 7.0 meter cable length
- 12: FluidLoc cable with ClickLoc
- 00: No agency approvals required
Performance Specifications
- Cable resistance: 5.9 Ω ±0.9 Ω (7m length)
- Shield resistance: 0.066 Ω/m
- Detection sensitivity: 200 mV/mil
- Temperature range: -62°F to +351°F
- Max thread torque: 7.3 N•m (65 in•lb)
- Recommended torque: 5.1 N•m (45 in•lb)
Installation Parameters
- Optimal target distance: 1.0 mm (40 mils)
- Minimum bend radius: 25.4 mm (1.0 in)
- Maximum wiring distance: 305 meters
- Thread engagement: 12 mm maximum
Compatibility Details
Electrically matches all 3300 RAM systems. Features enhanced chemical resistance for harsh environments.
Material Construction
- Probe tip: Polyphenylene sulfide (PPS)
- Housing: AISI 304 stainless steel
- Cable: FEP-insulated coaxial
- Seal: Viton O-ring
Package & Support
- Factory-sealed with protector cap
- Includes connection accessories
- 12-month warranty
- Global shipping via FedEx/UPS/DHL
Technical FAQ
- Q: How does the 7m cable affect signal quality?
A: Designed for long runs with only 0.220 Ω/m center conductor resistance - Q: What makes FluidLoc cable special?
A: Superior chemical resistance for harsh environments - Q: Can this monitor high-speed equipment?
A: Yes, 0-10kHz frequency response suitable for most rotating machinery - Q: How to install on small shafts?
A: Reduce gap below 13mm diameter; see Figure 12 in manual - Q: Pressure rating for Viton seal?
A> Seals differential pressure; contact for custom pressure testing
Resource Center
Access installation diagrams and technical drawings: Download Technical Documents
