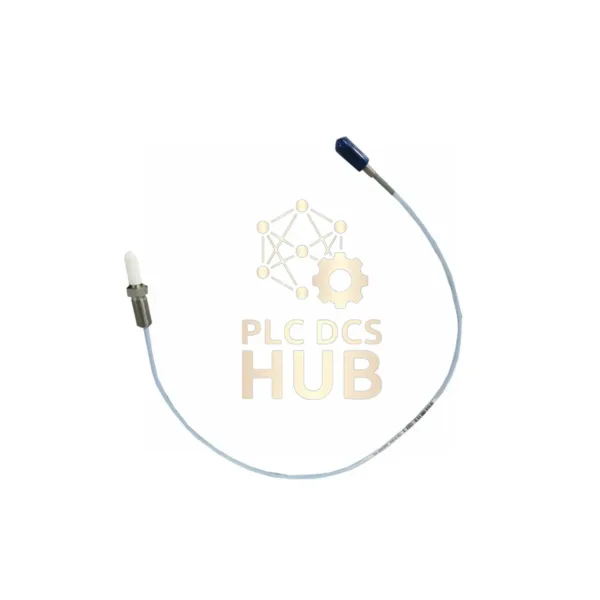

Bently Nevada 3300 NSv Proximity Probe | 330904-08-10-50-11-05

Description

Bently Nevada 3300 NSv Proximity Probe with FluidLoc Technology

Brand new industrial-grade vibration sensor with 12-month warranty. Features chemical-resistant FluidLoc cable for harsh environments. Ships fast via FedEx/UPS/DHL.

330904-08-10-50-11-05 DETAILS

• Base Model: 330904 (NSv Probe)
• Unthreaded Length: -08- → 80mm
• Case Length: -10- → 100mm
• Cable Length: 50 → 5.0 meters
• Connector Type: 11 → ClickLoc with protector
• Approvals: 05 → Multiple certifications

TECH SPECIFICATIONS

• Brand: Bently Nevada
• Model: 3300 NSv Proximity Probe
• DC Resistance: 5.3Ω ±0.7Ω
• Linear Range: 1.5mm (60 mils)
• Scale Factor: 7.87 V/mm
• Accuracy: ±0.06mm max deviation
• Frequency Response: 0-10 kHz (±3dB)
• Cable Type: 75Ω coaxial FEP FluidLoc

INSTALLATION TIPS

• Optimal gap setting: 1.0mm (40 mils)
• Max torque: 0.56 N•m (finger tight)
• Min target size: Ø13mm (0.5in)
• Cable min bend: 25.4mm radius

PROFESSIONAL FAQ

• Q: What makes FluidLoc cable special?
  A: Enhanced chemical resistance for harsh environments like chemical plants
• Q: Can I use this with existing 3300 RAM systems?
  A: Yes, fully compatible with older RAM probe installations
• Q: How does temperature affect accuracy?
  A: Stable performance across full -52°C to +177°C range
• Q: What’s the probe tip material?
  A: Polyphenylene sulfide (PPS) for durability
• Q: Maximum field wiring length?
  A: 305 meters (1000 feet) with shielded triad cable

GET PRODUCT DOCUMENTS

Download these resources now:

• Installation Manual (PDF)

Warranty Note: All probes include 12-month warranty against defects. Original factory packaging only.
