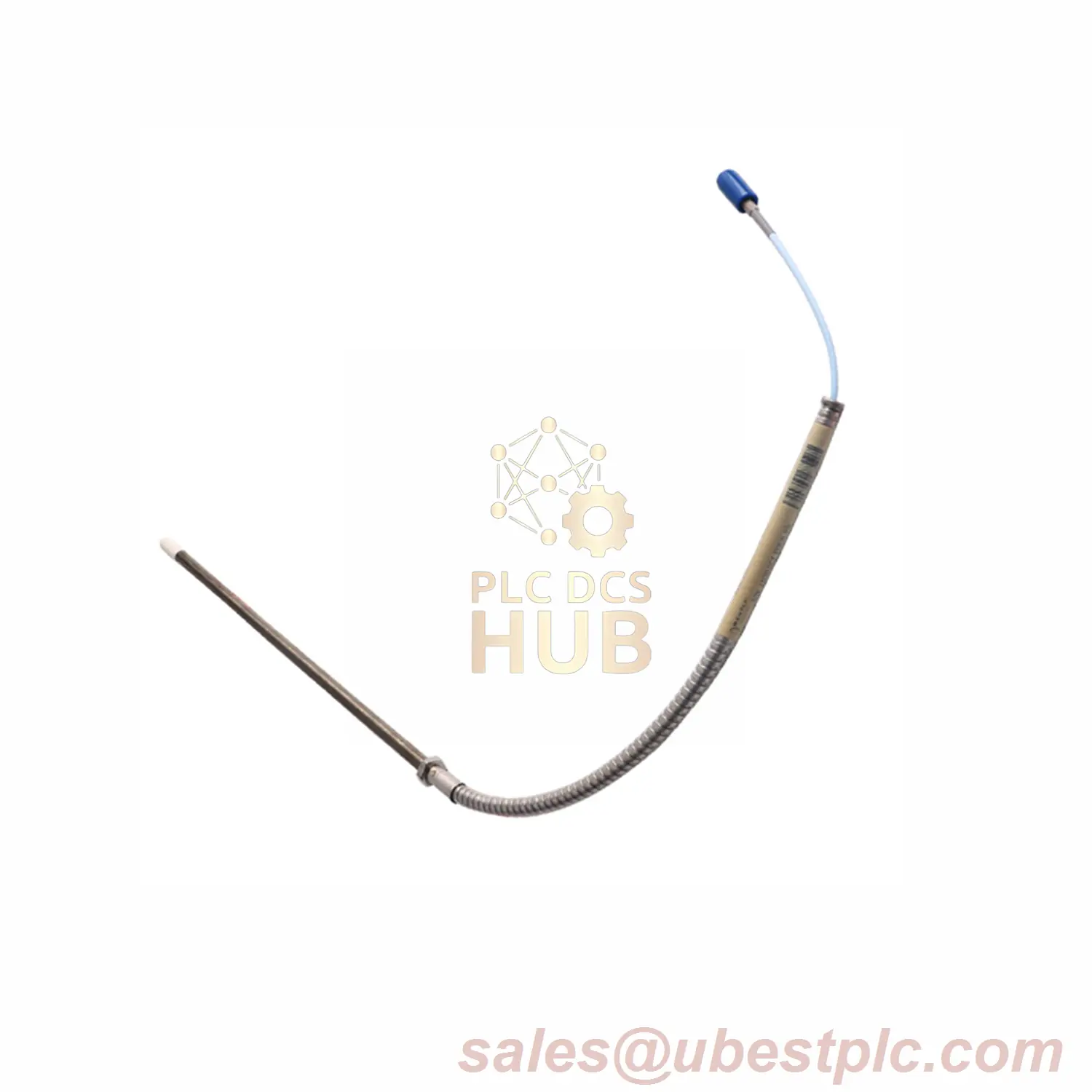

Bently Nevada 3300 NSv Proximity Probe | 330904-08-10-70-01-00

Description

Bently Nevada 3300 NSv Proximity Probe: Reliable Machine Health Monitoring

New factory-sealed proximity probe (Part 330904-08-10-70-01-00) with 12-month warranty. Ships fast via FedEx, UPS, or DHL.

Complete Model Number Explained

• 330904: Base model (M8X1 thread, armored)
• Options:
  • -08: 80 mm unthreaded section
  • -10: 100 mm total case length
  • -70: 7.0 meter cable
  • -01: ClickLoc connector + standard cable
  • -00: No agency approval needed

Key Technical Data

• Brand: Bently Nevada
• Electrical Resistance: 5.9 Ω ±0.9 Ω
• Sensitivity: 7.87 V/mm (±12.5%)
• Measurement Range: 0.25-1.75 mm
• Accuracy: ±0.06 mm deviation
• Temp Limits: -52°C to +177°C
• Cable Bend Radius: 25.4 mm minimum
• Thread Torque: 5.1 N•m recommended

Installation Made Simple

• Set gap to 1.0 mm (40 mils) from target
• Max thread engagement: 12 mm
• Use shielded triad cable (up to 305 meters)
• Finger-tight installation only

Industrial Toughness

• Stainless steel case (AISI 304)
• PPS probe tip resists chemicals
• Viton O-ring for pressure sealing
• Armored cable survives rough handling

Warranty & Shipping

• 12-month warranty
• Fast global delivery: FedEx/UPS/DHL
• Original factory packaging

Expert FAQs

• Q: Can I use this in high-pressure systems?
  A: Yes, Viton seals handle pressure – contact us for special testing.
• Q: What’s the difference between FluidLoc and standard cable?
  A: Standard cable (-01) works in most conditions; FluidLoc (-11) resists oils.
• Q: How long can the field wiring be?
  A: Up to 305 meters (1000 feet) with shielded triad cable.
• Q: Can I measure small shafts under 13mm?
  A: Yes, but reduce gap to maintain accuracy (see manual).
• Q: Is calibration required?
  A: Pre-calibrated – just set recommended 1.0mm gap.
