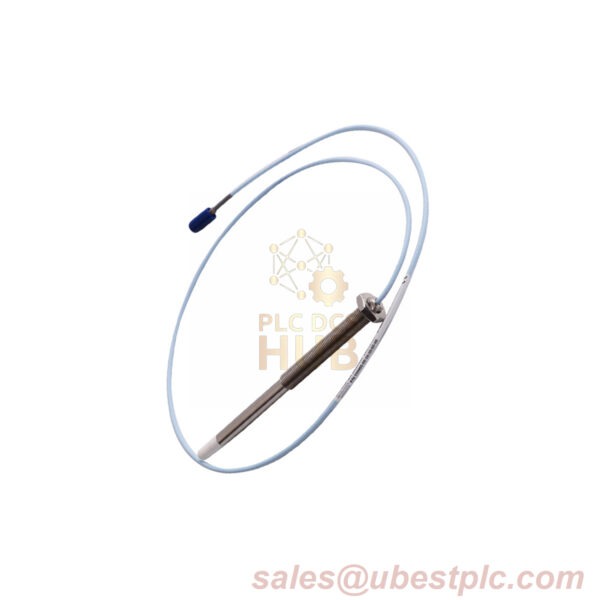

The Bently Nevada 330905-08-13-10-12-CN is a 3300 NSv Proximity Probe engineered for complex installations requiring partial threading and submersion resistance. Featuring an 80 mm unthreaded section, 130 mm (5.1″) stainless steel case, and 1.0 m (39″) FluidLoc® cable, this probe excels in chemically aggressive or submerged environments. Pre-certified for regional compliance, it delivers precision vibration monitoring while addressing unique mounting challenges in global markets.
Technical Specifications
- Model: 330905-08-13-10-12-CN
- Suffix Code Breakdown:
- -08: 80 mm (3.15″) unthreaded length
- -13: 130 mm (5.1″) total case length
- -10: 1.0 m (39″) FluidLoc® cable
- -12: ClickLoc™ connector + submersible cable
- -CN: Country-specific certifications (CCC, BIS, etc.)
- Electrical:
- Probe Resistance: 4.2 Ω ±0.5 (1.0m length)
- Linear Range: 1.5 mm (60 mils) | Gap: 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (±12.5%)
- Frequency Response: 0-10 kHz (±3 dB)
- Mechanical:
- Case Material: AISI 304 SST (threaded: 50 mm / unthreaded: 80 mm)
- Tip Material: PPS (NACE MR0175 compliant)
- Cable: FluidLoc® submersible design (IP68-rated)
- Torque Settings:
- Full Threads: 33.9 N·m max / 11.3 N·m recommended
- First 3 Threads: 22.6 N·m max / 7.5 N·m recommended
- Environmental:
- Operating Temp: -52°C to +177°C (-62°F to +351°F)
- Pressure Seal: Viton® O-ring (500 psi differential)
- Certifications: Regional (e.g., CCC China, BIS India)
