Bently Nevada – 3300 Nsv Proximity Probe 330909-00-15-10-11-00

Description

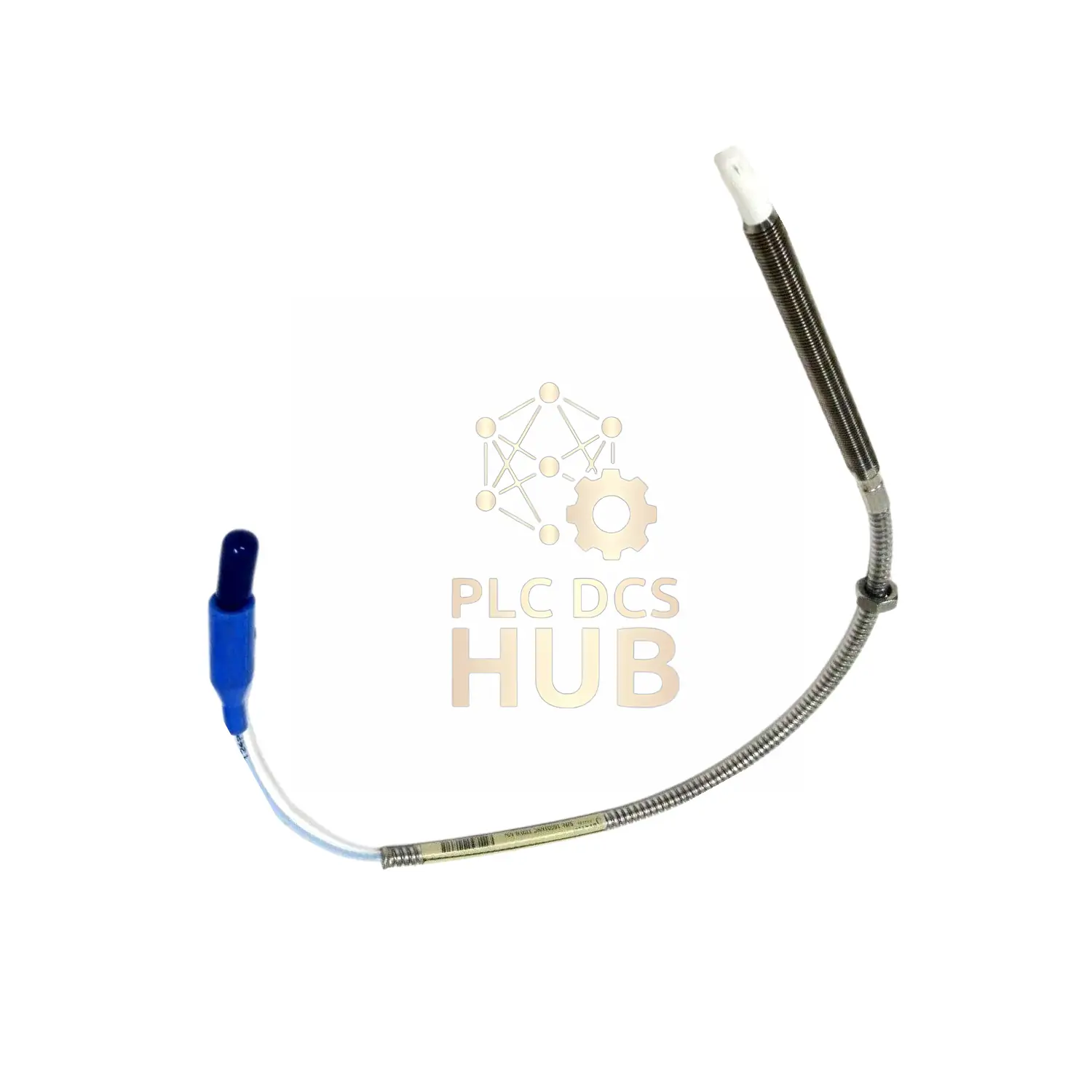

Armored Fluid-Resistant Proximity Probe with FluidLoc Cable

Heavy-duty vibration sensor with specialized fluid-resistant cable. Made in USA for wet and harsh industrial environments. Features 1.5in armored case and protective connector.

Part Number Breakdown

• 330909: Base model (armored)
• 00: 0.0in unthreaded length
• 15: 1.5in case length
• 10: 1.0 meter cable
• 11: ClickLoc connector with protector + FluidLoc cable
• 00: No agency approvals required

Enhanced Specifications

• FluidLoc Cable Rating: IP69K submersible protection
• Chemical Resistance: Resists oils, fuels, coolants
• Cable Abrasion: 10x standard cable durability
• Vibration Tolerance: 25g peak (20-2000 Hz)
• Response Time: 1.5 ms typical

Electrical Performance

• Probe Resistance: 4.2Ω ±0.5Ω at 25°C
• Frequency Response: DC – 15 kHz (±3dB)
• Sensitivity Drift: <0.5%/100°C
• Insulation Resistance: >100MΩ at 500VDC

Mechanical Specifications

• Case Material: AISI304 stainless steel
• Armor Coverage: Full 3/8-24 UNF threading
• Torque (First 3 threads): 22.6 N•m max
• Ingress Protection: IP68 when installed
• Cable Bend Radius: 30mm minimum

Protection Features

• Armored stainless steel body
• FluidLoc™ chemical-resistant cable
• ClickLoc connector with protective sleeve
• Hermetic Viton O-ring seal

Support & Services

• 12-month performance warranty
• Global shipping: FedEx, UPS, DHL
• Technical support: 24/7 online assistance

Technical FAQ

Q: What makes FluidLoc cable special?
A: Extra-thick FEP insulation resists chemicals, oils, and high-pressure washdowns.

Q: Maximum fluid pressure rating?
A: Withstands continuous immersion at 10 bar pressure.

Q: Compatible with steam cleaning?
A: Yes, rated for intermittent steam exposure up to 125°C.

Q: Can I repair damaged cable?
A: Not field-repairable – replacement required for integrity.

Q: Chemical compatibility list available?
A: Full chemical resistance chart in product documentation.
