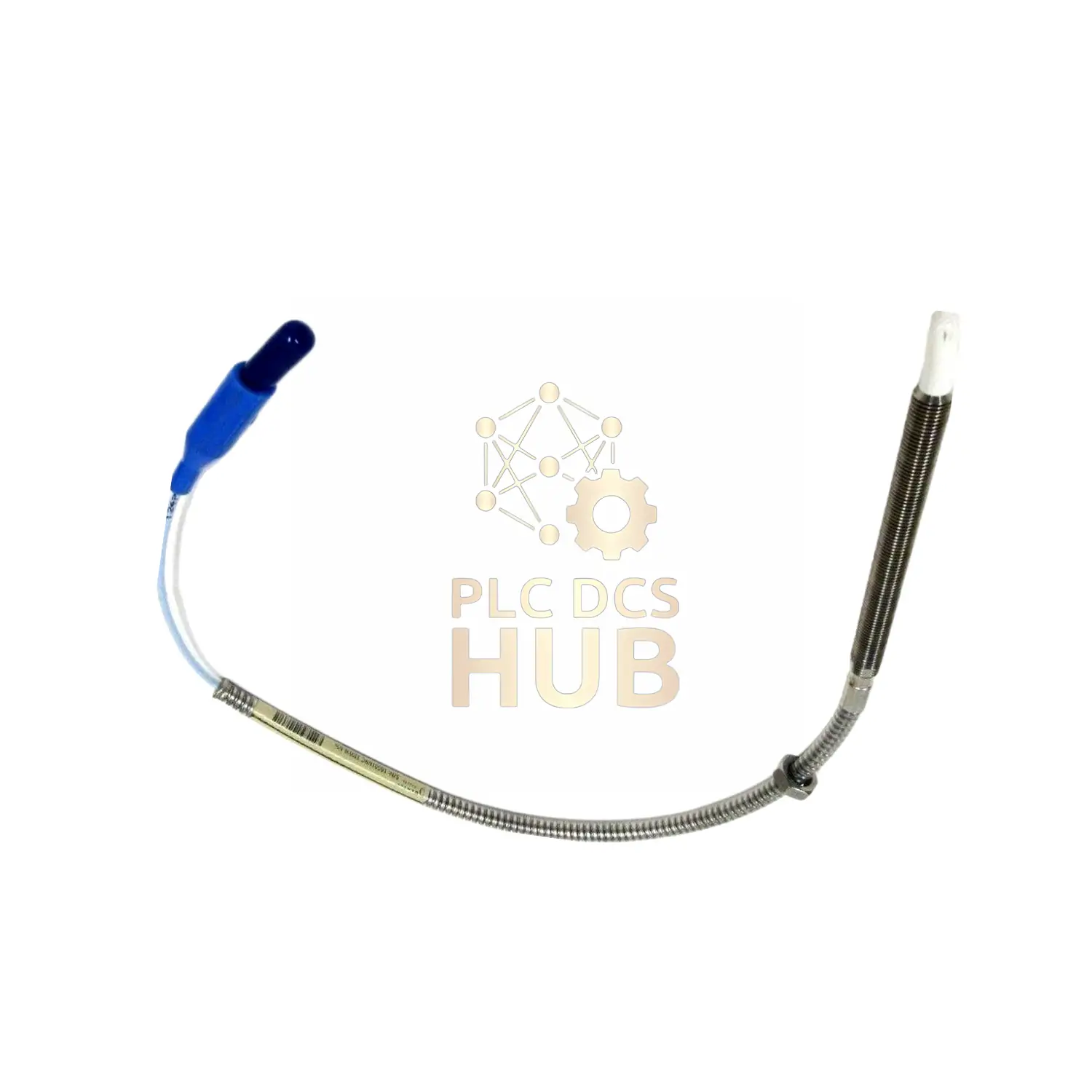

Bently Nevada 3300 NSv Probe: 2-inch Compact Sensor with 7m Cable & Connector Protector
Made in USA. Short 2-inch stainless steel probe with protective connector cover and extra-long 7-meter cable. Perfect for space-limited installations requiring extended reach.
Product Configuration Breakdown
- Base Model → 330909 (3/8-24 UNF armored probe)
- Unthreaded Section → 00: 0.0 inch
- Case Length → 20: 2.0 inch
- Cable Length → 70: 7.0 meters (23 ft)
- Connection System → 01: ClickLoc with protector
- Certifications → 00: Not required
Enhanced Technical Specifications
- Cable Protection: Reinforced connector shield
- Vibration Sensitivity: ±0.1 mil resolution
- Frequency Response: 0-10 kHz range
- Shock Resistance: 100g peak (11ms duration)
- Insulation Resistance: >100 MΩ at 500VDC
- Seal Integrity: Viton O-ring rated for 3 PSI differential
Protection Features
- Connector Guard: Impact-resistant plastic cover
- Cable Strain Relief: 50N pull strength rating
- Environmental Rating: IP65 when properly installed
- Chemical Resistance: Withstands oils and coolants
Model Comparison Guide
| Feature | Your Model 330909-00-20-70-01-00 | Long Case 330909-00-80-10-02-00 | Certified 330909-00-28-10-02-05 |
|---|---|---|---|
| Case Length | 2.0 in | 8.0 in | 2.8 in |
| Cable Length | 7.0 m | 1.0 m | 1.0 m |
| Connector | ClickLoc with protector | ClickLoc standard | ClickLoc standard |
| Special Features | Extra-long cable | Deep installation | Agency approved |
| Best For | Remote monitoring | Deep bore applications | Certified facilities |
Installation Advantages
- Space-Saving: 2-inch case fits tight compartments
- Torque Setting: 11.3 N•m (100 in•lb) recommended
- Thread Engagement: Max 0.563 inch depth
- Cold Weather Note: Avoid below -34°C for extended periods
Essential Questions
Q: What’s special about the connector protector?
A: Shields against impact and dust in harsh environments.
Q: Can I use this in confined spaces?
A: Yes, the 2-inch case is our most compact design.
Q: How does the 7m cable help?
A: Allows monitoring equipment from safe distances.
Q: Is this waterproof?
A: Weather-resistant but not submersible.
Q: What’s the lead time?
A: Ships same day via FedEx/UPS/DHL.
Q: Warranty terms?
A: 12-month coverage against defects.
