Bently Nevada – 3300 Nsv Proximity Probe 330909-00-80-05-02-00

Description

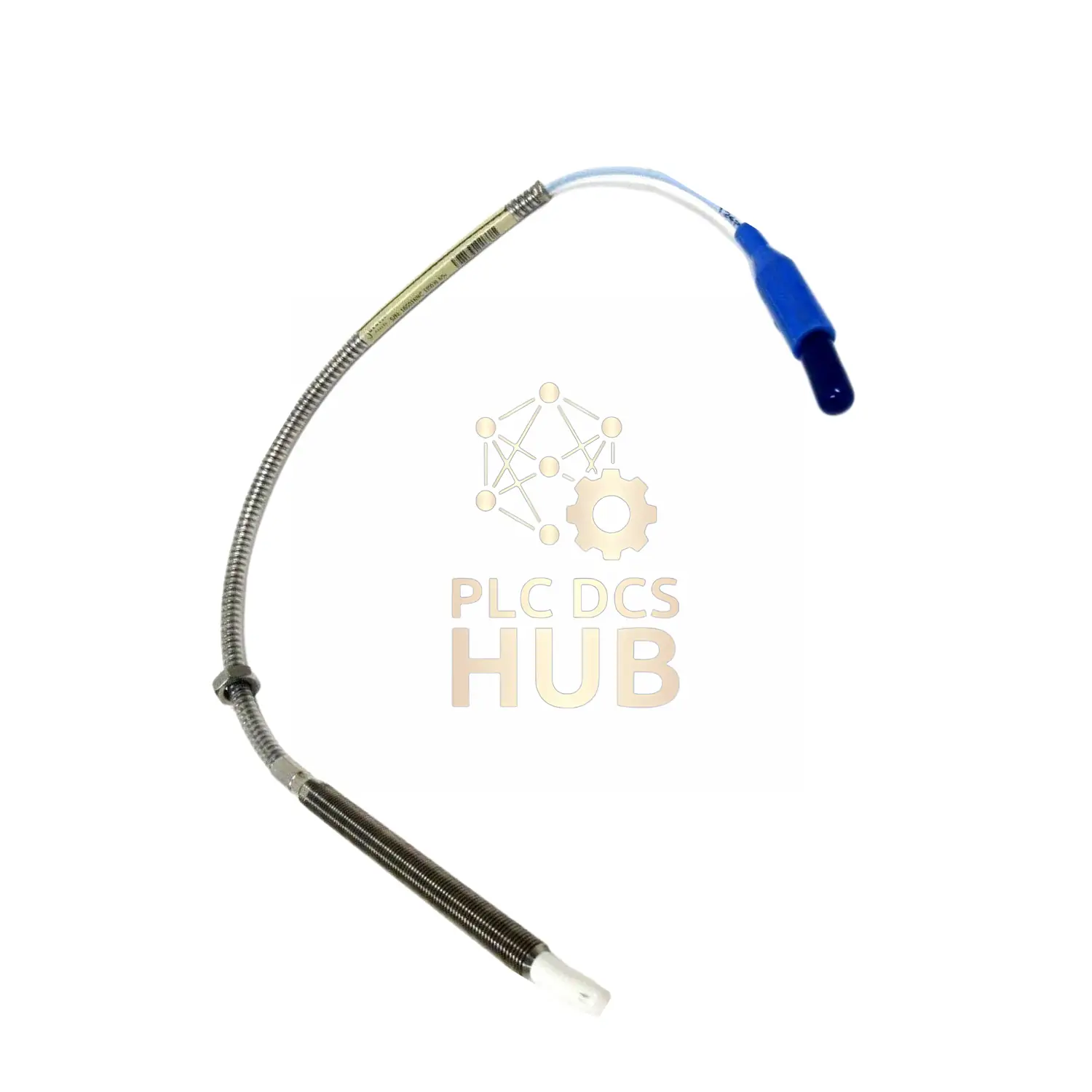

Bently Nevada 330909-00-80-05-02-00 – Extended Reach Armored Sensor

⚙️ Complete Configuration

• Brand: Bently Nevada
• Model: 3300 NSv Proximity Probe
• Full Suffix: 330909-00-80-05-02-00
• -00: Unthreaded Length = 0.0 inch
• -80: Case Length = 8.0 inches
• -05: Cable Length = 0.5 meter
• -02: ClickLoc connector + standard cable
• -00: Certifications = Not required

 Technical Specifications

• Electrical:
  • Resistance: 4.0Ω ±0.5
  • Output Signal: 75Ω coaxial
  • Cable Type: FEP insulated
• Mechanical:
  • Case Material: AISI304 stainless steel
  • Tip Material: PPS thermoplastic
  • Armor: Stainless steel protection
  • Weight: 14-150g (0.5-5.3oz)
• Environmental:
  • Operating Temp: -52°C to +177°C
  • Seal: Viton O-ring
  • Pressure: Differential sealing

 Installation Guide

• Thread: 3/8-24 UNF
• Max Torque: 33.9 N•m (full thread)
• First Threads Torque: 22.6 N•m max
• Thread Engagement: 0.563 inch maximum

 Compatibility

Works with all 3300 NSv monitoring systems. ClickLoc connector ensures secure connections.

 Certifications

No special agency approvals required (suffix -00).

 Package Contents

• 330909-00-80-05-02-00 Probe
• Installation torque guide
• Material specifications sheet

 Warranty & Shipping

• 12-month manufacturer warranty
• Global delivery: FedEx, UPS, DHL
• Tracking provided

 Frequently Asked Questions

Q: When should I choose the 8-inch case?
A: When mounting in deep cavities like turbine bearings.

Q: Can I use this in high-pressure systems?
A: Seals differential pressure only. Not pressure-tested.

Q: What’s the difference between -80 and -40 case lengths?
A: -80 = 8-inch case, -40 = 4-inch case.

Q: Is the cable armored?
A: Yes, stainless steel armor protection included.

Q: Minimum safe temperature?
A: Avoid sustained exposure below -34°C.
