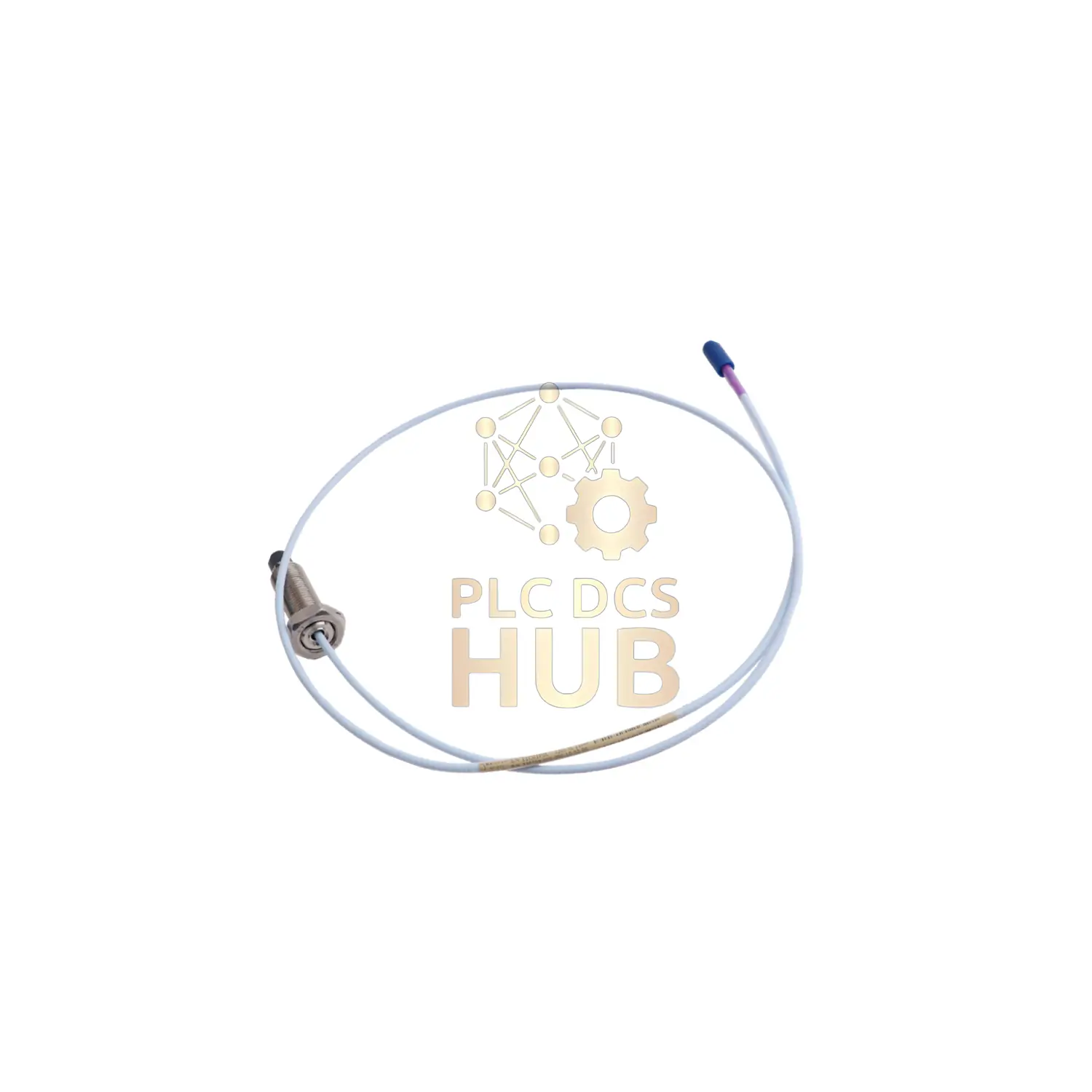

Bently Nevada 3300 XL 11mm Proximity Probe – 330709-000-050-50-12-00

Description

Product Overview

This is the Bently Nevada 330709-000-050-50-12-00 proximity probe. It is part of the reliable 3300 XL series. The probe measures shaft vibration and position. It is essential for industrial machinery health monitoring. The probe ensures your equipment runs smoothly and safely.

Key Features & Benefits

• Robust Design: Stainless steel case withstands tough industrial settings.
• Accurate Measurement: Delivers precise data for predictive maintenance.
• Easy Integration: Standard M16 thread and ClickLoc connector enable simple setup.
• Wide Compatibility: Works with 5-meter 3300 XL Proximitor sensors.
• Durable Cable: FluidLoc cable resists oils and chemicals for long life.

Complete Technical Specifications

• Brand & Model: Bently Nevada 330709-000-050-50-12-00
• Series: 3300 XL Vibration Monitoring
• Probe Diameter: 11 mm
• Measurement Principle: Inductive eddy current
• Target Requirements:
  • Minimum flat surface: 30.5 mm (1.2 in)
  • Minimum shaft diameter: 152 mm (6.0 in)
• Electrical Data:
  • Probe Resistance: 7.2 Ω ± 0.8 Ω
  • Cable Impedance: 75 Ω triaxial
  • Cable Type: FEP-insulated FluidLoc
• Temperature Range: -52°C to +177°C (Operational & Storage)
• Environmental Robustness:
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Seal Warning: Avoid below -34°C to prevent seal damage.
• Interference Resistance: Triaxial cable design minimizes cross-talk and noise.
• Physical Dimensions:
  • Unthreaded Length: 0 mm
  • Case Length: 50 mm
  • Total Cable Length: 5.0 meters (16.4 ft)
  • Connector: Miniature coaxial ClickLoc
• Thread Specification: M16 x 1.5 (Max engagement: 24 mm)
• Installation Torque:
  • Probe Case: 21.1 N•m (187 in•lb)
  • Connector: Finger tight (Max 0.565 N•m)
• Cable Bend Radius: Minimum 25.4 mm (1.0 in)

Installation Guide

• Clean the mounting hole before installation.
• Screw the probe into the M16 threaded hole by hand first.
• Use a calibrated torque wrench for final tightening. Apply 21.1 N•m maximum.
• Ensure the probe tip has a clean, flat target surface.
• Route the cable gently. Maintain the minimum bend radius.
• Connect the ClickLoc connector to the proximitor. Hand-tighten only.

Configuration & Maintenance

• Calibration with a matching 5-meter 3300 XL Proximitor is required.
• Verify gap voltage and system output during commissioning.
• Regularly inspect the cable for cuts or abrasion.
• Check the connector for secure fit and cleanliness.
• No routine maintenance is needed for the probe itself.

Compatibility Notes

• This 5.0-meter probe works only with 5-meter 3300 XL Proximitor sensors.
• It is not compatible with 1-meter or 9-meter system electronics.
• The M16 thread fits standard industry mounting holes.

Agency Approvals & Packaging

• Agency Approval: 00 (Not required for this configuration).
• Packaging List: 1 x Bently Nevada 330709 Proximity Probe.
• Warranty: 12 months from the date of purchase.

Shipping & Delivery

We ship globally using reliable carriers:

• FedEx
• UPS
• DHL

Tracking information is provided after dispatch.

Typical Applications

• Gas and Steam Turbine Vibration Monitoring
• Centrifugal and Axial Compressor Protection
• Large Motor and Pump Bearing Health Analysis
• Generator Shaft Radial Vibration and Eccentricity Measurement
• Critical Fan and Gearbox Monitoring Systems

Diagnostic Capability

This probe provides vital data for condition monitoring. It helps detect:

• Unbalanced Rotors
• Shaft Misalignment
• Rolling Element Bearing Defects
• Oil Whirl and Whip Instabilities
• Rubbing and Clearance Issues

Trending this data prevents unexpected downtime.

Frequently Asked Questions (FAQ)

What is the main use of this probe?

It measures vibration and position on rotating machinery shafts for protection systems.

Can I use a 1-meter proximitor with this 5-meter probe?

No. You must pair it with a matching 5-meter 3300 XL Proximitor sensor for correct calibration.

The installation instructions show two torque values (63.3 and 21.1 N•m). Which one is correct?

Use 21.1 N•m. The higher value is for a different, armored probe variant. Overtightening can damage the case.

My machine room gets very cold. Is this a problem?

The probe works down to -52°C. But temperatures below -34°C can damage the internal pressure seal. Consider a heated enclosure.

Can I trim the cable if it is too long?

No. Cutting the cable will change its electrical characteristics. It will make the entire probe assembly unusable.

From experience, what is the most common installation mistake?

Overtightening the connector. It only needs to be finger-tight. Using a wrench often breaks the connector latch.

How do I know if the probe is working after installation?

Check the gap voltage on your monitor. A stable voltage within the specified range confirms a good installation and target.
