Description
Description

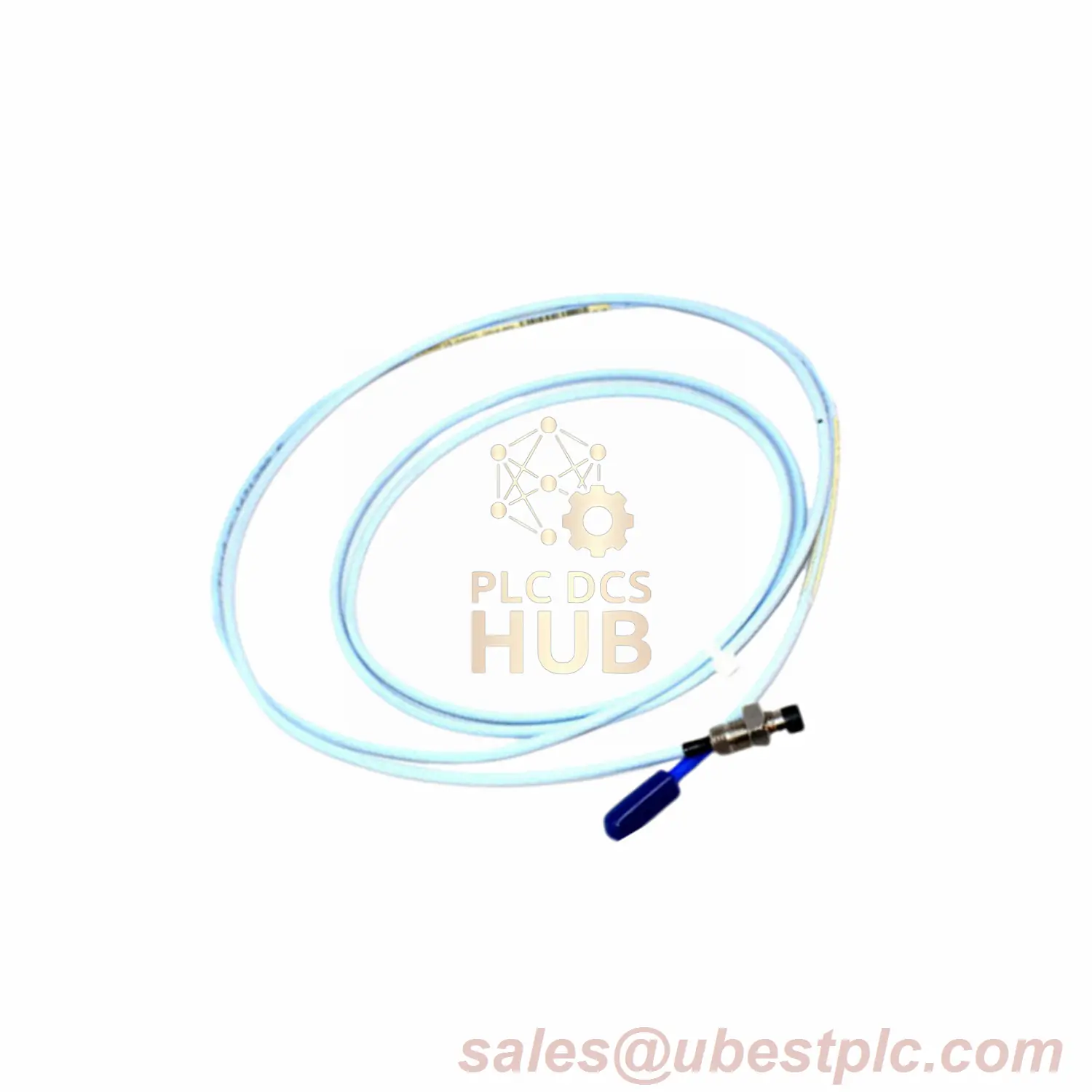

The Bently Nevada 330101-00-28-10-02-05 is a high-performance 3300 XL 8 mm vibration probe designed for industrial machinery monitoring. Featuring a robust 3/8-24 UNF thread and PPS plastic tip, it offers enhanced durability with patented TipLoc and CableLoc technologies for superior pull strength (75 lbf) and fluid resistance (optional FluidLoc).
Technical Specifications
| Parameter | Value |
|---|---|
| Brand/Model | Bently Nevada 330101-00-28-10-02-05 |
| Linear Range | 2 mm (80 mils) |
| Accuracy (ISF) | ±5% (1m/5m), ±6.5% (9m) |
| Output Signal | 7.87 V/mm (200 mV/mil) |
| Operating Temp | -62°F to +500°F |
| Material | Stainless steel case, PPS tip |
| Cable Length | 1.0m (3.3 ft) |
Installation Guide
- Mount using 3/8-24 UNF thread
- Set gap to -9 Vdc (~50 mils)
- Max cable length: 1,000 ft
Certifications
CSA | ATEX | IECEx approved for explosive atmospheres.
Packaging & Warranty
- 1x Probe, 1x Certificate of Origin (optional)
- 12-month warranty
- Shipping: FedEx/UPS/DHL (global)
Real-World Applications
- Gas turbine vibration monitoring
- Pump bearing health analysis
- Compressor shaft displacement measurement
