Deep-Reach Industrial Sentinel

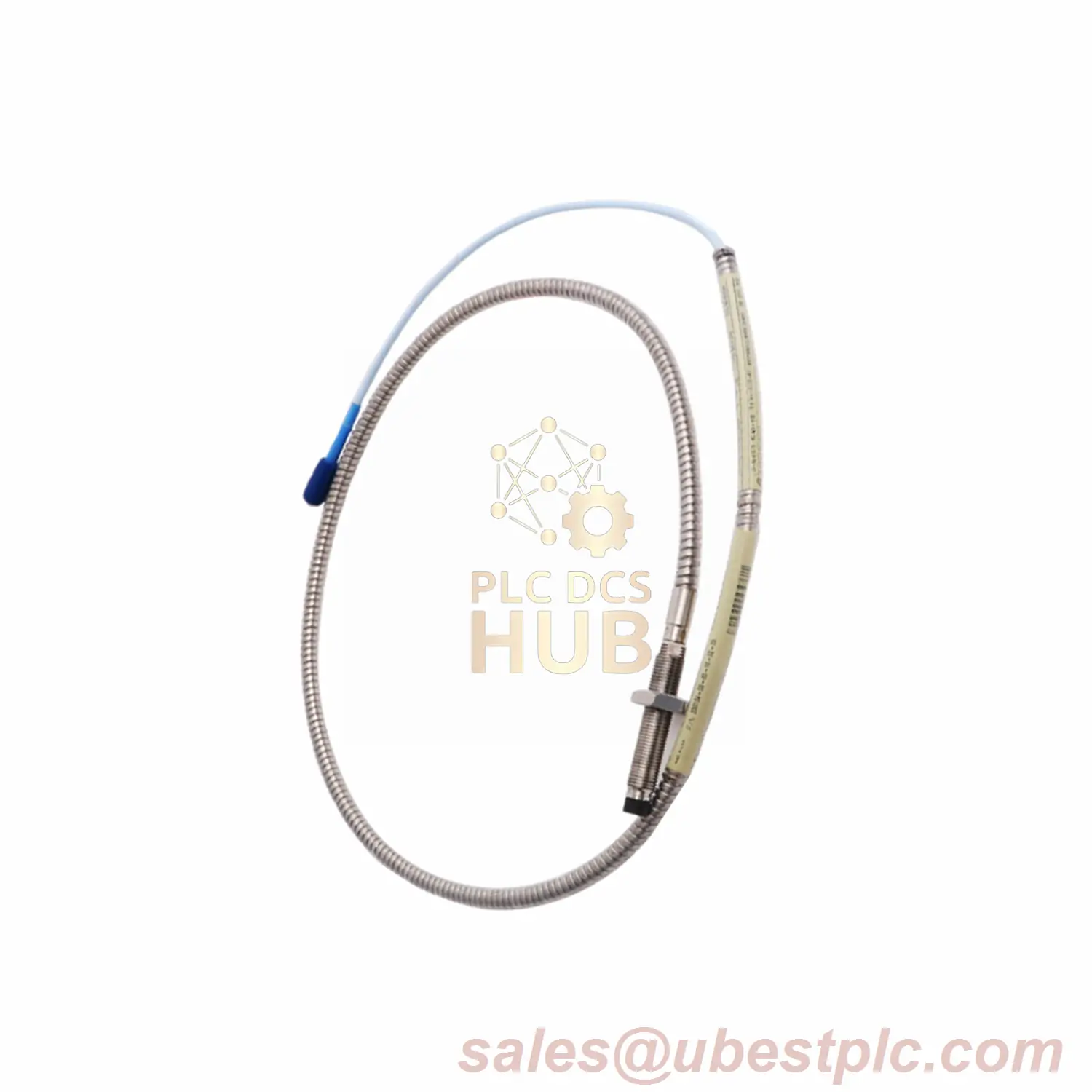

The Bently Nevada 3300 XL 8mm Probe (Model: 330101-00-43-15-02-05) features a 4.3-inch case for deep machinery access. With 1.5m cable and explosion-proof certifications, it’s built for hazardous environments. Made in USA.

Full Model Identity

330101-00-43-15-02-05

  • ???? 00: Flush Mount (0.0″ unthreaded)
  • ???? 43: 4.3″ Case (109mm)
  • ???? 15: 1.5m Cable (4.9ft)
  • 02: ClickLoc Connector
  • 05: CSA/ATEX/IECEx Certified

Technical Powerhouse

7.73Ω ±0.50
Resistance @1.5m

????️ -62°F to +500°F
Cable Temp Range

Industry Champions

  • ⛏️ Underground Mining Drills: Monitors gearbox vibration in confined shafts
  • ???? Glass Furnaces: Withstands 425°F radiant heat
  • ????️ Chemical Reactors: Certified for explosive atmospheres

Core Specifications

  • Range: 0.25-2.3mm (10-90 mils)
  • Accuracy: ±0.025mm (±1 mil)
  • Humidity: 93% for 56 days
  • Cable Weight: 11.4 oz/m
  • Warranty: 12 Months

Quick Installation Guide

  1. Use 16-24 AWG wires
  2. Set gap to 1.27mm (-9V)
  1. Max 1,000ft cable run
  2. Avoid -30°F

Package Contents

  • 8mm Probe (4.3″ case)
  • 1.5m Standard Cable

Global Support Network

???? Fast Shipping: FedEx/UPS/DHL
???? Live Chat: +86 158 8020 0923
???? sales@ubestplc.com

Additional information

Weight0.323 kg
Dimensions300 × 330 × 60 mm
