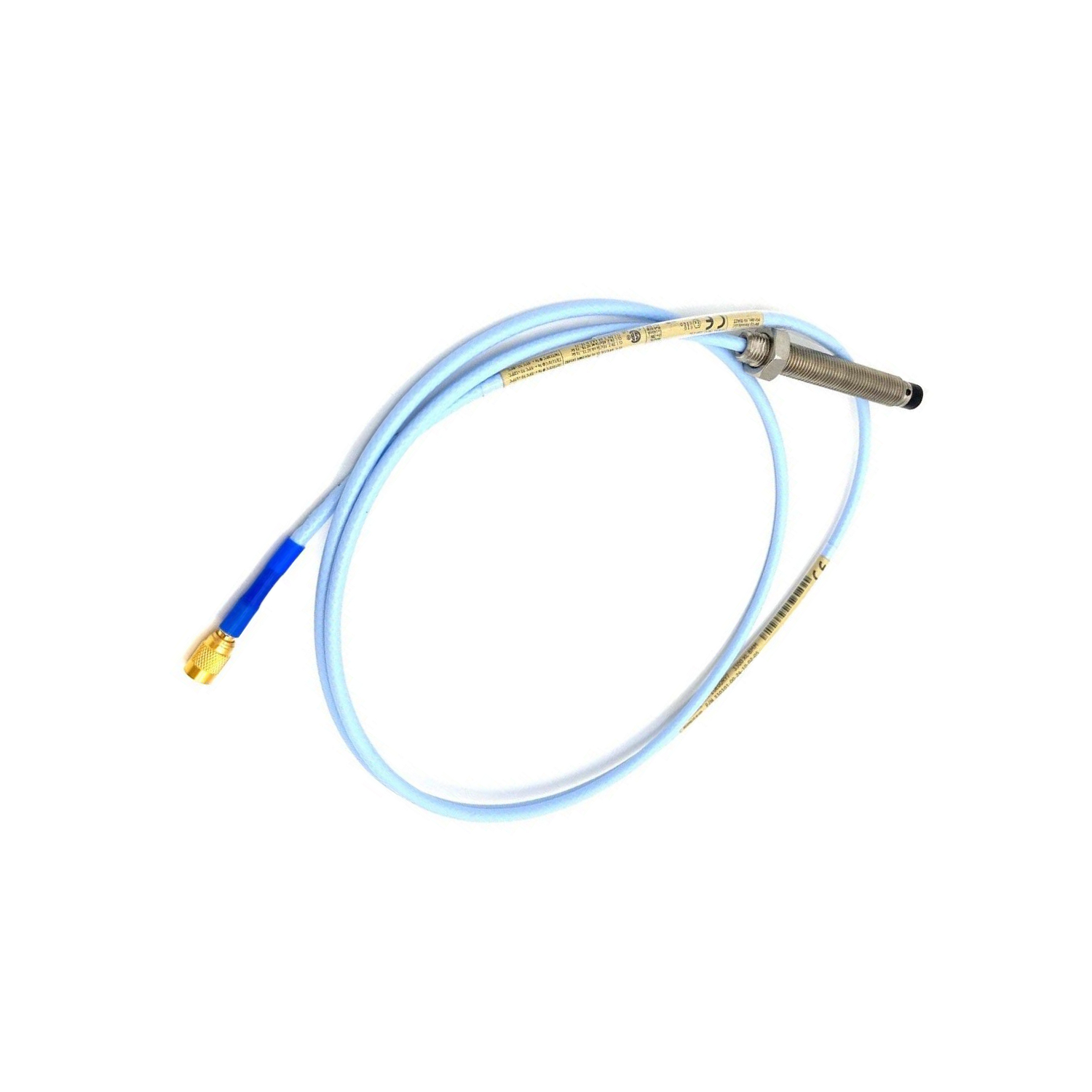

Bently Nevada – 3300 XL 8 mm Proximity Probe 330101-00-44-05-02-CN

Description

Ultra-Compact Design

Bently Nevada 330101-00-44-05-02-CN features a 4.4-inch case and 0.5m cable for tight spaces. Built with 8mm PPS tip and Viton® seal, it withstands harsh conditions while delivering precise vibration data.

Model Breakdown

• 330101-00-44-05-02-CN:
  • 00: 0.0in unthreaded
  • 44: 4.4in case
  • 05: 0.5m cable (1.6ft)
  • 02: ClickLoc connector
  • CN: Country approvals

Critical Specifications

• Resistance: 7.45Ω ±0.50 (0.5m cable)
• Temp Limits: -52°C to +218°C (tip), -51°C to +260°C (cable)
• Weight: 323g/m (11.4oz)
• Humidity Proof: <3% error after 56 days at 93% RH

Installation Tips

• Optimal gap: 1.27mm (50 mils) at -9Vdc
• Use shielded triad cable (16-24 AWG)
• Max distance from monitor: 305m

Where It Works Best

• Wind turbine gearbox monitoring
• Plastic injection molding machines
• Food processing mixer bearings
• Semiconductor manufacturing robots

What’s In Box?

• 8mm probe with 0.5m cable
• ClickLoc connector (pre-installed)

Special Note: Request pressure seal testing if needed. Email sales@ubestplc.com for details.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
