Description
Product Description

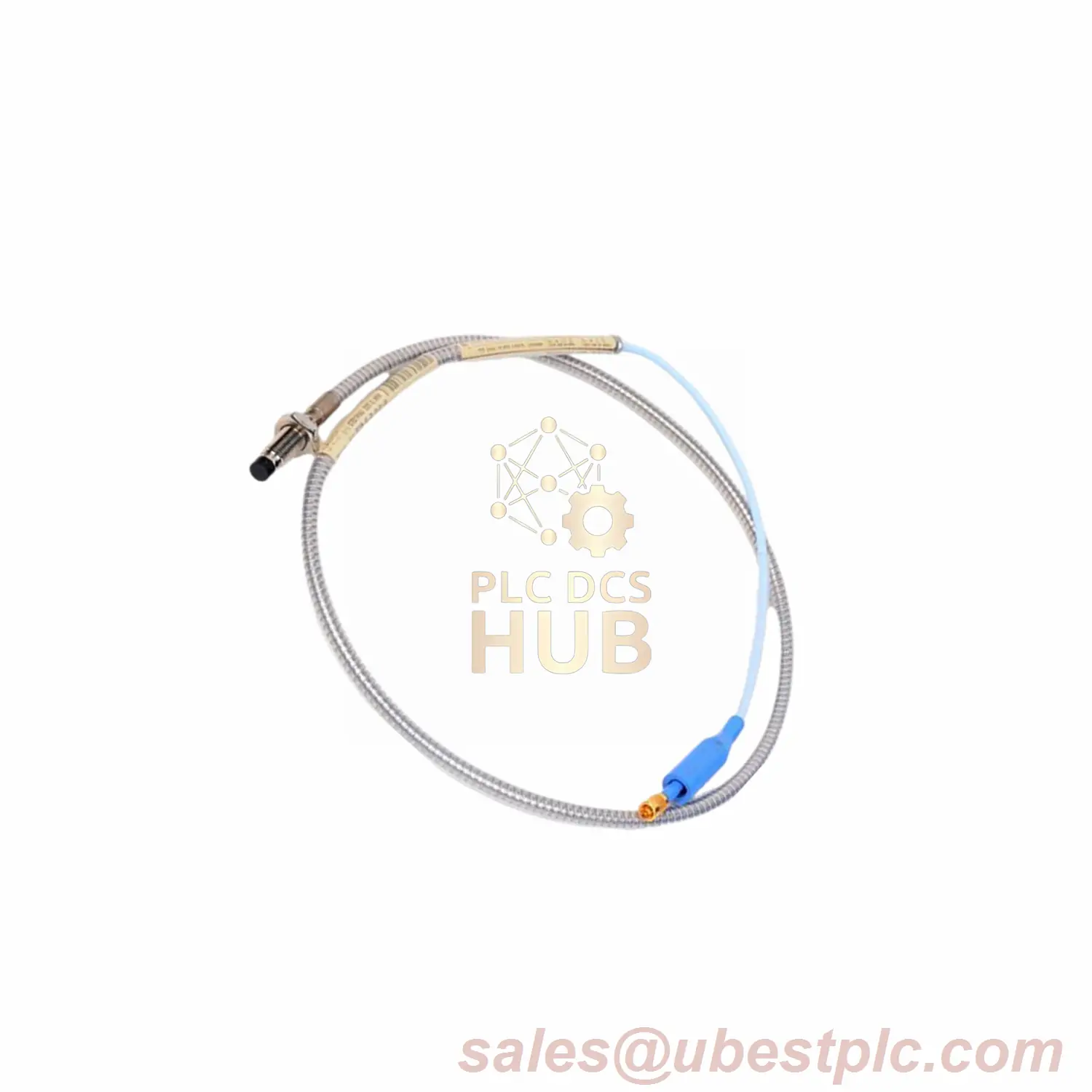

The Bently Nevada 3300 XL 8 mm Probe (P/N: 330101-29-50-10-02-CN) is a high-performance vibration sensor designed for industrial machinery. Featuring a rugged 8 mm stainless steel case and PPS plastic tip, it ensures durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Probe
- Full Suffix: 29-50-10-02-CN (Unthreaded Length: 2.9 in / Case Length: 5 in / Cable: 1.0m)
- Range: 2 mm (80 mils), linear from 0.25 mm (10 mils)
- Accuracy: ±5% (Standard 5m system)
- Output: 7.87 V/mm (200 mV/mil)
- Operating Temp: -52°C to +177°C (-62°F to +350°F)
- Resistance: 7.59Ω ±0.50 (1.0m cable)
Installation Guide
- Set radial vibration gap to -9 Vdc (~1.27 mm / 50 mils)
- Use shielded triad cable (0.2-1.5 mm² / 16-24 AWG)
- Max field wiring: 305 meters (1,000 feet)
Compatibility
Works with 3300 XL Proximitor Sensors and monitors. Supports 3/8-24 UNF threading. Avoid temperatures below -34°C (-30°F) to prevent seal damage.
Certifications
- Country-Specific Approval (CN)
- IEC 68-2-3 humidity tested
Package & Warranty
- Includes probe
- 12-month warranty against defects
Contact for inquiries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
