Description
Overview

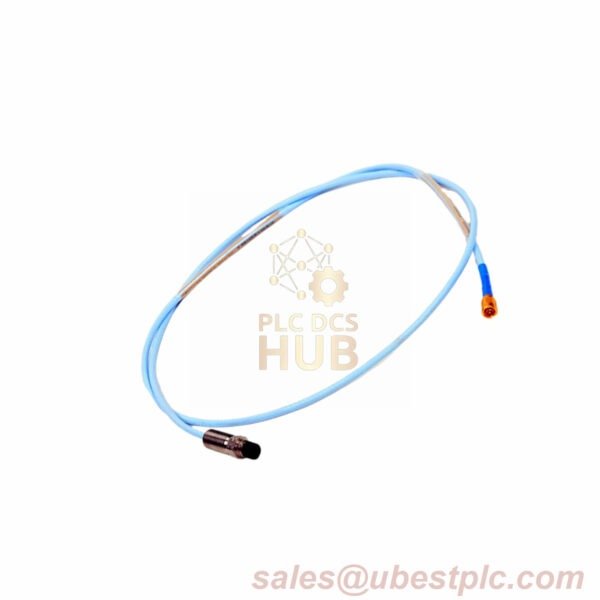

The Bently Nevada 330141 8 mm Probe (Product No. 330141-08-10-02-05) combines industrial-grade durability with explosion-proof compliance for high-risk environments. Featuring a 1.0-meter armored cable and ClickLoc connector, it ensures secure, stable connections in corrosive or high-vibration settings.
Technical Specifications
- Brand: Bently Nevada
- Model: 330141 8 mm Armored Probe
- 330141-08-10-02-05 Suffix Breakdown:
- 08: 0.8-inch armored case
- 10: 1.0-meter cable (3.3 ft)
- 02: ClickLoc connector (no protector)
- 05: CSA/ATEX/IECEx certifications
- DC Resistance: 7.63 Ω ±0.48 (1.0m)
- Scale Factor (ISF):
- Standard (1/5m): 7.89 V/mm ±4.8%
- Extended (9m): 7.89 V/mm ±6.4%
- Deviation from Straight Line (DSL):
- Standard (1/5m): < ±0.026 mm (±1.02 mil)
- Extended (9m): < ±0.039 mm (±1.54 mil)
- Materials:
- Tip: PPS plastic
- Case: AISI 310 stainless steel (heat/corrosion-resistant)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
