Description

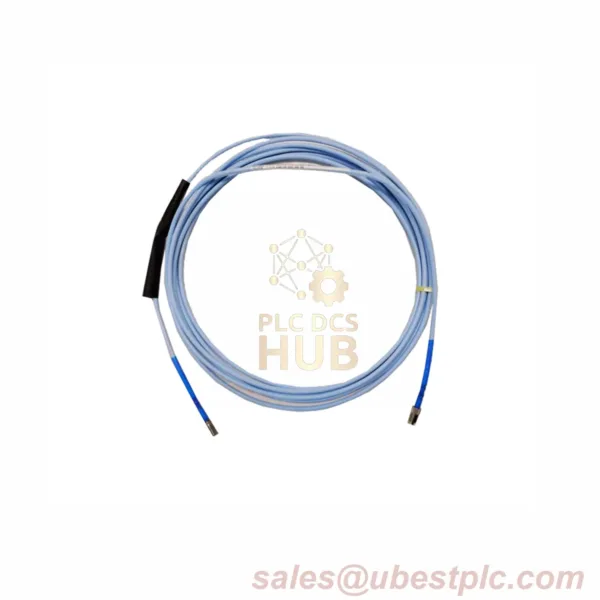

FluidLoc® Extension Cable for Oil-Sealed Machinery Monitoring
Engineered for critical oil environments, Bently Nevada’s 330130-085-10-00 features patented FluidLoc® technology that blocks turbine oil leaks through cable interiors. With gold-plated ClickLoc connectors and U.S. manufacturing, this 8.5m cable delivers uncompromised signal integrity in rotating equipment.
Complete Technical Specifications
- Brand: Bently Nevada
- Full Suffix Model: 330130-085-10-00
- Cable Technology: FluidLoc® oil-blocking armor
- Weight: 0.618 kg (103 g/m density)
- Electrical Core: 1.87Ω ±0.28 DC resistance
- Jacket Resistance: 0.56Ω ±0.11
- Voltage Range: -17.5Vdc to -26Vdc (barrier-ready)
- Current Draw: ≤12 mA
- Capacitance: 69.9 pF/m (stable signal transmission)
Advanced Connection System
- ClickLoc® Connectors: Corrosion-resistant gold plating
- Pull Strength: 330N (75 lbf) CableLoc® design
- Sealing: Viton® O-ring probe pressure seal
- Field Wiring: 0.2-1.5mm² shielded triad (305m max)
Environmental Performance
- Humidity Resistance: <3% ASF change in 93% RH (IEC 68-2-3)
- Linear Range: 0.25mm to 2.3mm from target
- Temp Stability: Optimized at +18°C to +27°C
Compatibility Matrix
- Probe Systems: 3300-series 5mm/8mm & XL 8mm
- Target Requirement: AISI 4140 steel only
- Power Systems: Non-incendive circuits per DWG 140979
What’s in Box
- 8.5m FluidLoc® armored cable
- Silicone tape kit
Logistics & Support
- Shipping: FedEx/UPS/DHL global express
- Warranty: 12-month manufacturer coverage
