Bently Nevada | 3300 XL Extension Cable 330730-040-02-00

Description

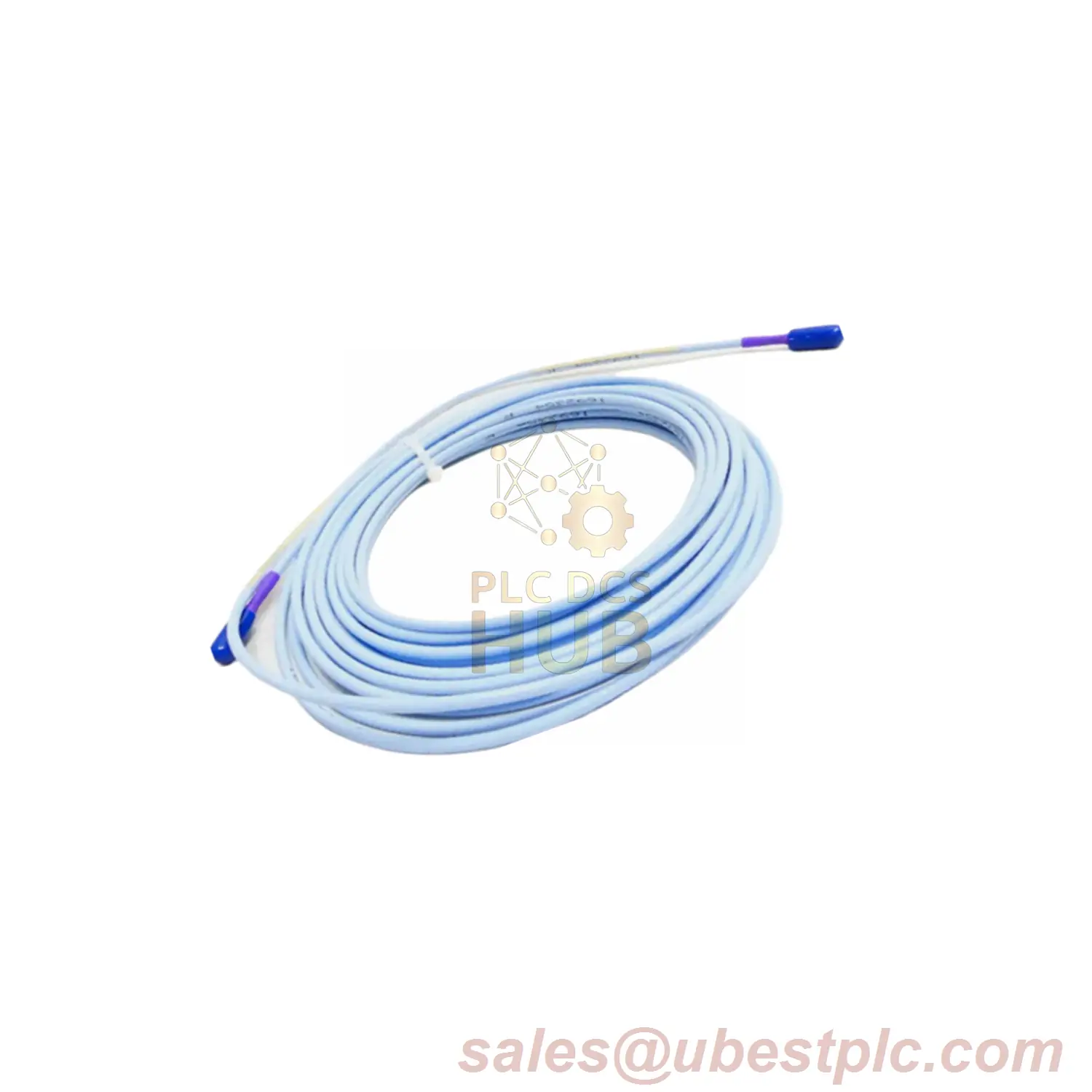

Bently Nevada 3300 XL 11mm Extension Cable: Reliable Industrial Signal Transfer

Quick Overview

4.0-meter extension cable for vibration sensors. Includes connector protector and silicone tape. Made in USA for tough industrial use.

Product Details

Full Model: 330730-040-02-00

Part Number Breakdown:

• 330730 – Base model
• 040 – 4.0 meter cable (13.1 ft)
• 02 – Standard cable + connector protector
• 00 – No agency approval needed

Technical Specifications

• Electrical:
  • Capacitance: 69.9 pF/m (21.3 pF/ft)
  • Core Resistance: 1.0Ω ±0.25Ω
  • Jacket Resistance: 0.3Ω ±0.1Ω
  • Scale Factor: 3.94 V/mm ±10%
• Physical:
  • Cable Type: 75Ω triaxial FEP
  • Connectors: Gold-plated brass
  • Pull Strength: 270 N (60 lb)
• Performance:
  • Linear Range: 0.5-4.5mm
  • Max Wiring: 305 meters
  • Weight: 0.18kg (unarmored)

Works With

• All 3300 XL 11mm probes
• ½-20, 5⁄8-18, M14, M16 threads
• Reverse mount probes (3⁄8-24 or M10)

Package & Support

• In box: Silicone tape, connector protector
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Common Questions

• Q: What’s the maximum pull force?
  A: 270 N (60 lb) at cable connectors
• Q: Can I use this in oil pumps?
  A: Yes, but use connector protector for oil areas
• Q: What calibration is included?
  A: Pre-calibrated for steel (other materials on request)
• Q: Is the cable fire-resistant?
  A: FEP insulation handles high temperatures
• Q: How flexible is the cable?
  A: Flexible stainless steel armor for tight spaces
