Bently Nevada | 3300 XL Extension Cable 330730-080-13-05

Description

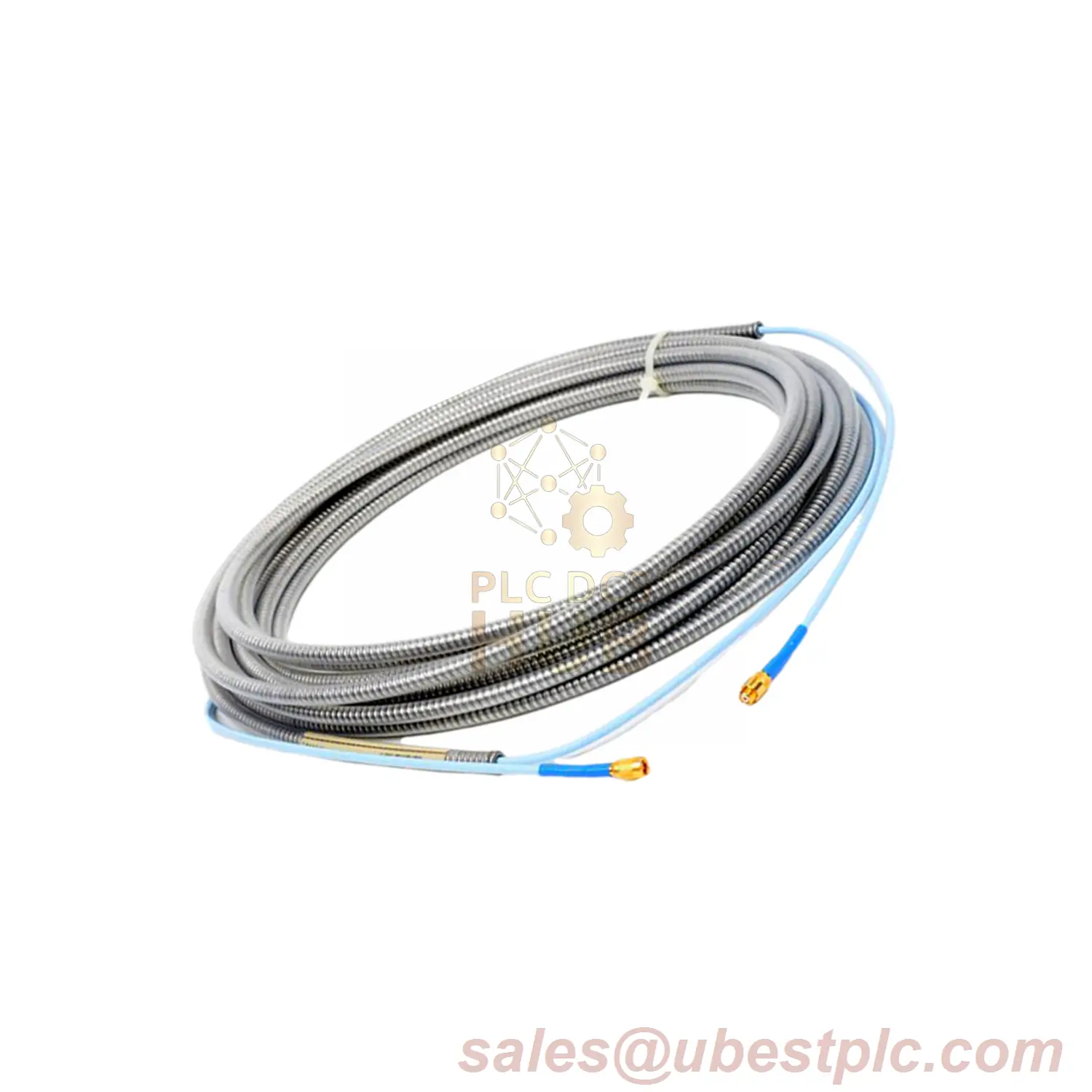

Bently Nevada 3300 XL 11mm Extension Cable: High-Performance Industrial Connectivity

Premium armored triaxial cable for critical machinery monitoring. Ensures reliable signal transmission in extreme conditions. Download the full technical manual: [Click Here]

Complete Product Identification

Base Product: 330730
├── Cable Length: 080 = 8.0 meters (26.2 ft)
├── Cable Type: 13 = Armored FluidLoc + Connector Protector
└── Approvals: 05 = Multiple Agency Certifications

Key Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11mm System
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Impedance: 75 Ω triaxial
• Temp Range: -62°F to +351°F (-52°C to +177°C)
• Insulation: Fluoroethylene Propylene (FEP)
• Armor: Flexible AISI 302 SST with FEP jacket
• Pull Strength: 330 N (75 lb) CableLoc™ design

Performance Characteristics

• Measurement Range: 4.0mm (160 mils) linear range
• Frequency Response: Signal optimized up to 305m (1000ft)
• Environmental Rating: Oil-resistant, humid environment protection
• Safety Certified: Pre-drilled safety wire holes

Installation & Compatibility

• Works with all 3300 XL 11mm probes (½-20, M14, M16 threads)
• Field wiring: 0.2-1.5mm² (16-24 AWG)
• Max system length: 305 meters (1000 feet)
• Includes silicone tape for moisture sealing

Packaging & Support

• 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
• Factory calibrated to AISI 4140 steel (custom calibrations available)

FAQ

• Q: Is armor optional?
  A: Yes, standard and armored versions available
• Q: Can I use this in oil-immersed applications?
  A: Yes, FluidLoc design prevents oil wicking
• Q: What connectors are included?
  A: Gold-plated brass ClickLoc connectors

Note: For technical drawings and installation diagrams, download our complete specification sheet: [Download Center]
